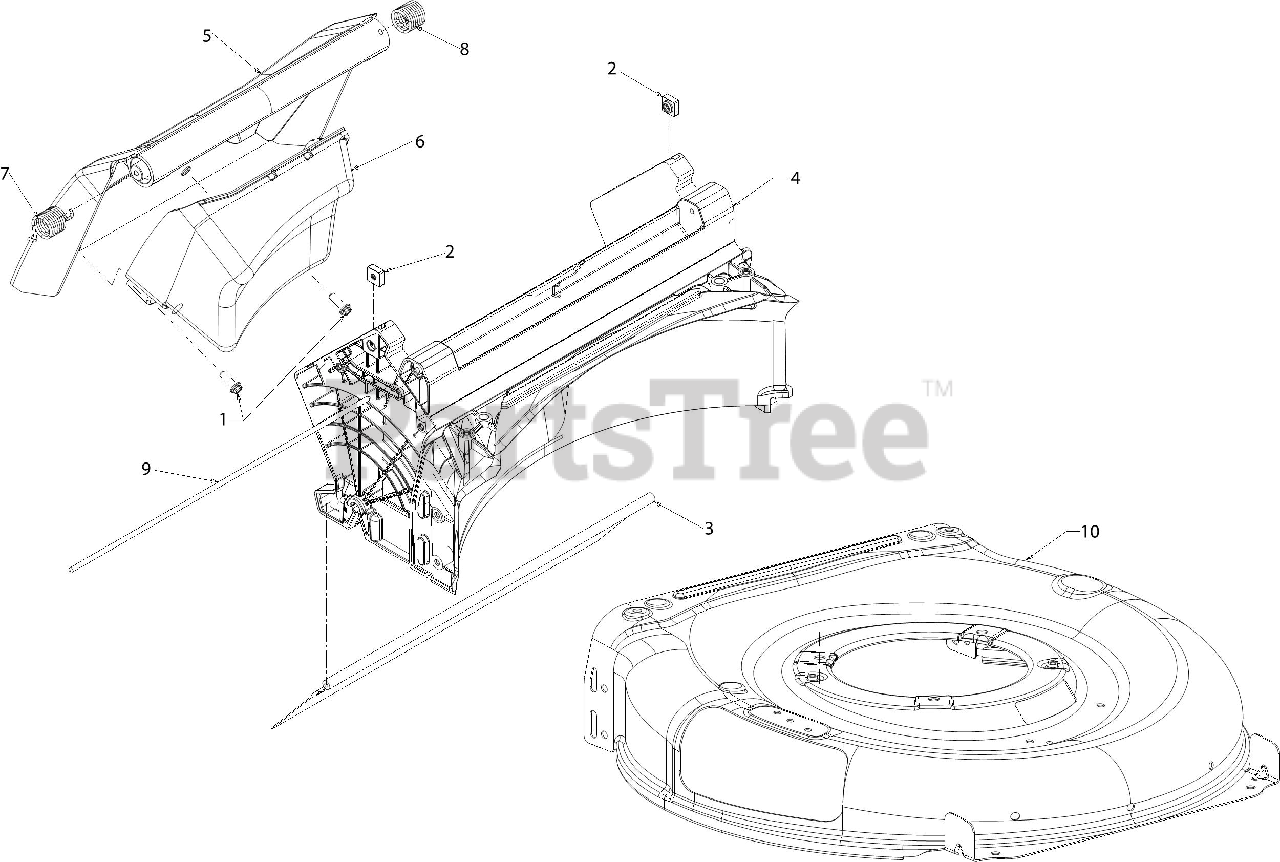

TB 610 (18BGB2C7766) - Troy-Bilt Walk-Behind Mower, Electric (2017) Deck Assembly Parts Diagram

Walk-Behind Mower, Electric

Deck Assembly Parts Diagram

  • Title

1

Troy-Bilt 710-05108

SCREW 1/4 x .750

$3.99

$

In Stock, Qty 20+

0

2

Troy-Bilt 712-05020

SQUARE LOCK NUT 1/4X20

$9.49

$

Usually ships in 3-6 days

0

3

Troy-Bilt 731-07203

TRAILSHIELD

$10.99

$

In Stock, only 2 left!

0

4

N/A

REAR BAFFLE

Note: (Not Serviceable, Order Part Number 631-05352)

$

$

Not available

5

N/A

REAR DOOR

Note: (Not Serviceable, Order Part Number 631-05352)

$

$

Not available

6

N/A

MULCH PLUG

Note: (Not Serviceable, Order Part Number 631-05352)

$

$

Not available

7

Troy-Bilt 732-05061A

TORSION SPRING (RH)
(Superseded to 732-05061B)

$5.49

$

In Stock, only 1 left!

0

8

Troy-Bilt 732-05062A

TORSION SPRING (LH)

$5.49

$

In Stock, only 1 left!

0

9

N/A

PIVOT ROD

Note: (Not Serviceable, Order Part Number 631-05352)

$

$

Not available

10

Troy-Bilt 787-01871B

21" DECK (3N1)

Note: (Choose Color When Ordering)

Variations

Troy-Bilt 787-01871B-0638

DECK-21" 3 IN 1 SP - MTD/TROY-BILT RED (0638)

$127.99

$

In Stock, only 1 left!

0

Troy-Bilt 787-01871B-0665

DECK-21" 3 IN 1 SP - YARDMAN GREEN (0665)

$127.99

$

Usually ships in 3-6 days

0

Troy-Bilt 787-01871B-0691

DECK-21" 3 IN 1 SP - BLACK JACK (0691)

$127.99

$

Usually ships in 3-6 days

0

Troy-Bilt 787-01871B-0709

DECK-21" 3 IN 1 SP - MASTERCRAFT GREEN (0709)

$127.99

$

Usually ships in 3-6 days

0

Troy-Bilt 787-01871B-4021

DECK-21" 3 IN 1 SP - CUB YELLOW 2 (4021)

$110.99

$

Usually ships in 3-6 days

0

Troy-Bilt 787-01871B-4043

DECK-21" 3 IN 1 SP - CRAFTSMAN METALLIC GRAY (4043)

$127.99

$

Usually ships in 3-6 days

0

Troy-Bilt 787-01871B-4044

DECK-21" 3 IN 1 SP - CRAFTSMAN RED (4044)

$127.99

$

Usually ships in 3-6 days

0

$102.99

$

Usually ships in 3-6 days

0

Troy-Bilt 710-04995A

SCREW 5/16-14 x .750

Note: (Not Shown)

$4.49

$

In Stock, Qty 20+

0

Troy-Bilt 631-05352

REAR DISCHARGE DOOR ASSEMBLY CORE

Note: (Not Shown)

$82.99

$

Usually ships in 3-6 days

0
