TB 6044 XP (41ADF6PC766) - Troy-Bilt String Trimmer Engine Assembly Parts Diagram

String Trimmer

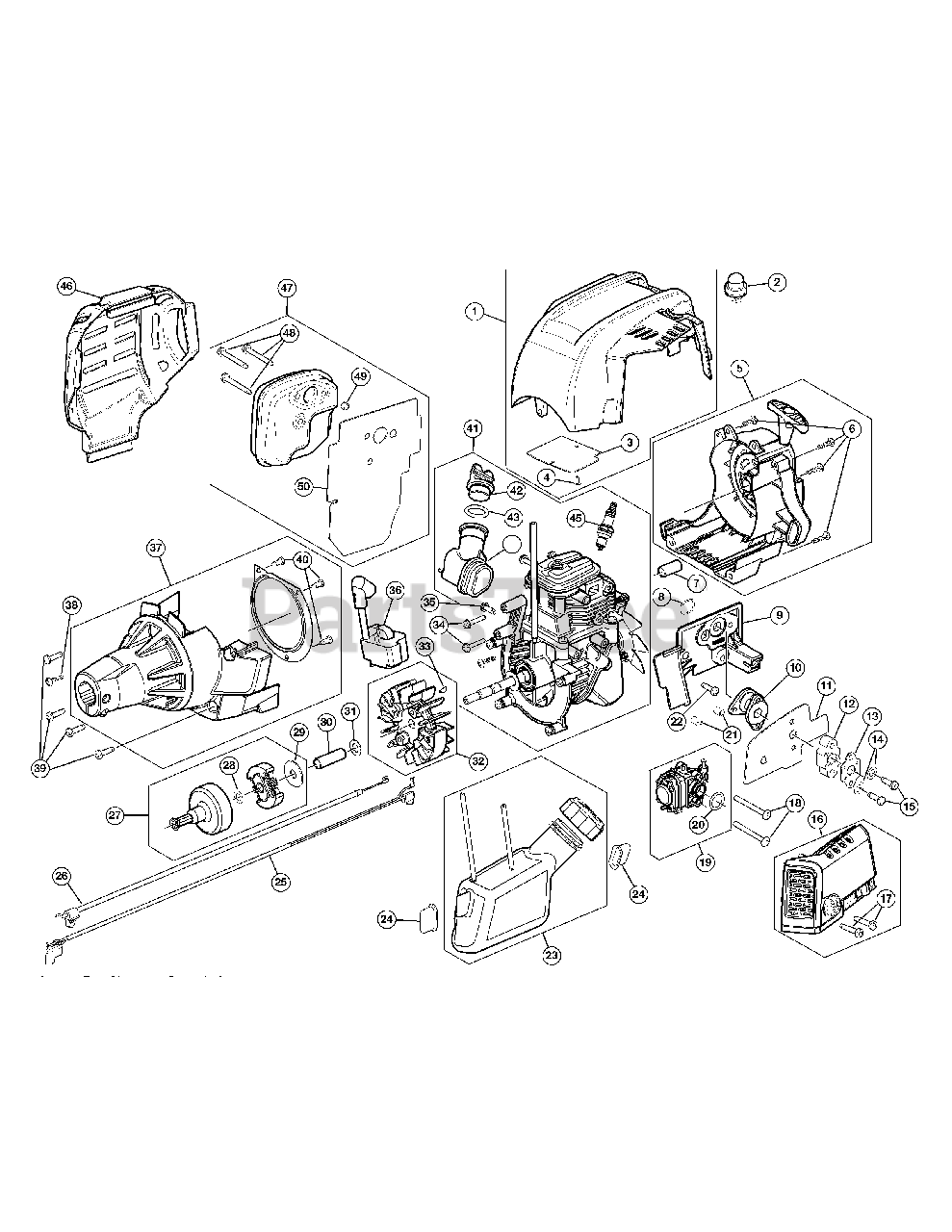

Engine Assembly Parts Diagram

  • Title

1

Troy-Bilt 753-08121

Top Housing Assembly

$13.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 731-05509

Air Purge Primer

$

$

Not available

3

Troy-Bilt 721-04637

Top Cover Gasket

$2.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 710-05279A

Screw

$2.99

$

In Stock, only 3 left!

0

5

Troy-Bilt 753-08120

Starter Housing Assembly

$27.99

$

In Stock, Qty 10

0

6

Troy-Bilt 710-04194

Screw

$4.49

$

In Stock, Qty 20+

0

7

Troy-Bilt 712-04355

Electric Start Adapter

$2.99

$

In Stock, only 3 left!

0

8

Troy-Bilt 721-04466

O-Ring

$2.49

$

Usually ships in 3-6 days

0

9

Troy-Bilt 731-08365

Intake Port

$3.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt 753-08053

Boot Assembly

$21.99

$

In Stock, only 1 left!

0

11

Troy-Bilt 721-04644

Carburetor Gasket

$2.99

$

In Stock, only 4 left!

0

12

Troy-Bilt 731-08857A

Insulator
(Superseded to 753-06938)

$3.49

$

Usually ships in 3-6 days

0

13

Troy-Bilt 791-181709

Insulator Gasket

$4.99

$

In Stock, Qty 20+

0

14

Troy-Bilt 791-182409

Washer

$4.99

$

In Stock, Qty 5

0

15

Troy-Bilt 791-181003

Screw
(Superseded to 9052-1)

$

$

Not available

16

Troy-Bilt 753-08118

Aircleaner Assembly

$14.99

$

In Stock, only 2 left!

0

17

Troy-Bilt 710-06106

Screw

$2.99

$

In Stock, Qty 9

0

18

Troy-Bilt 710-04517

Screw

$5.49

$

In Stock, Qty 20+

0

19

Troy-Bilt 753-08119

Carburetor Assembly

$45.99

$

In Stock, only 1 left!

0

20

Troy-Bilt 791-181751

O-Ring

$4.49

$

In Stock, Qty 19

0

21

Troy-Bilt 750-05471

Aircleaner Spacer

$2.99

$

In Stock, only 4 left!

0

22

Troy-Bilt 791-181003

Screw
(Superseded to 9052-1)

$

$

Not available

23

Troy-Bilt 941-031506S

Fuel Tank Assembly

$17.99

$

Usually ships in 3-6 days

0

24

Troy-Bilt 753-05259

Fuel Tank Pad

$6.99

$

In Stock, Qty 20+

0

25

Troy-Bilt 753-06167

Lead Wire
(Superseded to 794-00047A)

$5.99

$

In Stock, Qty 7

0

26

Troy-Bilt 746-05053

Thottle Cable

$5.49

$

In Stock, only 1 left!

0

27

Troy-Bilt 753-05860

Clutch Assembly

$25.99

$

In Stock, Qty 6

0

28

Troy-Bilt 791-182569

Thrust Washer
(Superseded to 6674)

$3.49

$

In Stock, only 1 left!

0

29

Troy-Bilt 9162-1

Clutch Washer

$4.49

$

In Stock, only 3 left!

0

30

Troy-Bilt 2557

Power Shaft Spacer

$2.99

$

In Stock, only 2 left!

0

31

Troy-Bilt 936-0314

Thrust Washer
(Superseded to 736-0314)

$

$

Not available

32

Troy-Bilt 753-06246

Flywheel Assembly

$21.99

$

In Stock, only 1 left!

0

33

Troy-Bilt 914-04016

Key

$4.49

$

In Stock, Qty 10

0

34

Troy-Bilt 7826

Screw

$2.49

$

Usually ships in 3-6 days

0

35

Troy-Bilt 791-181020

Screw
(Superseded to 9054)

$4.49

$

In Stock, only 4 left!

0

36

Troy-Bilt 725-06013

Module Assembly
(Superseded to 753-08210)

$37.99

$

In Stock, only 1 left!

0

37

Troy-Bilt 753-08056

Clutch Cover Assembly

$

$

Not available

38

Troy-Bilt 710-04194

Screw

$4.49

$

In Stock, Qty 20+

0

39

Troy-Bilt 710-04604

Screw

$4.49

$

In Stock, Qty 20+

0

40

Troy-Bilt 1755

Screw

$3.99

$

Usually ships in 3-6 days

0

41

Troy-Bilt 941-012023S

Shortblock Assembly

$139.99

$

Usually ships in 3-6 days

0

42

Troy-Bilt 731-08920-9

Oil Fill Plug
(Superseded to 731-08920A-9)

$2.99

$

In Stock, only 2 left!

0

43

Troy-Bilt 721-04509

O-Ring

$2.99

$

In Stock, only 4 left!

0

44

Troy-Bilt 941-031509S

Oil Fill Tube
(Superseded to 753-08204)

$11.99

$

In Stock, only 4 left!

0

45

Troy-Bilt 794-00043

Spark Plug
(Superseded to 794-00082)

$7.49

$

In Stock, Qty 6

0

46

Troy-Bilt 731-08903T-1

Muffler Housing
(Superseded to 753-08338)

$6.99

$

In Stock, only 1 left!

0

47

Troy-Bilt 753-08115

Muffler Assembly

$

$

Not available

48

Troy-Bilt 710-04487

Screw
(Superseded to 710-04809)

$3.49

$

In Stock, Qty 5

0

49

MTD 750-06057

Aircleaner Spacer

$

$

Not available

50

Troy-Bilt 721-04633

Muffler Gasket

$4.99

$

Usually ships in 3-6 days

0

Troy-Bilt 49M2027P966

Electric Starter

Note: (Optional Accessory)(not shown)

$65.99

$

In Stock, Qty 6

0

Troy-Bilt 49MESCBP966

Engine Start Bit
(Superseded to 49MASCBP966)

Note: (Optional Accessory)(not shown)

$19.99

$

In Stock, Qty 9

0

Troy-Bilt 49MRBESY966

Cordless Electric Starter
(Superseded to 49MRBESY953)

Note: (Optional Accessory)(not shown)

$

$

Not available
