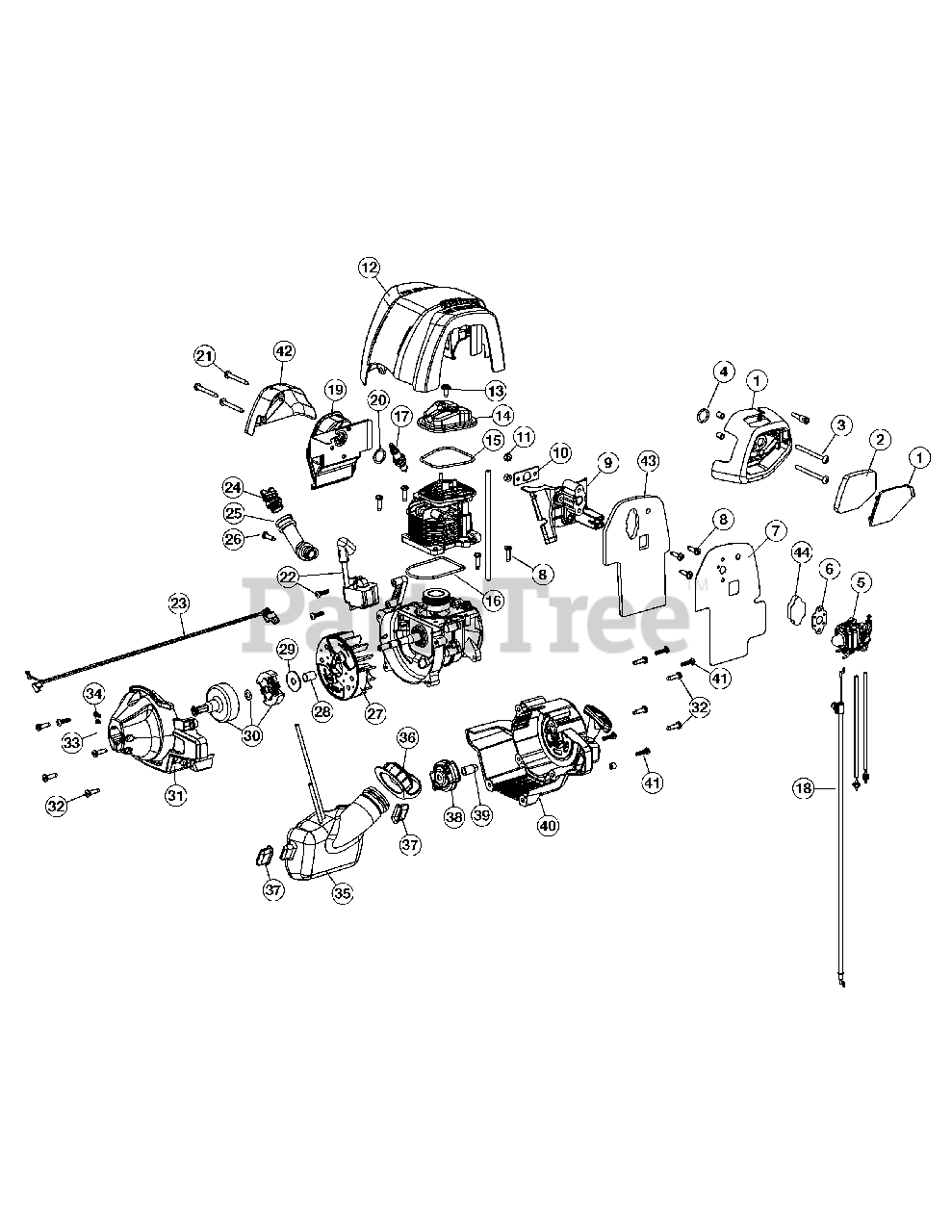

TB 6042 XP (41ADZ4PC966) - Troy-Bilt String Trimmer Engine Assembly Parts Diagram

String Trimmer

Engine Assembly Parts Diagram

  • Title

1

Troy-Bilt 753-06084

Air Cleaner Assembly

Note: (Incl. Ref No. 2)

$11.99

$

In Stock, only 1 left!

0

2

Troy-Bilt 753-06085

Air Filter

$3.49

$

In Stock, Qty 15

0

3

Troy-Bilt 753-06939

Screw

$3.49

$

In Stock, only 3 left!

0

4

Troy-Bilt 791-181751

Carburetor O-Ring

$4.49

$

In Stock, Qty 20+

0

5

Troy-Bilt 753-06083

Carburetor Assembly

$52.99

$

In Stock, only 1 left!

0

6

Troy-Bilt 791-181709

Carburetor Gasket

$4.99

$

In Stock, Qty 20+

0

7

Troy-Bilt 753-06082

Carburetor Baffle

$3.99

$

In Stock, Qty 6

0

8

Troy-Bilt 791-181003

Screw
(Superseded to 9052-1)

$

$

Not available

9

Troy-Bilt 753-05904

Insulator

$8.49

$

Usually ships in 3-6 days

0

10

Troy-Bilt 753-05673

Insulator Gasket

$10.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 712-04099

Nut

$6.99

$

Usually ships in 3-6 days

0

12

Troy-Bilt 753-06940

Engine Cover

$10.99

$

Usually ships in 3-6 days

0

13

Troy-Bilt 791-181025

Screw

$2.99

$

Usually ships in 3-6 days

0

14

Troy-Bilt 753-05901

Valve Cover

$8.49

$

Usually ships in 3-6 days

0

15

Troy-Bilt 753-05902

Valve O-Ring

$5.49

$

In Stock, only 2 left!

0

16

Troy-Bilt 753-05910

Cylinder O-Ring

$3.49

$

In Stock, only 1 left!

0

17

Troy-Bilt 794-00043

Spark Plug
(Superseded to 794-00082)

$7.49

$

In Stock, only 4 left!

0

18

Troy-Bilt 753-06941

Throttle Cable
(Superseded to 753-06166)

$15.99

$

In Stock, only 1 left!

0

19

Troy-Bilt 753-06334

Muffler Assembly

$17.99

$

Usually ships in 3-6 days

0

20

Troy-Bilt 753-05244

Muffler Gasket

$5.99

$

In Stock, Qty 8

0

21

Troy-Bilt 710-04487

Muffler Bolt
(Superseded to 710-04809)

$3.49

$

In Stock, only 1 left!

0

22

Troy-Bilt 753-05907

Module Assembly

$52.99

$

In Stock, only 1 left!

0

23

Troy-Bilt 753-06167

Lead Wires
(Superseded to 794-00047A)

$5.99

$

In Stock, Qty 7

0

24

Troy-Bilt 753-05400

Oil Plug Assembly
(Superseded to 753-05408)

$29.99

$

In Stock, only 1 left!

0

25

Troy-Bilt 753-06087

Oil Fill Tube Assembly

Note: (includes 26)

$6.49

$

In Stock, Qty 7

0

26

Troy-Bilt 710-04604

Screw

$4.49

$

In Stock, only 3 left!

0

27

Troy-Bilt 753-06493

Flywheel

$

$

Not available

28

Troy-Bilt 753-05814

Spacer

$4.49

$

In Stock, Qty 7

0

29

Troy-Bilt 9162-1

Clutch Washer

$4.49

$

In Stock, only 3 left!

0

30

Troy-Bilt 753-05860

Clutch Assembly

$25.99

$

In Stock, Qty 10

0

31

Troy-Bilt 753-06335

Clutch Cover Assembly

$5.49

$

In Stock, only 3 left!

0

32

Troy-Bilt 710-04604

Screw

$4.49

$

In Stock, only 3 left!

0

33

Troy-Bilt 791-182519

Anti Rotation Screw

$4.99

$

Usually ships in 3-6 days

0

34

Troy-Bilt 753-04291

Clamp Screw & Nut

$

$

Not available

35

Troy-Bilt 753-06093

Fuel Tank

Note: (Incl. Ref No. 36)

$23.99

$

In Stock, only 1 left!

0

36

Troy-Bilt 753-05289

Fuel Cap

$22.99

$

In Stock, Qty 8

0

37

Troy-Bilt 753-05259

Fuel Tank Pad

$6.99

$

In Stock, Qty 20+

0

38

Troy-Bilt 753-06091

Pawl Assembly

$9.49

$

In Stock, only 1 left!

0

39

Troy-Bilt 753-06104

Electric Start Adapter

$4.49

$

In Stock, Qty 7

0

40

Troy-Bilt 753-06108

Starter Cover Assembly

$29.99

$

In Stock, Qty 18

0

41

Troy-Bilt 710-04194

Screw

$4.49

$

In Stock, Qty 20+

0

42

Troy-Bilt 753-06101

Muffler Shield

$5.99

$

Usually ships in 3-6 days

0

43

Troy-Bilt 753-06122

Carburetor Heat Shield

$5.49

$

Usually ships in 3-6 days

0

44

Troy-Bilt 753-06938

Insulator

$3.49

$

Usually ships in 3-6 days

0

Troy-Bilt 753-06494

Short Block Assembly

Note: (not shown)

$130.99

$

In Stock, only 1 left!

0

Troy-Bilt 625-04120

Electric Start

Note: (not shown) (optional)

$77.99

$

Usually ships in 3-6 days

0

Troy-Bilt 49MESCBP953

Start Bit
(Superseded to 49MASCBP953)

Note: (not shown) (optional)

$20.99

$

In Stock, only 3 left!

0
