TB 6040 XP (41ED604C966) - Troy-Bilt String Trimmer General Assembly Parts Diagram

String Trimmer

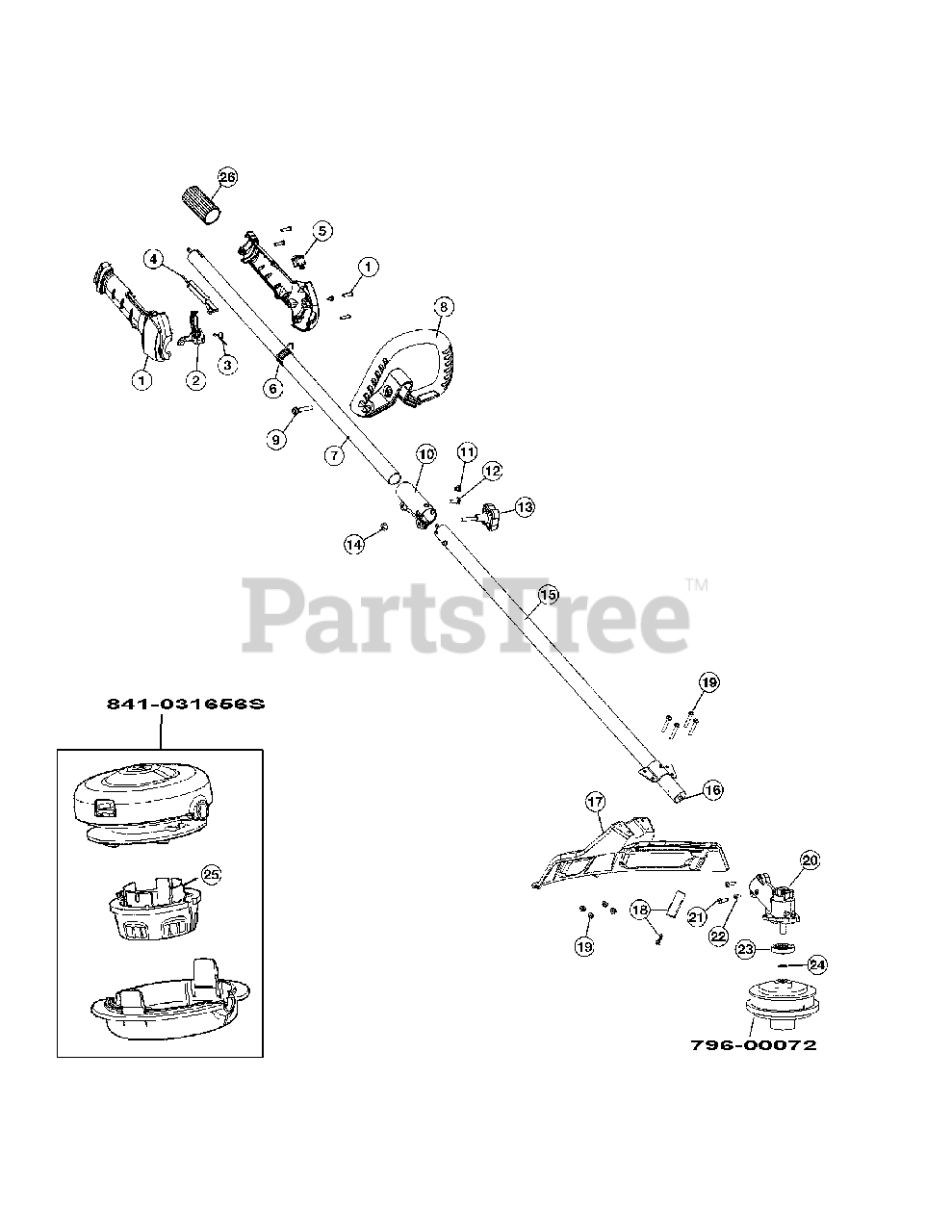

General Assembly Parts Diagram

  • Title

1

Troy-Bilt 753-05296

Throttle Housing Assembly
(Superseded to 753-09645)

Note: (Incl. Ref No. 2-5)

$12.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 731-04970A-2

Throttle Trigger
(Superseded to 731-04970B-10)

$9.49

$

In Stock, Qty 20+

0

3

Troy-Bilt 753-05007

Spring

$5.49

$

In Stock, only 3 left!

0

4

Troy-Bilt 731-04971-2

Throttle Lock-out
(Superseded to 731-04971C-10)

$5.49

$

In Stock, only 1 left!

0

5

Troy-Bilt 791-182405

Switch

$10.99

$

In Stock, Qty 12

0

6

Troy-Bilt 791-610327

Shoulder Strap Clip

$32.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt 753-04236

Upper Drive Shaft Housing Assembly

$94.99

$

In Stock, Qty 5

0

8

Troy-Bilt 753-06039

D-Handle Assembly

Note: (Incl. Ref No. 9)

$11.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 753-06040

Bolt

$6.99

$

In Stock, only 1 left!

0

10

Troy-Bilt 753-1190

Split Boom Coupler

Note: (Incl. Ref No. 11-14)

$23.99

$

In Stock, only 1 left!

0

11

Troy-Bilt 791-182057

Coupler Anti-Rotation Screw

$4.49

$

In Stock, only 3 left!

0

12

Troy-Bilt 791-181617

Screw

$5.49

$

In Stock, Qty 11

0

13

Troy-Bilt 791-181981

Adjustment Knob
(Superseded to 697-00661-9)

$

$

Not available

14

Troy-Bilt 712-04018A

Knob Retaining Nut

$4.49

$

In Stock, Qty 5

0

15

Troy-Bilt 753-08164

Lower Drive Shaft Housing Assembly

$20.99

$

In Stock, Qty 20+

0

16

Troy-Bilt 753-05267

Lower Flexible Drive Shaft

$42.99

$

In Stock, only 1 left!

0

17

Troy-Bilt 753-05820

Shield Assembly

Note: (Incl. Ref No. 18)

$24.99

$

In Stock, only 3 left!

0

18

Troy-Bilt 753-05821

Blade Assembly

$9.49

$

Usually ships in 3-6 days

0

19

Troy-Bilt 753-05822

Shield Mounting Screw & Nut

$6.99

$

Usually ships in 3-6 days

0

20

Troy-Bilt 791-182193

Gearbox

$99.99

$

In Stock, only 2 left!

0

21

Troy-Bilt 791-182195

Gearbox Mounting Hardware

$7.49

$

In Stock, Qty 20+

0

22

Troy-Bilt 791-182519

Anti-Rotation Screw

$4.99

$

In Stock, only 2 left!

0

23

Troy-Bilt 791-182196

Blade Driver

$22.99

$

In Stock, only 1 left!

0

24

Troy-Bilt 753-04348

Palnut

$6.99

$

In Stock, only 3 left!

0

25

Troy-Bilt 753-08163

Bump Knob

$3.49

$

In Stock, Qty 19

0

26

Troy-Bilt 753-06168

Grip Spacer

Note: (If equipped)

$

$

Not available

841-031656S

Troy-Bilt 841-031656S

Cutting Head Assembly
(Superseded to 841-032392S)

Note: (replaces 796-00072) (includes 25)

$23.99

$

In Stock, only 2 left!

0

796-00072

Troy-Bilt 796-00072

Cutting Head Assembly
(Superseded to 841-032392S)

$23.99

$

In Stock, only 2 left!

0

Troy-Bilt 49U2341K953

Round Line-.095, 40' Trimmer Line

Note: (Optional Accessory)(not shown)

$

$

Not available

Troy-Bilt WLM-195

Maxi Edge .095, 200' Trimmer Line

Note: (Optional Accessory)(not shown)

$14.99

$

In Stock, only 4 left!

0

Troy-Bilt 49M2027P966

Electric Starter

Note: (Optional Accessory)(not shown)

$65.99

$

In Stock, Qty 6

0

Troy-Bilt 49MESCBP966

Engine Start Bit
(Superseded to 49MASCBP966)

Note: (Optional Accessory)(not shown)

$19.99

$

In Stock, Qty 9

0

Troy-Bilt 49MRBESY966

Cordless Electric Starter
(Superseded to 49MRBESY953)

Note: (Optional Accessory)(not shown)

$

$

Not available
