TB 592 (25A-592A063) - Troy-Bilt Edger (2003) Drive Assembly Parts Diagram

Edger

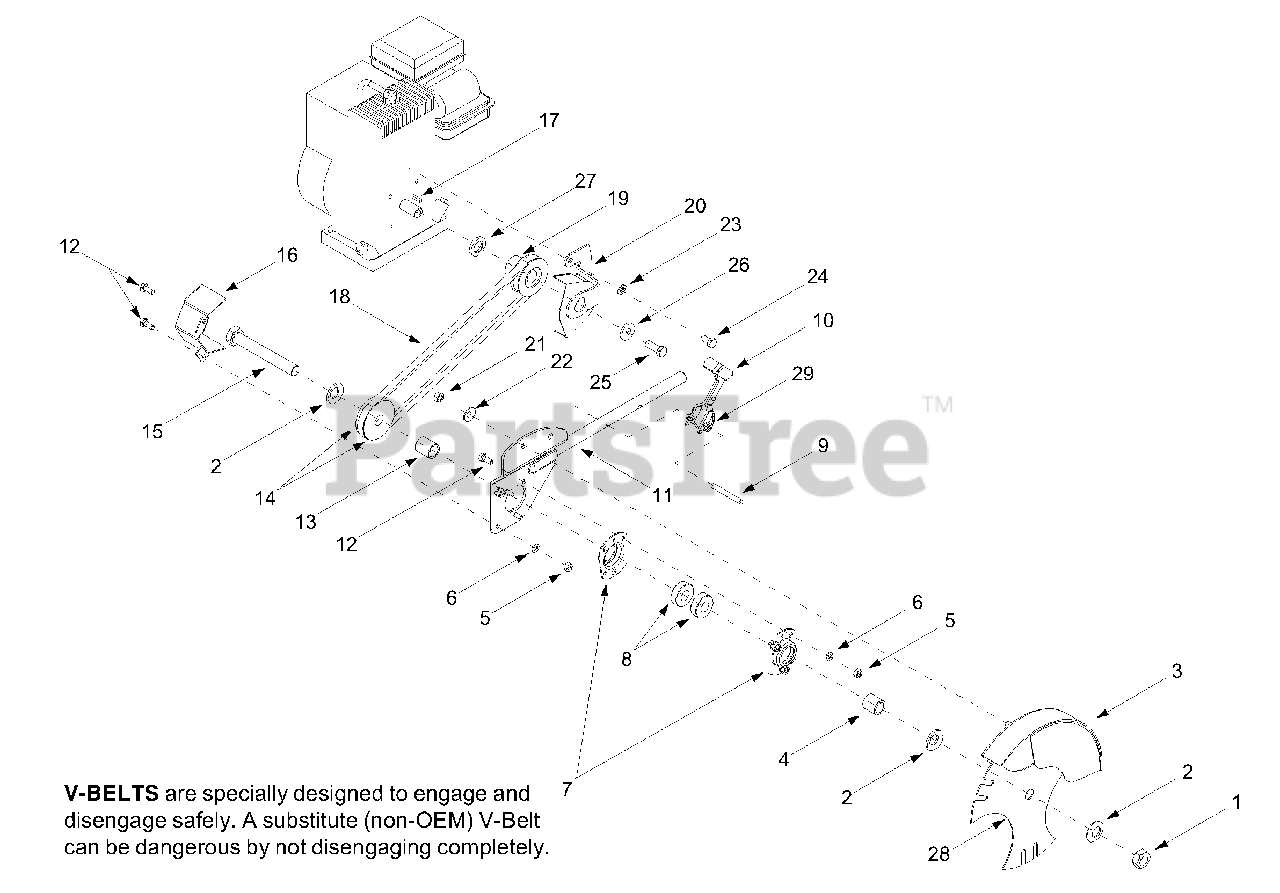

Drive Assembly Parts Diagram

  • Title
1

Troy-Bilt 712-0413

Hex Jam Nut, 5/8-18

$6.49

$

In Stock, only 1 left!

0

2

Troy-Bilt 736-0317

Bell Washer, .64 x 1.25 x .18

$7.99

$

In Stock, Qty 20+

0

3

MTD 781-0076

Blade Guard

Variations

Troy-Bilt 781-0076-0637

GUARD ASSEMBLY (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

Troy-Bilt 781-0076-0483

GUARD ASSEMBLY - CHARCOAL GRAY (0483)

$

$

Not available

Troy-Bilt 781-0076-0498

GUARD ASSEMBLY - OLD CUB YELLOW (0498)

$

$

Not available

Troy-Bilt 781-0076-0638

GUARD ASSEMBLY - MTD/TROY-BILT RED (0638)

$

$

Not available

Troy-Bilt 781-0076-0650

GUARD ASSEMBLY - RED METALLIC (0650)

$

$

Not available

Troy-Bilt 781-0076-0662

GUARD ASSEMBLY - OYSTER GRAY (0662)

$

$

Not available

Troy-Bilt 781-0076-0665

GUARD ASSEMBLY - YARDMAN GREEN (0665)

$

$

Not available

Troy-Bilt 781-0076-0667

GUARD ASSEMBLY - MIDNIGHT BLUE (0667)

$

$

Not available

Troy-Bilt 781-0076-0716

GUARD ASSEMBLY - CUB YELLOW-99 (0716)

$

$

Not available

$

$

4

Troy-Bilt 750-0118

Sleeve, .632 x .875 x .90
(Superseded to 950-0118)

$

$

Not available

5

Troy-Bilt 712-0287

Hex Nut, 1/4-20
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

6

Troy-Bilt 736-0329

Lock Washer, 1/4
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

7

MTD 05034A

Bearing Housing

$

$

Not available

8

Troy-Bilt 741-0155

Ball Bearing, .62 x 1.38 x .44
(Superseded to 941-0155)

$23.99

$

In Stock, Qty 15

0

9

Troy-Bilt 715-0121

Spirol Pin, 1/4 x 2.0

$6.99

$

In Stock, Qty 8

0

10

Troy-Bilt 781-0093

Adjustment Lever Assembly
(Superseded to 981-0093)

$

$

Not available

11

Troy-Bilt 781-0078

Spindle Plate/Shaft Assembly

Variations

Troy-Bilt 781-0078-0637

PLATE-ASSY.SPINDLE - POWDER BLACK (0637)

$

$

Not available

$

$

12

Troy-Bilt 710-0751

Hex Cap Screw, 1/4-20 x .62

$3.99

$

In Stock, Qty 20+

0

13

MTD 750-0229

Spacer, .635 x .88 x 1.03
(Superseded to 950-0229)

$

$

Not available

14

Troy-Bilt 756-0449

Sheave, .6255 x .6295
(Superseded to 956-0449)

$14.99

$

In Stock, only 2 left!

0

15

Troy-Bilt 710-0929

Hex Cap Screw, 5/8-18 x 4.5
(Superseded to 710-3151A)

$18.99

$

Usually ships in 3-6 days

0

16

Troy-Bilt 781-0086

Spindle Belt Guard
(Superseded to 781-0427-0637)

Variations

Troy-Bilt 781-0086-0637

Belt Guard, Black - POWDER BLACK (0637)

$20.99

$

Usually ships in 3-6 days

0

$20.99

$

Usually ships in 3-6 days

0

17

Troy-Bilt 714-0122

Square Key, 3/16 x .75

$3.99

$

In Stock, Qty 20+

0

18

Troy-Bilt 754-0142

V-belt, 3/8
(Superseded to 954-0142)

$30.99

$

In Stock, Qty 12

0

19

MTD 756-0327B

Engine Pulley, 3/8 x .75 x 2.38

$

$

Not available

20

MTD 687-0100

Engine Pulley Belt Guard

Variations

Troy-Bilt 687-0100-0498

BELT GUARD - OLD CUB YELLOW (0498)

$

$

Not available

Troy-Bilt 687-0100-0637

BELT GUARD PWD BLK(POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

Troy-Bilt 687-0100-0638

BELT GUARD - MTD/TROY-BILT RED (0638)

$

$

Not available

Troy-Bilt 687-0100-0665

BELT GUARD - YARDMAN GREEN (0665)

$

$

Not available

Troy-Bilt 687-0100-0716

BELT GUARD - CUB YELLOW-99 (0716)

$

$

Not available

$

$

21

Troy-Bilt 712-0267

Hex Nut, 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

22

Troy-Bilt 736-0242

Belleville Washer, .340 x .872

$4.49

$

In Stock, Qty 20+

0

23

Troy-Bilt 736-0119

Lock Washer, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

24

Troy-Bilt 710-0237

Hex Cap Screw, 5/16-24 x .625

$4.49

$

In Stock, only 1 left!

0

25

Troy-Bilt 710-0152

Hex Cap Screw, 3/8-24 x 1.0
(Superseded to 710-1039)

$4.49

$

In Stock, Qty 20+

0

26

Troy-Bilt 736-0258

Flat Washer, .385 x 1.0 x .135

$4.49

$

In Stock, only 3 left!

0

27

Troy-Bilt 748-0160

Spacer, .753 x 1.25 x .175
(Superseded to 948-0160)

$6.99

$

In Stock, Qty 9

0

28

Troy-Bilt 781-0748

Triplex Edger Blade, 9.0

Variations

Troy-Bilt 781-0748-0637

Tri-Cut Edger Blade, Black - POWDER BLACK (0637)

$21.99

$

In Stock, Qty 13

0

$21.99

$

In Stock, Qty 13

0

29

Troy-Bilt 732-0188A

Double-torsion Spring

$12.99

$

In Stock, Qty 10

0
