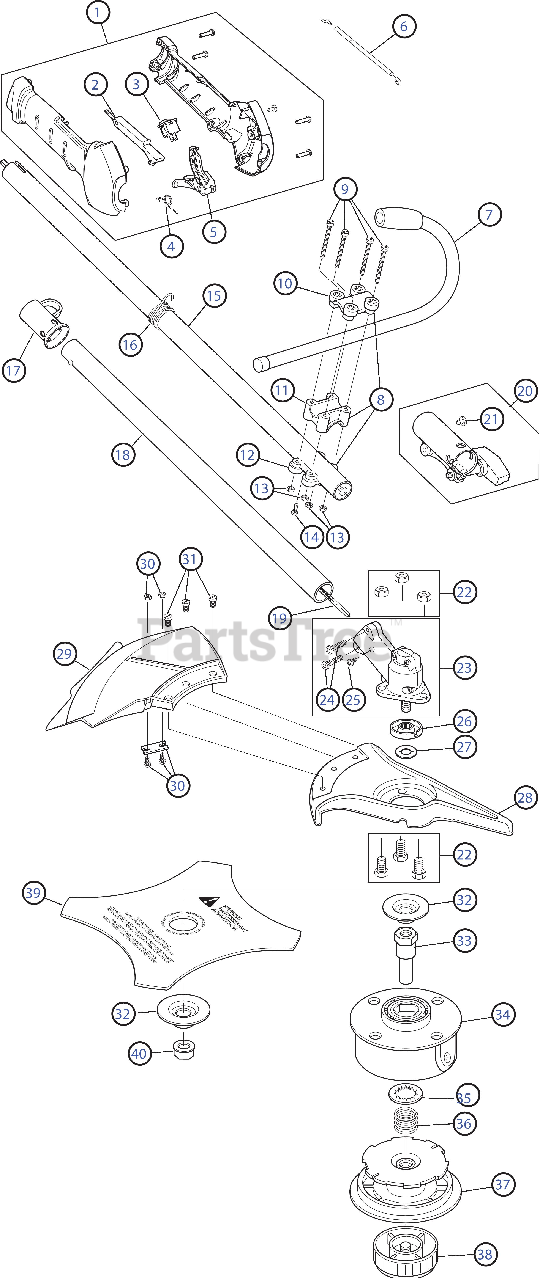

TB 590 EC (41BDZ59C866) - Troy-Bilt String Trimmer General Assembly Parts Diagram

String Trimmer

General Assembly Parts Diagram

  • Title

1

Troy-Bilt 753-08344

Throttle Housing Assembly

Note: (Incl. 2 - 5)

$30.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 731-08433C-10

Throttle Trigger Lock-Out

$3.49

$

In Stock, Qty 14

0

3

Troy-Bilt 791-182405

Switch Assembly

$10.99

$

In Stock, Qty 12

0

4

Troy-Bilt 753-05007

Throttle Trigger Spring

$5.49

$

In Stock, only 2 left!

0

5

Troy-Bilt 731-04970B-10

Throttle Trigger

$9.49

$

In Stock, Qty 20+

0

6

Troy-Bilt 753-05270

Throttle Cable Assembly

$26.99

$

Usually ships in 3-6 days

0

7

MTD 791-181099

J-Handle Assembly

$

$

Not available

8

Troy-Bilt 791-683295

J-Handle Bracket Assembly

Note: (Incl. 9 - 14)

$45.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 791-181811

Screw

$4.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt 791-181812

Upper Handle Clamp

$8.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 791-181813

Middle Handle Clamp

$12.99

$

Usually ships in 3-6 days

0

12

Troy-Bilt 791-181814

Lower Handle Clamp

$8.99

$

Usually ships in 3-6 days

0

13

Troy-Bilt 791-181815

Nut

$4.49

$

Usually ships in 3-6 days

0

14

Troy-Bilt 791-182519

Anti-Rotation Screw

$4.99

$

In Stock, only 4 left!

0

15

Troy-Bilt 753-04236

Upper Drive Shaft Housing Assembly

$94.99

$

In Stock, Qty 5

0

16

Troy-Bilt 791-610327

Harness Clip

$32.99

$

Usually ships in 3-6 days

0

17

Troy-Bilt 731-08926

Hanger

$2.99

$

In Stock, only 3 left!

0

18

Troy-Bilt 753-04504

Lower Drive Shaft Housing Assembly

$69.99

$

In Stock, only 1 left!

0

19

Troy-Bilt 753-05267

Lower Flexible Drive Shaft

$42.99

$

In Stock, only 1 left!

0

20

Troy-Bilt 753-1190

Split Boom Coupler

Note: (Incl. 21)

$23.99

$

In Stock, only 1 left!

0

21

Troy-Bilt 791-182057

Screw

$4.49

$

In Stock, Qty 6

0

22

Troy-Bilt 791-182200

Shield Mount Screw Assembly

$6.99

$

In Stock, only 2 left!

0

23

Troy-Bilt 753-07006

2 Piece Gearbox Assembly
(Superseded to 753-11244)

Note: (Incl. 24 - 27)

$22.99

$

Usually ships in 3-6 days

0

24

Troy-Bilt 791-182195

Gearbox Mounting Hardware

$7.49

$

In Stock, Qty 20+

0

25

Troy-Bilt 791-182519

Anti-Rotation Screw

$4.99

$

In Stock, only 4 left!

0

26

Troy-Bilt 791-182196

Blade Driver

$22.99

$

In Stock, only 2 left!

0

27

Troy-Bilt 753-04348

Palnut

$6.99

$

Usually ships in 3-6 days

0

28

Troy-Bilt 791-147492

Blade Shield / Shield Mount

$126.99

$

Usually ships in 3-6 days

0

29

Troy-Bilt 753-1191

Shield Assembly

Note: (Incl. 30)

$64.99

$

In Stock, only 1 left!

0

30

Troy-Bilt 791-682061

Blade Assembly

$14.99

$

In Stock, only 1 left!

0

31

Troy-Bilt 791-683304

Shield Mounting Screw

$11.99

$

In Stock, only 1 left!

0

32

Troy-Bilt 791-147490

Retaining Washer

$11.99

$

In Stock, only 2 left!

0

33

Troy-Bilt 791-612483

Spool Shaft

$55.99

$

In Stock, only 1 left!

0

34

Troy-Bilt 791-683301

Outer Spool Assembly

Note: (Incl. 35)

$48.99

$

In Stock, Qty 6

0

35

Troy-Bilt 791-612026

Retainer
(Superseded to 1772)

$6.99

$

In Stock, Qty 13

0

36

Troy-Bilt 791-610636B

Spring

$10.99

$

In Stock, only 2 left!

0

37

Troy-Bilt 791-147495

Inner Reel

$26.99

$

In Stock, Qty 7

0

38

Troy-Bilt 791-180814B

Bump Head Knob Assembly

$21.99

$

In Stock, Qty 20+

0

39

Troy-Bilt 791-145873B

4-Tooth Blade

$42.99

$

In Stock, only 4 left!

0

40

Troy-Bilt 712-04105

Nut

$10.99

$

Usually ships in 3-6 days

0

Troy-Bilt 791-180014B

Blade Retaining Kit

Note: (Incl. 32 and 40)

$12.99

$

In Stock, only 1 left!

0

Troy-Bilt 791-613226

Locking Rod Tool

$14.99

$

In Stock, only 1 left!

0

Troy-Bilt 791-682075B

Shoulder Harness

$38.99

$

Usually ships in 3-6 days

0

Troy-Bilt 753-04216

Replacement Line, 0.105 Diameter

$

$

Not available

Troy-Bilt 753-1224

Reel and Line Assembly

$32.99

$

Usually ships in 3-6 days

0

Troy-Bilt 753-1161

Bump Head Assembly
(Superseded to 791-147498)

Note: (Incl. 31 - 38)

$117.99

$

In Stock, only 1 left!

0
