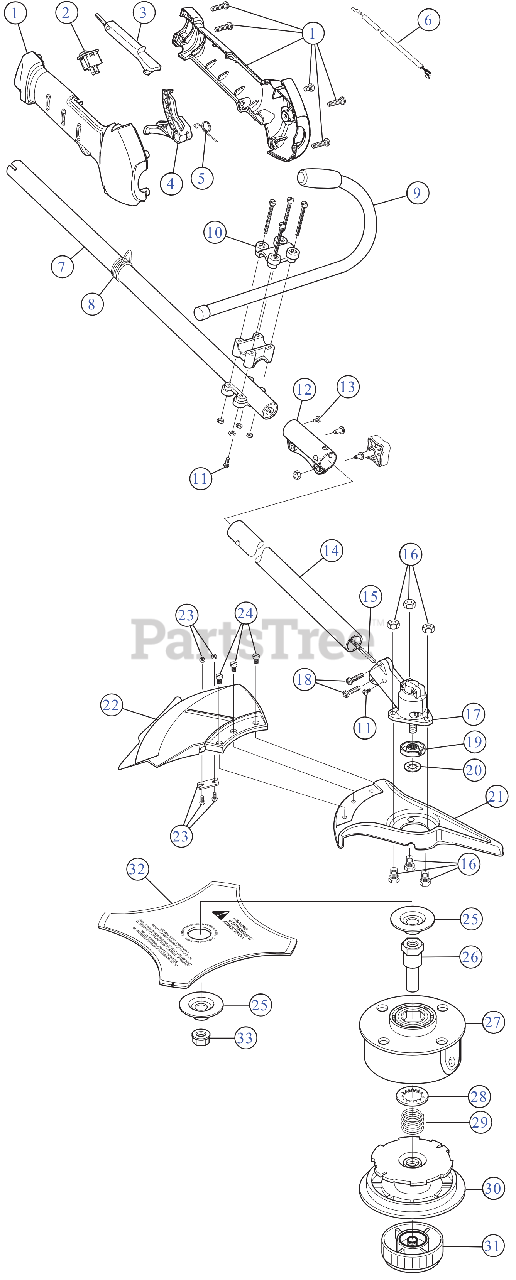

TB 590 EC (41ADZ59C866) - Troy-Bilt String Trimmer General Assembly Parts Diagram

String Trimmer

General Assembly Parts Diagram

  • Title

1

Troy-Bilt 753-08344

THROTTLE GRIP ASSEMBLY

Note: (Incl. 2 - 5)

$30.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 791-182405

SW, MOMENTARY ON/O

$10.99

$

In Stock, Qty 12

0

3

Troy-Bilt 731-08433A-10

LOCK OUT LEVER RED
(Superseded to 731-08433C-10)

$3.49

$

In Stock, Qty 14

0

4

Troy-Bilt 731-04970B-10

THROTTLE TRIGGER

$9.49

$

In Stock, Qty 20+

0

5

Troy-Bilt 753-05007

SPRING TRIG

$5.49

$

In Stock, only 3 left!

0

6

Troy-Bilt 753-05270

THROTTLE CABLE

$26.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt 753-04236

UPPER DRIVE SHAFT HOUSING ASSEMBLY

$94.99

$

In Stock, Qty 5

0

8

Troy-Bilt 791-610327

CLAMP-SHOULDER STR

$32.99

$

Usually ships in 3-6 days

0

9

MTD 791-181099

HANDLE ASSEMBLY-JAY

$

$

Not available

10

Troy-Bilt 791-683295

HANDLE BRACKET ASSEMBLY

$45.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 791-182519

SCREW, 8-32 x .312 P

$4.99

$

In Stock, only 2 left!

0

12

Troy-Bilt 753-1190

SPLIT BOOM COUPLER KIT

Note: (Incl. 13)

$23.99

$

In Stock, only 1 left!

0

13

Troy-Bilt 791-182057

SCREW, 10-32X.250 TA

$4.49

$

In Stock, only 3 left!

0

14

Troy-Bilt 753-04504

OUTER DRIVE HOUSING

$69.99

$

In Stock, only 1 left!

0

15

Troy-Bilt 753-05267

LOWERIBLE DRIVE SHAFT

$42.99

$

In Stock, only 1 left!

0

16

Troy-Bilt 791-182200

SCREW SET-GUARD MT

$6.99

$

In Stock, only 2 left!

0

17

Troy-Bilt 791-182193

GEARBOX ASSEMBLY

Note: (Incl. 11 & 18 - 20)

$99.99

$

In Stock, only 2 left!

0

18

Troy-Bilt 791-182195

SCREW #

$7.49

$

In Stock, Qty 20+

0

19

Troy-Bilt 791-182196

SPACER-GEARBOX

$22.99

$

In Stock, only 1 left!

0

20

Troy-Bilt 753-04348

PALNUT:3/8" DIAM

$6.99

$

In Stock, only 3 left!

0

21

Troy-Bilt 791-147492

SHIELD-BLADE CAST

$126.99

$

Usually ships in 3-6 days

0

22

Troy-Bilt 791-180387

GUARD ASSEMBLY BRUSH CUT

$

$

Not available

23

Troy-Bilt 791-682061

BLADE ASSEMBLY

$14.99

$

In Stock, only 1 left!

0

24

Troy-Bilt 791-683304

SCREW-GUARD MTG PK

$11.99

$

In Stock, only 1 left!

0

25

Troy-Bilt 791-147490

WASHER-BLADE CLAMP BRUSH CUT

$11.99

$

In Stock, only 4 left!

0

26

Troy-Bilt 791-612483

SHAFT-SPOOL

$55.99

$

In Stock, only 1 left!

0

27

Troy-Bilt 791-683301

SPOOL ASSEMBLY-OUTER

$48.99

$

In Stock, Qty 6

0

28

Troy-Bilt 791-612026

RETAINER .968 OD
(Superseded to 1772)

$6.99

$

In Stock, Qty 13

0

29

Troy-Bilt 791-610636B

SPRING-SPOOL

$10.99

$

In Stock, only 2 left!

0

30

Troy-Bilt 791-147495

REEL-INNER SPOOL 3000 STRG TRM

$26.99

$

In Stock, Qty 7

0

31

Troy-Bilt 791-180814B

KNOB ASSEMBLY-BUMP 3000 STRG TRM

$21.99

$

In Stock, Qty 20+

0

32

Troy-Bilt 791-145873B

BLADE 4-TOOTH

$42.99

$

In Stock, only 3 left!

0

33

Troy-Bilt 712-04105

BLADE LOCK NUT

$10.99

$

Usually ships in 3-6 days

0

Troy-Bilt 791-180014B

KIT, BLADE RETAINING ST SHAFT

Note: (Incl. 25 & 33)

$12.99

$

In Stock, only 1 left!

0

Troy-Bilt 791-613226

TOOL-LOCKING ROD

$14.99

$

In Stock, only 1 left!

0

Troy-Bilt 791-682075B

STRAP ASSEMBLY-SHOULDER

$38.99

$

Usually ships in 3-6 days

0

Troy-Bilt 753-04216

REPLACEMENT LINE .105''

$

$

Not available

Troy-Bilt 753-1224

.105 DUAL LINE CAR

$32.99

$

Usually ships in 3-6 days

0

Troy-Bilt 753-1161

BUMP HEAD ASSEMBLY
(Superseded to 791-147498)

Note: (Incl. 27 - 31)

$117.99

$

In Stock, only 1 left!

0
