TB 590 BC (41ADT59C966) - Troy-Bilt String Trimmer Engine Assembly Parts Diagram

String Trimmer

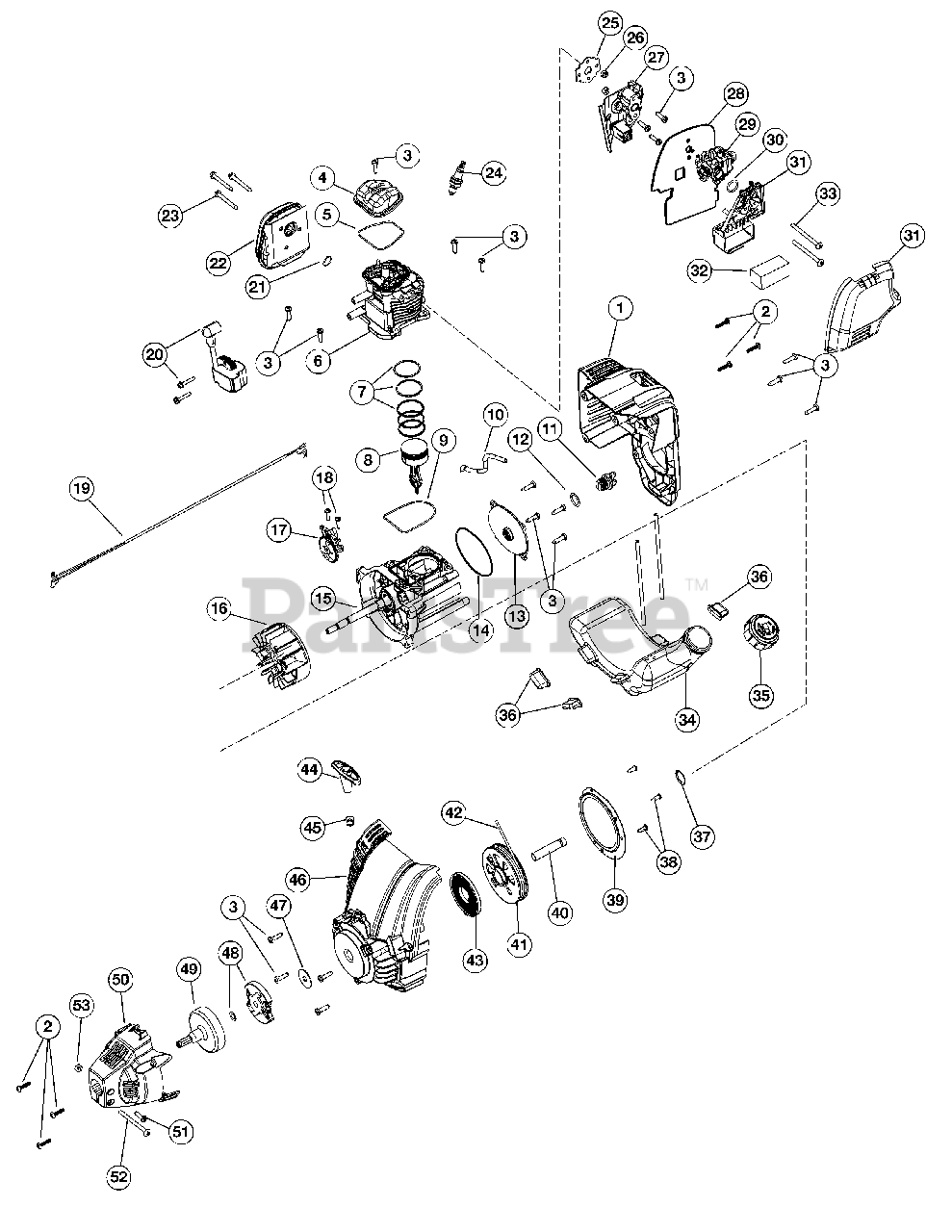

Engine Assembly Parts Diagram

  • Title

1

Troy-Bilt 753-05206

Engine Cover Assembly

Note: (Incl. Ref No. 2 & 3)

$

$

Not available

2

Troy-Bilt 753-04595

Cover Screw
(Superseded to 710-04194)

$4.49

$

In Stock, Qty 20+

0

3

Troy-Bilt 753-05377

Screw
(Superseded to 710-04604)

$4.49

$

In Stock, only 3 left!

0

4

Troy-Bilt 753-05209

Rocker Cover

$18.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 753-05210

Rocker Cover O-Ring
(Superseded to 721-04132)

$9.49

$

Usually ships in 3-6 days

0

6

Troy-Bilt 753-05228

Cylinder Assembly

Note: (Incl. Ref No. 3, 5 & 9)

$111.99

$

In Stock, only 1 left!

0

7

Troy-Bilt 753-05229

Piston Ring Assembly

$38.99

$

Usually ships in 3-6 days

0

8

Troy-Bilt 753-05230

Piston Assembly

Note: (Incl. Ref No. 7)

$79.99

$

In Stock, only 1 left!

0

9

Troy-Bilt 753-05232

Cylinder O-Ring

$9.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt 791-182379

Breather Hose

$4.99

$

In Stock, only 1 left!

0

11

Troy-Bilt 753-05236

Oil Plug
(Superseded to 753-05408)

Note: (Incl. Ref No. 12)

$29.99

$

In Stock, only 1 left!

0

12

Troy-Bilt 791-182290

Oil Plug O-Ring

$4.99

$

In Stock, Qty 11

0

13

Troy-Bilt 753-05237

Crankcase Cover

$31.99

$

Usually ships in 3-6 days

0

14

Troy-Bilt 753-05238

Crankcase Cover O-ring

$10.99

$

In Stock, only 1 left!

0

15

Troy-Bilt 753-05239

Crankcase Assembly

Note: (Incl. Ref No. 9, 10, 14 & 16)

$172.99

$

Usually ships in 3-6 days

0

16

Troy-Bilt 753-05240

Flywheel Assembly

$76.99

$

In Stock, only 2 left!

0

16

Troy-Bilt 914-04016

Woodruff Key.125 x .375

Note: Not shown

$4.49

$

Usually ships in 3-6 days

0

17

Troy-Bilt 753-05241

Cam Bracket Assembly

Note: (Incl. Ref No. 18)

$45.99

$

Usually ships in 3-6 days

0

18

Troy-Bilt 753-05242

Cam Bracket Screw
(Superseded to 710-04584)

$3.99

$

Usually ships in 3-6 days

0

19

Troy-Bilt 753-05264

Lead Wires

$16.99

$

In Stock, only 1 left!

0

20

Troy-Bilt 753-05243

Module Assembly
(Superseded to 753-05301)

$113.99

$

Usually ships in 3-6 days

0

21

Troy-Bilt 753-05244

Muffler Gasket

$5.99

$

In Stock, Qty 8

0

22

Troy-Bilt 753-05245

Muffler Assembly

Note: (Incl. Ref No. 21 & 23)

$92.99

$

Usually ships in 3-6 days

0

23

Troy-Bilt 753-05246

Muffler Screw
(Superseded to 710-04809)

$3.49

$

In Stock, only 1 left!

0

24

Troy-Bilt 753-05255

Spark Plug
(Superseded to 794-00082)

$7.49

$

In Stock, only 4 left!

0

25

Troy-Bilt 753-05247

Insulator Gasket

$

$

Not available

26

Troy-Bilt 753-05248

Nut
(Superseded to 712-04099)

$6.99

$

Usually ships in 3-6 days

0

27

Troy-Bilt 753-05249

Insulator

Note: (Incl. Ref No. 28)

$18.99

$

In Stock, only 1 left!

0

28

Troy-Bilt 753-05366

Carburetor Gasket

$19.99

$

In Stock, Qty 7

0

29

Troy-Bilt 753-05251

Carburetor w/Primer

$74.99

$

In Stock, Qty 14

0

30

Troy-Bilt 791-181751

O-Ring

$4.49

$

In Stock, Qty 20+

0

31

Troy-Bilt 753-05252

Air Cleaner Cover Assembly

Note: (Incl. Ref No. 32)

$27.99

$

In Stock, Qty 6

0

32

Troy-Bilt 753-05254

Air Filter

$5.99

$

In Stock, only 4 left!

0

33

Troy-Bilt 753-05253

Screw
(Superseded to 710-04517)

$5.49

$

In Stock, Qty 20+

0

34

Troy-Bilt 753-05256

Fuel Tank Assembly w/Fuel Lines

Note: (Incl. Ref No. 35)

$54.99

$

In Stock, Qty 14

0

35

Troy-Bilt 753-1229

Fuel Cap

$22.99

$

In Stock, only 1 left!

0

36

Troy-Bilt 753-05259

Fuel Tank Pads

$6.99

$

In Stock, Qty 20+

0

37

Troy-Bilt 753-05260

Push Nut
(Superseded to 712-04096)

$

$

Not available

38

Troy-Bilt 753-1202

Pressure Plate Screw
(Superseded to 1755)

$3.99

$

Usually ships in 3-6 days

0

39

Troy-Bilt 753-05074

Pressure Plate

Note: (Incl. Ref No. 38)

$

$

Not available

40

Troy-Bilt 753-05078

Spacer
(Superseded to 750-04434)

$6.99

$

In Stock, only 4 left!

0

41

Troy-Bilt 753-05435

Starter Assembly

Note: (Incl. Ref No. 42)

$31.99

$

In Stock, Qty 8

0

42

Troy-Bilt 791-613103

Rope

$10.99

$

In Stock, only 2 left!

0

43

Troy-Bilt 753-04286

Recoil Spring

$26.99

$

In Stock, Qty 5

0

44

Troy-Bilt 791-181079

Handle
(Superseded to 631-04164B)

$3.99

$

In Stock, only 1 left!

0

45

Troy-Bilt 791-611061

Rope Guide

$10.99

$

In Stock, only 2 left!

0

46

Troy-Bilt 753-05262

Starter Housing Assembly

Note: (Incl. Ref No. 3 & 37-45)

$85.99

$

Usually ships in 3-6 days

0

47

Troy-Bilt 791-182396

Washer
(Superseded to 9162-1)

$4.49

$

In Stock, only 3 left!

0

48

Troy-Bilt 753-1238

Clutch & Clutch Washer

$45.99

$

In Stock, Qty 13

0

49

Troy-Bilt 791-153592

Clutch Drum

$51.99

$

In Stock, Qty 12

0

50

Troy-Bilt 753-05263

Clutch Cover

$27.99

$

In Stock, only 1 left!

0

51

Troy-Bilt 791-182519

Anti-Rotation Screw

$4.99

$

Usually ships in 3-6 days

0

52

Troy-Bilt 753-04003

Clamp Screw
(Superseded to 9689A)

$11.99

$

Usually ships in 3-6 days

0

53

Troy-Bilt 791-180217

Nut
(Superseded to 712-0161)

$4.49

$

In Stock, only 2 left!

0

Troy-Bilt 753-05297

Spark Arrestor Assembly

Note: Not Shown

$28.99

$

Usually ships in 3-6 days

0

Troy-Bilt 753-05265

Shortblock Assembly

Note: Not Shown (Incl. Ref No. 3-12, 14, 15, 17 & 24)

$

$

Not available
