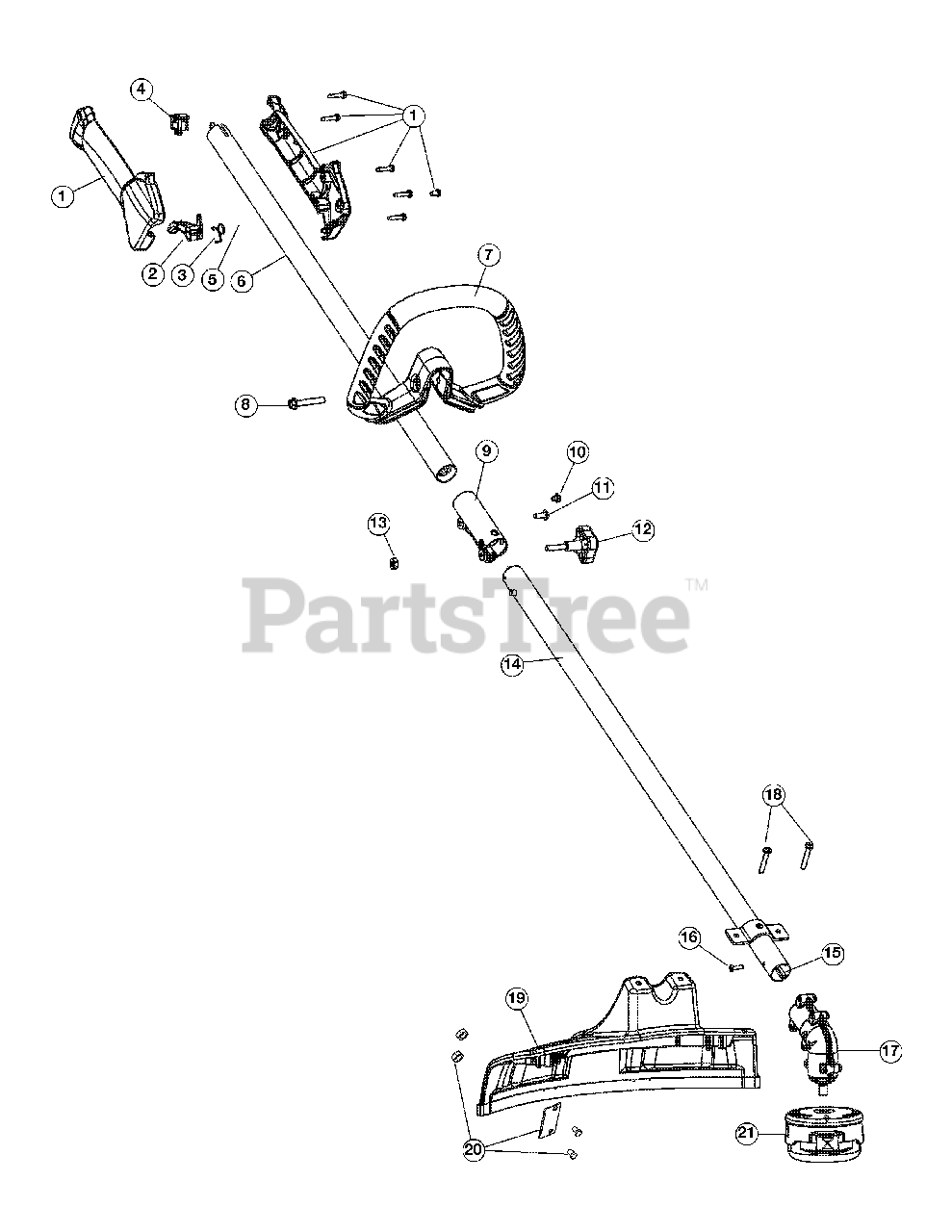

TB 575 ES (41CDT57C966) - Troy-Bilt String Trimmer General Assembly Parts Diagram

String Trimmer

General Assembly Parts Diagram

  • Title

1

Troy-Bilt 753-04234

Throttle Housing Assembly (Incl. Ref No. 2-4)

$21.99

$

In Stock, Qty 7

0

2

Troy-Bilt 753-04119

Throttle Trigger

$7.49

$

In Stock, Qty 18

0

3

Troy-Bilt 791-182690

Throttle Trigger Spring

$7.99

$

In Stock, only 2 left!

0

4

Troy-Bilt 791-182405

Switch

$10.99

$

In Stock, Qty 12

0

5

Troy-Bilt 753-05266

Throttle Cable Assembly

$20.99

$

In Stock, Qty 12

0

6

Troy-Bilt 753-04236

Upper Drive Shaft Housing Assembly

$94.99

$

In Stock, Qty 5

0

7

Troy-Bilt 753-06039

Deluxe D-Handle Assembly (Incl. Ref No. 8)

$11.99

$

Usually ships in 3-6 days

0

8

Troy-Bilt 753-06040

Bolt

$6.99

$

In Stock, only 1 left!

0

9

Troy-Bilt 753-1190

Split Boom Coupler (Incl. Ref No. 10-13)

$23.99

$

In Stock, only 1 left!

0

10

Troy-Bilt 791-182057

Screw

$4.49

$

In Stock, only 3 left!

0

11

Troy-Bilt 791-181617

Bolt

$5.49

$

In Stock, Qty 11

0

12

Troy-Bilt 791-181981

Adjustment Knob (Incl. Ref No. 13)
(Superseded to 697-00661-9)

$

$

Not available

13

Troy-Bilt 712-04018A

Knob Retaining Nut

$4.49

$

In Stock, Qty 5

0

14

Troy-Bilt 753-08164

Lower Drive Shaft Housing Assembly

$20.99

$

In Stock, Qty 20+

0

15

Troy-Bilt 753-05267

Lower Flexible Drive Shaft

$42.99

$

In Stock, only 1 left!

0

16

Troy-Bilt 7039

Anti-Rotation Screw

$4.99

$

In Stock, only 2 left!

0

17

Troy-Bilt 753-06124

Gear Box Assembly (Incl. Ref No. 16)

$

$

Not available

18

Troy-Bilt 753-06125

Shield Mounting Screws

$6.99

$

In Stock, only 4 left!

0

19

Troy-Bilt 753-06123

Shield Assembly (Incl. Ref No. 20)

$20.99

$

In Stock, Qty 10

0

20

Troy-Bilt 753-06126

Blade Assembly

$3.49

$

In Stock, Qty 5

0

21

Troy-Bilt 753-06129

Cutting Head Assembly
(Superseded to 753-08182)

$19.99

$

In Stock, Qty 15

0

Troy-Bilt 753-06149

Kit, Speed Spool

Note: Not shown, Kit contains head cover, spring and 4 eyelets for 753-06129 assembly.

$8.99

$

In Stock, Qty 8

0
