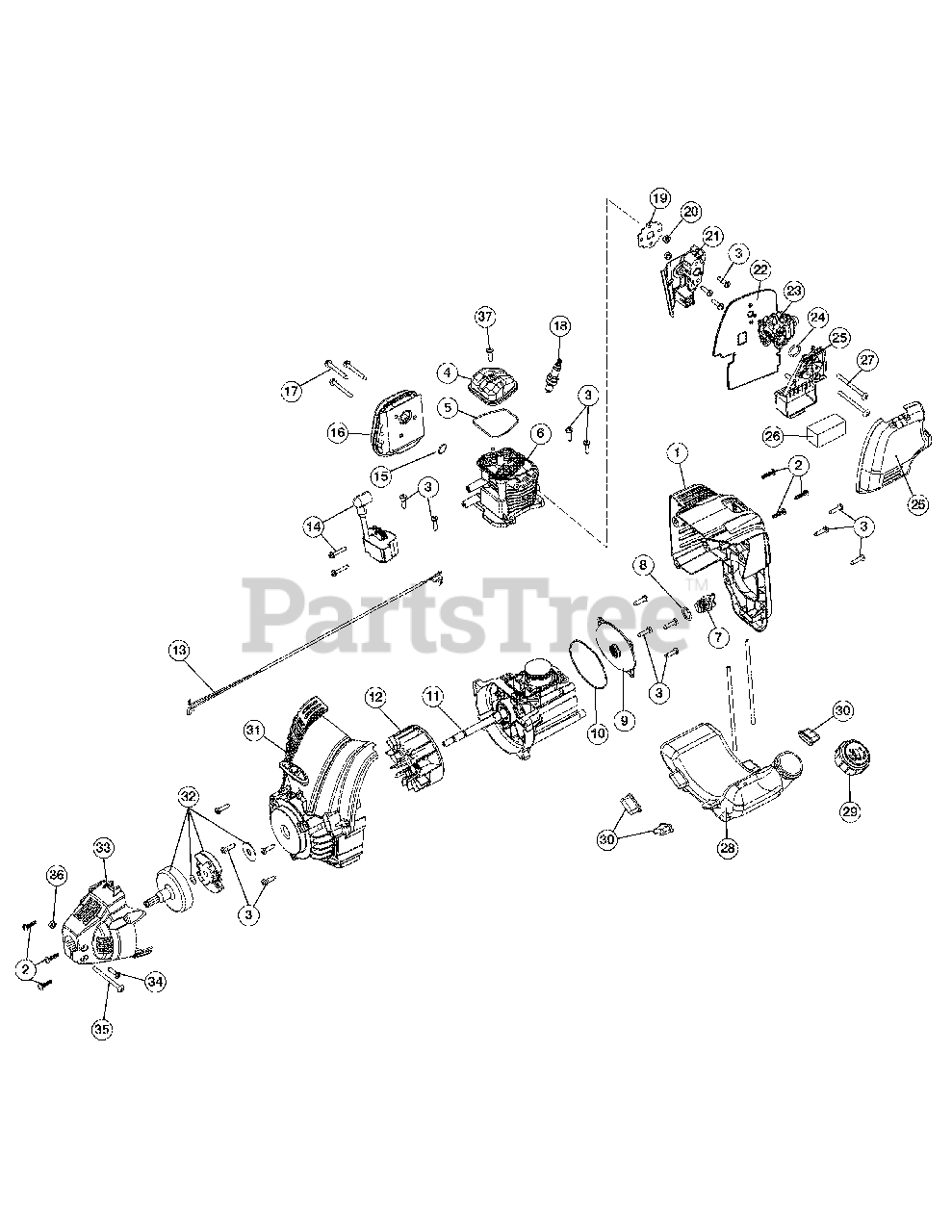

TB 575 EC (41EDT57C966) - Troy-Bilt String Trimmer Engine Assembly Parts Diagram

String Trimmer

Engine Assembly Parts Diagram

  • Title

1

Troy-Bilt 753-06134

Engine Cover Assembly (Incl. Ref No. 2 & 3)

$10.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 710-04194

Cover Screw

$4.49

$

In Stock, Qty 20+

0

3

Troy-Bilt 791-181003

Screw
(Superseded to 9052-1)

$

$

Not available

4

Troy-Bilt 753-05901

Rocker Cover

$8.49

$

Usually ships in 3-6 days

0

5

Troy-Bilt 753-05902

Rocker Cover O-Ring

$5.49

$

In Stock, only 2 left!

0

6

Troy-Bilt 753-06311

Cylinder Assembly (Incl. Ref No. 3 & 5)

$42.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt 753-05408

Oil Plug (Incl. Ref No. 8)

$29.99

$

In Stock, only 1 left!

0

8

Troy-Bilt 791-182290

Oil Plug O-Ring

$4.99

$

In Stock, Qty 11

0

9

Troy-Bilt 753-06111

Crankcase Cover
(Superseded to 841-020721S)

$13.99

$

In Stock, only 2 left!

0

10

Troy-Bilt 753-05238

Crankcase Cover O-ring

$10.99

$

In Stock, only 1 left!

0

11

Troy-Bilt 753-06313

Crankcase Assembly (Incl. Ref No. 10)

$52.99

$

In Stock, only 1 left!

0

12

Troy-Bilt 753-06221

Flywheel Assembly

$21.99

$

Usually ships in 3-6 days

0

13

Troy-Bilt 753-05264

Lead Wires

$16.99

$

In Stock, only 1 left!

0

14

Troy-Bilt 753-05243

Module Assembly
(Superseded to 753-05301)

$113.99

$

Usually ships in 3-6 days

0

15

Troy-Bilt 753-05244

Muffler Gasket

$5.99

$

In Stock, Qty 8

0

16

Troy-Bilt 753-05245

Muffler Assembly (Incl. Ref No. 15 & 17)

$92.99

$

Usually ships in 3-6 days

0

17

Troy-Bilt 753-05246

Muffler Screw
(Superseded to 710-04809)

$3.49

$

In Stock, only 1 left!

0

18

Troy-Bilt 794-00043

Spark Plug
(Superseded to 794-00082)

$7.49

$

In Stock, only 4 left!

0

19

Troy-Bilt 753-05247

Insulator Gasket

$

$

Not available

20

Troy-Bilt 712-04099

Nut

$6.99

$

Usually ships in 3-6 days

0

21

Troy-Bilt 753-05249

Insulator

$18.99

$

In Stock, only 1 left!

0

22

Troy-Bilt 753-05366

Carburetor Gasket

$19.99

$

In Stock, Qty 7

0

23

Troy-Bilt 753-06220

Carburetor
(Superseded to 753-06220B)

$47.99

$

In Stock, Qty 8

0

24

Troy-Bilt 791-181751

O-Ring

$4.49

$

In Stock, Qty 20+

0

25

Troy-Bilt 753-05252

Air Cleaner Cover Assembly (Incl. Ref No. 26)

$27.99

$

In Stock, Qty 6

0

26

Troy-Bilt 753-05254

Air Filter

$5.99

$

In Stock, only 4 left!

0

27

Troy-Bilt 710-04517

Screw

$5.49

$

In Stock, Qty 20+

0

28

Troy-Bilt 753-06240

Fuel Tank Assembly w/Fuel Lines (Incl. Ref No. 29)

$29.99

$

In Stock, only 4 left!

0

29

Troy-Bilt 753-1229

Fuel Cap

$22.99

$

In Stock, only 1 left!

0

30

Troy-Bilt 753-05259

Fuel Tank Pads

$6.99

$

In Stock, Qty 20+

0

31

Troy-Bilt 753-06314

Starter Housing Assembly (Incl. Ref No. 3)

$30.99

$

In Stock, only 1 left!

0

32

Troy-Bilt 753-06281

Clutch Assembly

$22.99

$

In Stock, only 2 left!

0

33

Troy-Bilt 753-05263

Clutch Cover (Incl. Ref No. 2)

$27.99

$

In Stock, only 1 left!

0

34

Troy-Bilt 791-182519

Anti-Rotation Screw

$4.99

$

Usually ships in 3-6 days

0

35

Troy-Bilt 753-04003

Clamp Screw
(Superseded to 9689A)

$11.99

$

Usually ships in 3-6 days

0

36

Troy-Bilt 791-180217

Nut
(Superseded to 712-0161)

$4.49

$

In Stock, only 2 left!

0

37

Troy-Bilt 791-181025

Rocker Cover Screw

$2.99

$

Usually ships in 3-6 days

0

Troy-Bilt 753-05297

Spark Arrestor Assembly

Note: Not Shown

$28.99

$

Usually ships in 3-6 days

0

Troy-Bilt 753-06317

Shortblock Assembly
(Superseded to 753-06799)

Note: Not Shown(Incl. Ref No. 3-6, 8, 10, 11 & 18)

$106.99

$

In Stock, only 4 left!

0
