TB 566 (12AV566N211) - Troy-Bilt Walk-Behind Mower (2008) General Assembly Parts Diagram

Walk-Behind Mower

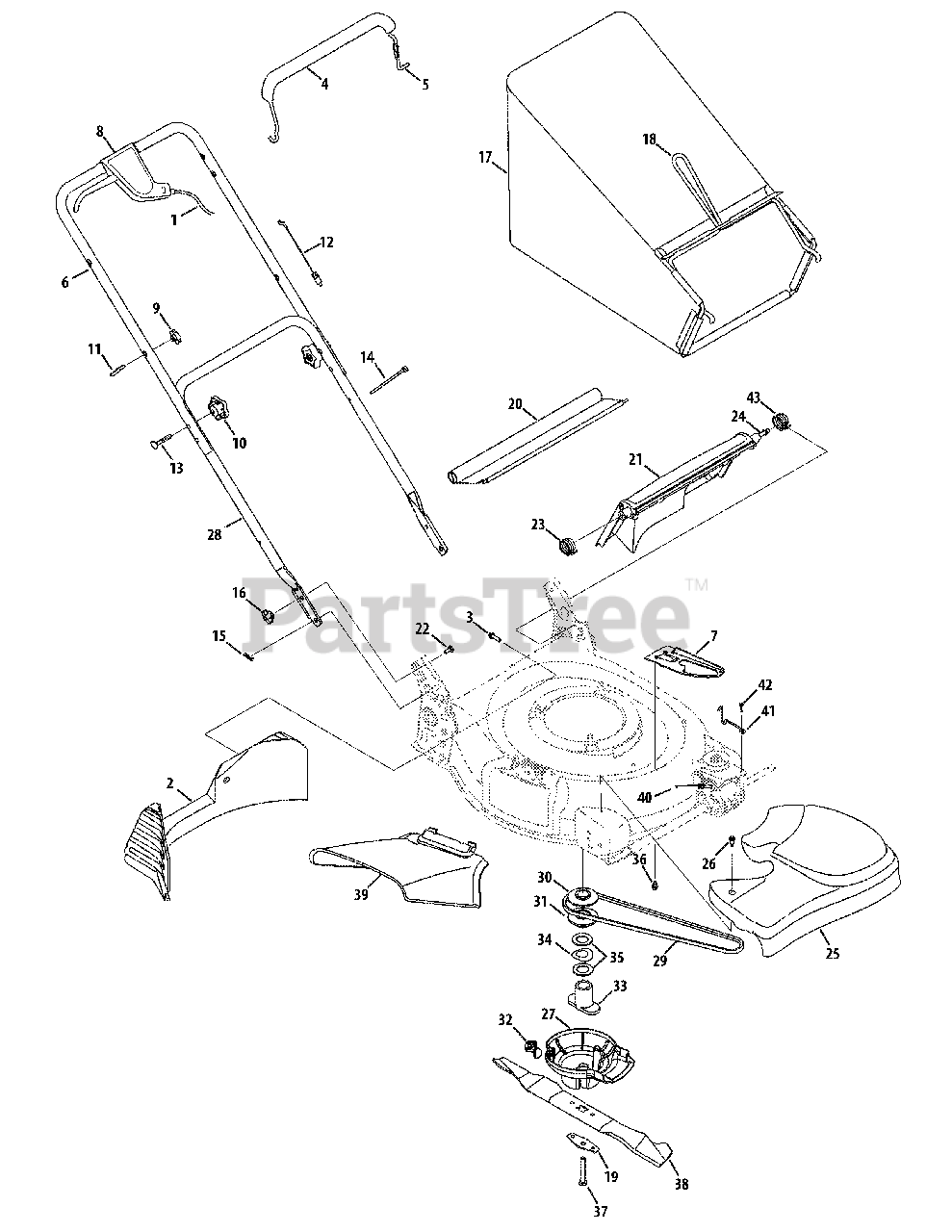

General Assembly Parts Diagram

  • Title
1

Troy-Bilt 746-04206A

Variable Speed Cable
(Superseded to 946-04206A)

$27.99

$

In Stock, Qty 20+

0

2

Troy-Bilt 731-04150C

Rear Baffle 21'' Rd

$42.99

$

In Stock, only 2 left!

0

3

Troy-Bilt 710-1241

Screw, 1/4-15 x 1.000

$6.99

$

In Stock, Qty 16

0

4

Troy-Bilt 731-04204

Deluxe Bail Cover

$11.99

$

In Stock, only 3 left!

0

5

Troy-Bilt 747-1161A

Blade Control

Variations

Troy-Bilt 747-1161A-0637

Operator Bail, Black - POWDER BLACK (0637)

$13.99

$

In Stock, only 4 left!

0

$13.99

$

In Stock, only 4 left!

0

6

Troy-Bilt 749-04206A

Upper Handle
(Superseded to 749-04206B-0637)

Variations

Troy-Bilt 749-04206A-0637

Upper Squeeze Handle - POWDER BLACK (0637)

$

$

Not available

$

$

7

Troy-Bilt 787-01258A

Cable Mount Bracket

Variations

Troy-Bilt 787-01258A-0637

Cable Mounting Bracket - POWDER BLACK (0637)

$24.99

$

Usually ships in 3-6 days

0

$24.99

$

Usually ships in 3-6 days

0

8

Troy-Bilt 753-05096A

Control Lever Assembly
(Superseded to 753-06060A)

$27.99

$

In Stock, only 1 left!

0

9

Troy-Bilt 720-0279

Handle Knob

$4.49

$

In Stock, Qty 20+

0

10

Troy-Bilt 720-04072

Star Knob
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 20+

0

11

$3.99

$

In Stock, Qty 20+

0

12

Troy-Bilt 746-1130

Control Cable - 40''
(Superseded to 946-1130)

$17.99

$

In Stock, Qty 7

0

13

Troy-Bilt 710-1174

Carriage Bolt, 5/16-18 x 2.0

$7.49

$

In Stock, Qty 20+

0

14

Troy-Bilt 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

15

Troy-Bilt 714-0104

Cotter Pin

$4.49

$

In Stock, Qty 20+

0

16

Troy-Bilt 712-0397

Wing Nut
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

17

Troy-Bilt 664-04011

Grass Bag Assembly
(Superseded to 964-04007A)

$130.99

$

In Stock, Qty 15

0

18

Troy-Bilt 747-04080A

Grass Bag Frame

Variations

Troy-Bilt 747-04080A-0637

Grass Bag Frame, 21" - POWDER BLACK (0637)

$59.99

$

In Stock, Qty 5

0

$59.99

$

In Stock, Qty 5

0

19

Troy-Bilt 736-0524B

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, Qty 14

0

20

Troy-Bilt 731-05642

Rear Trailing Shield
(Superseded to 731-05642A)

$28.99

$

In Stock, Qty 9

0

21

Troy-Bilt 731-05865

Rear Discharge Door
(Superseded to 731-06847)

$28.99

$

Usually ships in 3-6 days

0

22

Troy-Bilt 710-0703

Carriage Bolt, 1/4-20

$4.49

$

In Stock, Qty 20+

0

23

Troy-Bilt 732-04090A

Torsion Spring - RH

$7.99

$

Usually ships in 3-6 days

0

24

$17.99

$

Usually ships in 3-6 days

0

25

Troy-Bilt 731-05020A

Transmission Cover (Black)
(Superseded to 931-05020A)

$70.99

$

Usually ships in 3-6 days

0

26

Troy-Bilt 710-1650

Shoulder Screw, # 12-24

$4.99

$

In Stock, Qty 20+

0

27

Troy-Bilt 731-06029

Engine Baffle
(Superseded to 753-06116)

$16.99

$

In Stock, only 1 left!

0

28

Troy-Bilt 749-0928A

Lower Handle
(Superseded to 749-0928A-0637)

Variations

Troy-Bilt 749-0928A-0637

Lower Handle - POWDER BLACK (0637)

$33.99

$

In Stock, only 2 left!

0

$33.99

$

In Stock, only 2 left!

0

29

Troy-Bilt 754-04082A

V-Belt
(Superseded to 954-04082A)

$27.99

$

In Stock, Qty 6

0

30

Troy-Bilt 756-04161

Upper Pulley Half, 25mm x 2.62
(Superseded to 956-04161)

$13.99

$

In Stock, only 1 left!

0

31

Troy-Bilt 756-04160

Lower Pulley Half, 25mm x 2.62
(Superseded to 956-04160)

$20.99

$

Usually ships in 3-6 days

0

32

Troy-Bilt 787-01593

Baffle Bracket

$5.99

$

In Stock, Qty 5

0

33

Troy-Bilt 748-04082

Blade Adapter

$37.99

$

In Stock, only 1 left!

0

34

Troy-Bilt 736-0447

Spacer Washer

$4.49

$

In Stock, Qty 20+

0

35

Troy-Bilt 736-0277

Flat Washer

$4.49

$

In Stock, Qty 20+

0

36

Troy-Bilt 710-0896

Screw, 1/4-14 x .625

$4.49

$

In Stock, Qty 20+

0

37

Troy-Bilt 710-1257

Hex Screw, 3/8-24 x 2.50

$7.99

$

In Stock, only 1 left!

0

38

Troy-Bilt 942-0741A

21'' Mulching Blade

$29.99

$

In Stock, Qty 20+

0

39

Troy-Bilt 731-04177

Side Discharge Chute

$19.99

$

In Stock, Qty 20+

0

40

Troy-Bilt 732-04317

Extension Spring

$4.99

$

Usually ships in 3-6 days

0

41

Troy-Bilt 732-04294

Belt Keeper Wire

$4.99

$

Usually ships in 3-6 days

0

42

Troy-Bilt 710-04329

Torx Screw

$4.99

$

In Stock, only 1 left!

0

43

Troy-Bilt 732-04089A

Torsion Spring - LH

$7.99

$

Usually ships in 3-6 days

0
