TB 554 (25B-55MA766) - Troy-Bilt Edger (2020) Wheels Parts Diagram

Edger

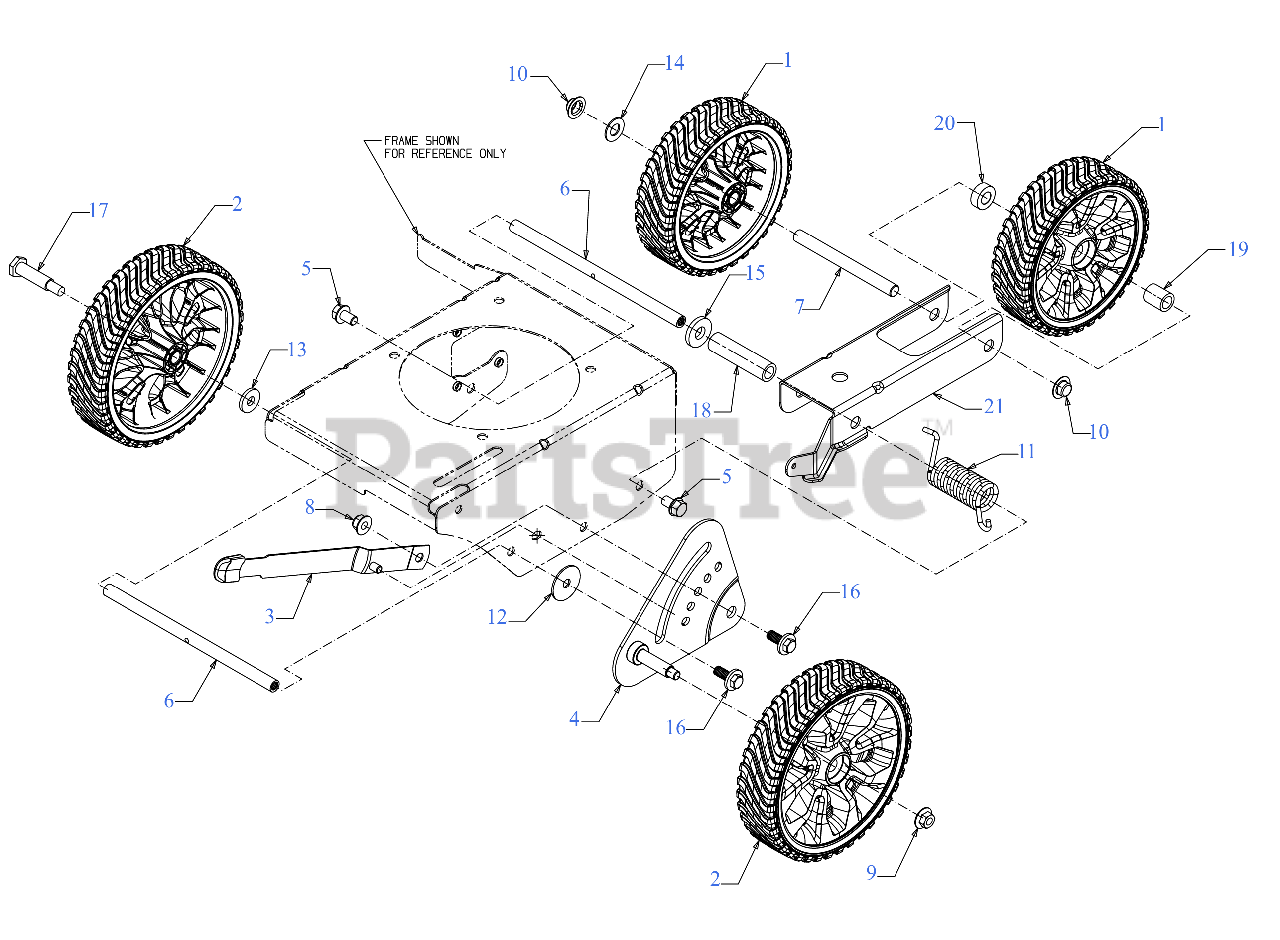

Wheels Parts Diagram

  • Title
1

Troy-Bilt 634-05272

WHEEL ASSEMBLY 7" x 2"

$23.99

$

In Stock, Qty 8

0

2

Troy-Bilt 634-05275

WHEEL ASSEMBLY 8 x 2 GRAY

$32.99

$

In Stock, Qty 10

0

3

Troy-Bilt 687-02022

WHEEL ADJUSTMENT LEVER ASSEMBLY

$70.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 731-13116-1

HEIGHT ADJUSTMENT KNOB

Note: (Not Shown)

$13.99

$

In Stock, only 1 left!

0

4

Troy-Bilt 687-05319

HEIGHT ADJUST PLATE

$29.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 710-0870

SCREW 3/8-16X.625 GR 5

$6.49

$

In Stock, only 1 left!

0

6

Troy-Bilt 711-04440

SPACER .50 x 9.25

$29.99

$

Usually ships in 3-6 days

0

$5.99

$

Usually ships in 3-6 days

0

$3.99

$

In Stock, Qty 20+

0

9

Troy-Bilt 712-04217

FLANGE LOCK NUT

$4.49

$

In Stock, Qty 20+

0

10

$8.49

$

In Stock, Qty 20+

0

11

Troy-Bilt 732-04045

TORSION SPRING

$15.99

$

Usually ships in 3-6 days

0

12

Troy-Bilt 736-0234

FLAT WASHER .390 ID x 1.50 OD x .075

$6.49

$

Usually ships in 3-6 days

0

13

Troy-Bilt 736-0258

FLAT WASHER .385 x 1.00 x .135

$4.49

$

In Stock, only 4 left!

0

14

Troy-Bilt 936-0272

FLAT WASHER .510X.995
(Superseded to 736-0272)

$4.99

$

In Stock, Qty 20+

0

15

Troy-Bilt 736-04019

FLAT WASHER .531 x 1.25 x .181

$7.99

$

In Stock, only 1 left!

0

$4.49

$

In Stock, Qty 20+

0

17

Troy-Bilt 938-0533

SHOULDER BOLT .498 DIA. x 1.64
(Superseded to 738-0533)

$7.99

$

Usually ships in 3-6 days

0

$4.99

$

Usually ships in 3-6 days

0

$3.99

$

Usually ships in 3-6 days

0

$2.49

$

Usually ships in 3-6 days

0

21

Troy-Bilt 787-01240

WHEEL BRACKET

Note: (Choose Color When Ordering)

Variations

Troy-Bilt 787-01240-0638

BRACKET-WHEEL - MTD/TROY-BILT RED (0638)

$29.99

$

Usually ships in 3-6 days

0

Troy-Bilt 787-01240-0606

BRACKET-WHEEL - MAJESTIC ORANGE (0606)

$24.99

$

Usually ships in 3-6 days

0

Troy-Bilt 787-01240-0691

BRACKET-WHEEL - BLACK JACK (0691)

$29.99

$

Usually ships in 3-6 days

0

Troy-Bilt 787-01240-4021

BRACKET-WHEEL - CUB YELLOW 2 (4021)

$29.99

$

Usually ships in 3-6 days

0

Troy-Bilt 787-01240-4044

BRACKET-WHEEL - CRAFTSMAN RED (4044)

$29.99

$

Usually ships in 3-6 days

0

$24.99

$

Usually ships in 3-6 days

0
