TB 554 (25B-554E011) - Troy-Bilt Edger (2010) General Assembly Parts Diagram

Edger

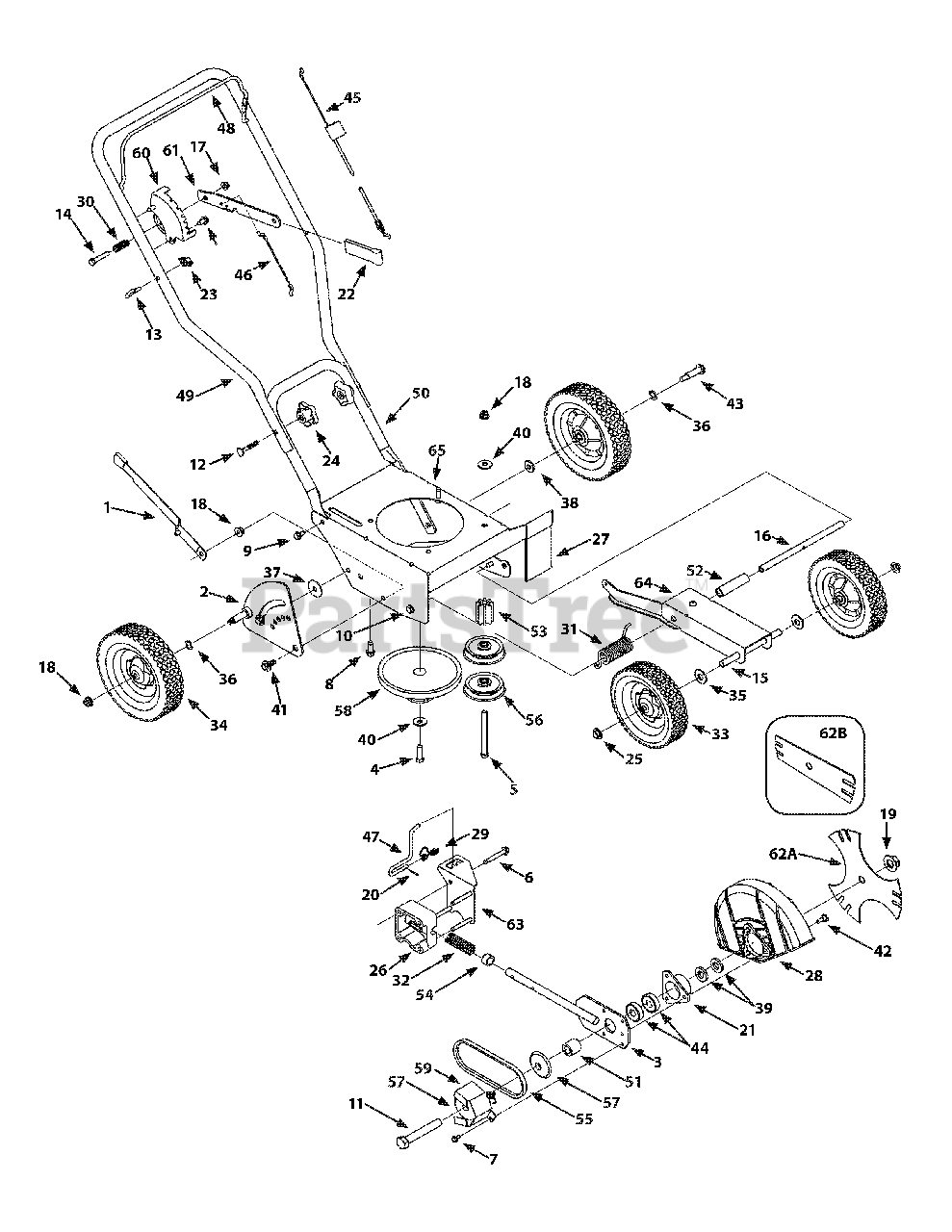

General Assembly Parts Diagram

  • Title

1

Troy-Bilt 687-02022

Curb Height Adjustment Lever

$70.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 687-02125A

Curb Height Adjuster Plate

$

$

Not available

3

Troy-Bilt 687-02126

Blade Plate Assembly

$56.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 710-0191

Screw 3/8-24 x 1.25

$4.99

$

In Stock, Qty 9

0

5

Troy-Bilt 710-0411

Screw 3/8-16 x 4.00

$8.49

$

In Stock, Qty 17

0

6

Troy-Bilt 710-04389

Hex Screw, 5/16-18

$6.99

$

In Stock, only 1 left!

0

7

Troy-Bilt 710-0599

Self-tapping Screw, 1/4-20

$4.49

$

In Stock, Qty 20+

0

8

Troy-Bilt 710-0654A

Screw, 3/8-16

$4.49

$

In Stock, Qty 20+

0

9

Troy-Bilt 710-0726

Hex Screw, 5/16-12

$4.49

$

In Stock, Qty 20+

0

10

Troy-Bilt 710-0870

Hex Screw 3/8-16 x .625

$6.49

$

In Stock, only 1 left!

0

11

Troy-Bilt 710-1143A

Hex Screw, 5/8-18 x 4.0

$11.99

$

In Stock, only 1 left!

0

12

Troy-Bilt 710-1174

Carriage Bolt, 5/16-18 x 2.0

$7.49

$

In Stock, Qty 20+

0

13

Troy-Bilt 710-1205

Rope Guide (Eye Bolt)

$3.99

$

In Stock, Qty 20+

0

14

Troy-Bilt 710-3180

Hex Screw, 5/16-18

$5.49

$

In Stock, Qty 20+

0

15

Troy-Bilt 711-04361

Axle Shaft .50x6.65

$

$

Not available

16

Troy-Bilt 711-04440

Frame Spacer .50x9.25

$29.99

$

Usually ships in 3-6 days

0

17

Troy-Bilt 712-04063

Lock Flange Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

18

Troy-Bilt 712-04065

Flange Nut 3/8-16

$3.99

$

In Stock, Qty 20+

0

19

Troy-Bilt 712-0417A

Flange Nut, 5/8-18

$6.99

$

In Stock, Qty 20+

0

20

Troy-Bilt 714-3010

Clevis Pin 3/32 x .625

$4.99

$

In Stock, only 1 left!

0

21

Troy-Bilt 718-04012

Bearing Cup

$21.99

$

In Stock, only 1 left!

0

22

Troy-Bilt 720-0142

Grip

$3.99

$

Usually ships in 3-6 days

0

23

Troy-Bilt 720-0279

Wing Nut

$4.49

$

In Stock, Qty 20+

0

24

Troy-Bilt 720-04072A

Star Knob

$6.99

$

In Stock, Qty 20+

0

25

Troy-Bilt 726-0299

Push Cap 1/2" rod

$8.49

$

In Stock, Qty 20+

0

26

Troy-Bilt 931-04207

Bearing Block

$27.99

$

In Stock, only 1 left!

0

27

Troy-Bilt 731-05063

Debris Guard

$6.49

$

In Stock, only 1 left!

0

28

Troy-Bilt 731-05064

Blade Guard
(Superseded to 731P05064)

$27.99

$

In Stock, only 1 left!

0

29

Troy-Bilt 732-0188A

Double Torsion Spring

$12.99

$

In Stock, Qty 9

0

30

Troy-Bilt 932-0369

Compression Spring

$10.99

$

Usually ships in 3-6 days

0

31

Troy-Bilt 732-04045

Torsion Spring

$15.99

$

Usually ships in 3-6 days

0

32

Troy-Bilt 932-04169

Compression Spring

$10.99

$

In Stock, only 1 left!

0

33

Troy-Bilt 734-1264

Wheel 7 x 1.75 T-Tread

$55.99

$

Usually ships in 3-6 days

0

34

Troy-Bilt 734-1268

Wheel 8 x 1.75 T-Tread

$71.99

$

Usually ships in 3-6 days

0

35

Troy-Bilt 936-0179

Flat Washer 1/2 x 1.25 x .10
(Superseded to 736-0179)

$4.99

$

In Stock, only 2 left!

0

36

Troy-Bilt 936-0232

Wave Washer .531 x .781 x .013
(Superseded to 736-0232)

$4.99

$

In Stock, Qty 12

0

37

Troy-Bilt 736-0234

Flat Washer, .385 x 1.5 x .075

$6.49

$

Usually ships in 3-6 days

0

38

Troy-Bilt 736-0258

Flat Washer .385 x 1.0 x .135

$4.49

$

In Stock, only 4 left!

0

39

Troy-Bilt 936-04088

Flat Washer .635x1.24x.181
(Superseded to 736-04088)

$4.49

$

In Stock, only 4 left!

0

40

Troy-Bilt 936-0452

Bell Washer,.396 x 1.140
(Superseded to 736-0452)

$4.99

$

In Stock, Qty 5

0

41

Troy-Bilt 738-04149

Shoulder Screw, 3/8-16

$4.49

$

In Stock, Qty 20+

0

42

Troy-Bilt 738-0706C

Shoulder Screw, 3.75 x .280 x 1/4-14
(Superseded to 738-0706D)

$4.49

$

In Stock, only 2 left!

0

43

Troy-Bilt 738-0929

Shoulder Screw, 3/8-16

$7.99

$

In Stock, only 2 left!

0

44

Troy-Bilt 941-0524

Bearing, .625 ID x 1.57 OD
(Superseded to 941-0524A)

$23.99

$

In Stock, Qty 20+

0

45

Troy-Bilt 746-04035

Control Cable (Briggs & Stratton)
(Superseded to 946-04035)

$20.99

$

In Stock, only 1 left!

0

46

Troy-Bilt 946-04036

Wheel Adjustment Cable

$18.99

$

In Stock, Qty 5

0

47

Troy-Bilt 747-04110

Blade Adjustment Rod
(Superseded to 747-04110A)

$17.99

$

In Stock, Qty 20+

0

48

Troy-Bilt 747-0976A-0637

Bail Handle
(Superseded to 747-0976B)

$25.99

$

In Stock, only 1 left!

0

49

Troy-Bilt 749-04183-0637

Upper Handle
(Superseded to 749-04183A)

$69.99

$

Usually ships in 3-6 days

0

50

Troy-Bilt 749-04234-0637

Lower Handle
(Superseded to 749-04234)

$50.99

$

In Stock, only 1 left!

0

51

Troy-Bilt 950-04105

Spacer, .63 x 1.12 x 1.06

$15.99

$

Usually ships in 3-6 days

0

52

Troy-Bilt 750-04129

Spacer

$4.99

$

Usually ships in 3-6 days

0

53

Troy-Bilt 950-04142

Pulley Mount Spacer

$14.99

$

Usually ships in 3-6 days

0

54

Troy-Bilt 750-0547

Spacer, .64 x.88 x .50

$5.99

$

In Stock, only 2 left!

0

55

Troy-Bilt 954-04032B

Belt

$25.99

$

In Stock, Qty 13

0

56

Troy-Bilt 756-04148

Flat Idler Pulley, 2.5 OD

$41.99

$

In Stock, only 2 left!

0

57

Troy-Bilt 956-0449

Sheave

$14.99

$

In Stock, only 2 left!

0

58

Troy-Bilt 756-1150A

Combination Flywheel Pulley

$163.99

$

Usually ships in 3-6 days

0

59

Troy-Bilt 781-0427-0637

Belt Guard

$20.99

$

In Stock, only 1 left!

0

60

Troy-Bilt 781-0741A

Depth Index Bracket

Variations

Troy-Bilt 781-0741A-0637

BRACKET-INDEX DEPTPOWDER BLACK - POWDER BLACK (0637)

$8.49

$

In Stock, only 1 left!

0

$7.99

$

Usually ships in 3-6 days

0

61

Troy-Bilt 781-0742-0637

Depth Index Lever

$39.99

$

Usually ships in 3-6 days

0

62A

Troy-Bilt 781-0748-0637

Tri-Star Blade

$21.99

$

In Stock, Qty 13

0

62B

Troy-Bilt 781-0080-0637

Edger Blade

$8.99

$

In Stock, Qty 20+

0

63

Troy-Bilt 787-01081A-0638

Bracket Plate
(Superseded to 787-01081A-0637)

$6.49

$

Usually ships in 3-6 days

0

64

Troy-Bilt 787-01239-0638

Dual Wheel Bracket

$45.99

$

Usually ships in 3-6 days

0

65

Troy-Bilt 787-01304-0638

Frame
(Superseded to 787-01304-0691)

$69.99

$

Usually ships in 3-6 days

0
