TB 554 (25A-554L766) - Troy-Bilt Edger (2004) Handle Parts Diagram

Edger

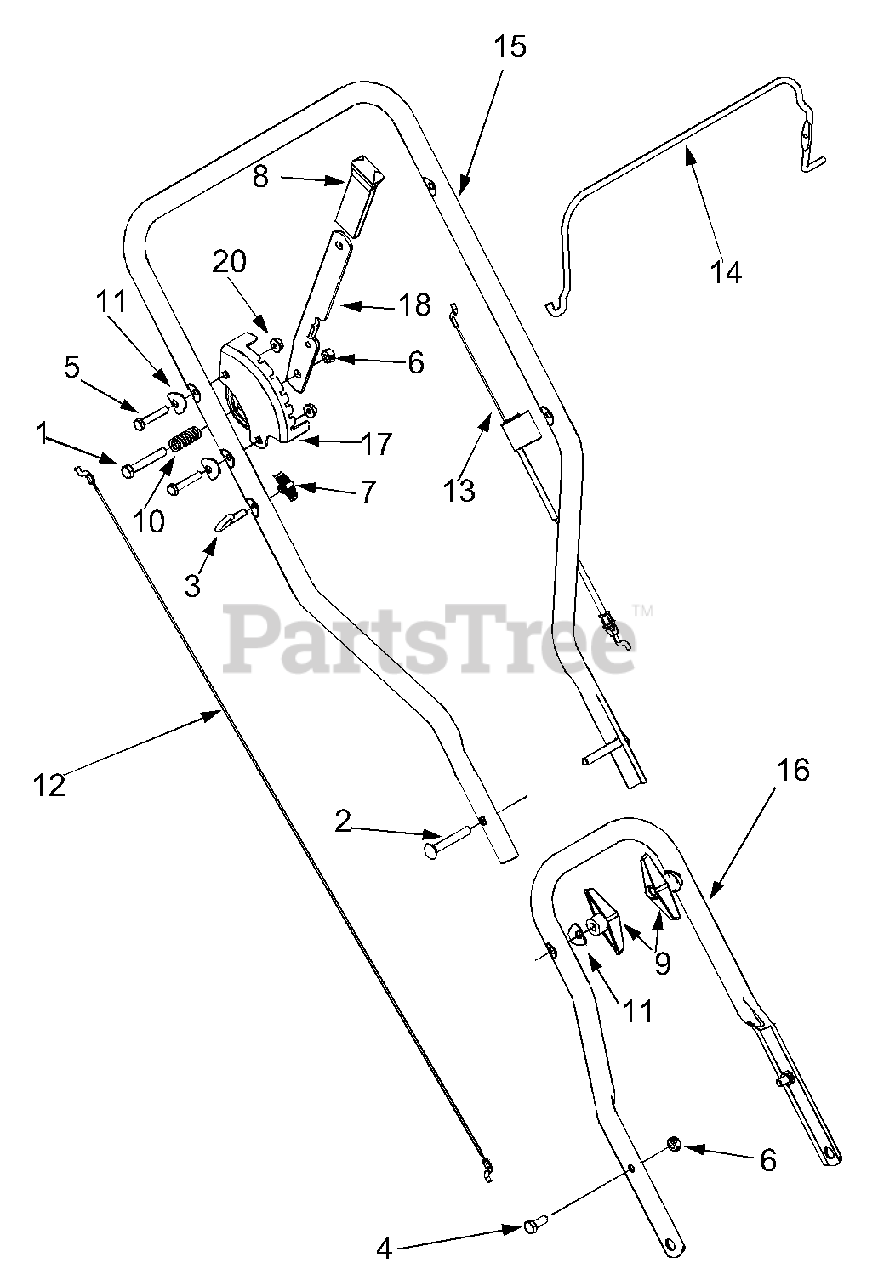

Handle Parts Diagram

  • Title

1

Troy-Bilt 710-3103

Screw, 5/16-18

$4.49

$

In Stock, only 4 left!

0

2

Troy-Bilt 710-0449

Screw, 5/16-18
(Superseded to 710-0572)

$4.49

$

In Stock, only 4 left!

0

3

Troy-Bilt 710-1205

Eye Bolt

$3.99

$

In Stock, only 2 left!

0

4

Troy-Bilt 710-3008

Screw, 5/16-18

$4.49

$

In Stock, Qty 20+

0

5

Troy-Bilt 710-0606

Screw

$5.49

$

In Stock, Qty 9

0

6

Troy-Bilt 712-3004A

Hex Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

7

Troy-Bilt 720-0279

Handle Knob

$4.49

$

Usually ships in 3-6 days

0

8

Troy-Bilt 720-0142

Grip

$3.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 720-0241

Wing Knob
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 732-0369

Compression Spring
(Superseded to 932-0369)

$10.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 736-0451

Saddle Washer,.320 ID x.93 OD

$4.49

$

Usually ships in 3-6 days

0

12

Troy-Bilt 746-04036

Wheel Adjustment Cable
(Superseded to 946-04036)

$18.99

$

In Stock, Qty 7

0

13

Troy-Bilt 746-04035

Control Cable
(Superseded to 946-04035)

$20.99

$

In Stock, only 2 left!

0

14

Troy-Bilt 747-0976A

Bail Handle
(Superseded to 747-0976B)

Variations

Troy-Bilt 747-0976A-0637

Blade Control Bail - POWDER BLACK (0637)

$25.99

$

In Stock, only 1 left!

0

$25.99

$

In Stock, only 1 left!

0

15

Troy-Bilt 749-1225

Upper Handle
(Superseded to 749-1225-0637)

Variations

Troy-Bilt 749-1225-0637

HANDLE UPPER 28.5" - POWDER BLACK (0637)

$

$

Not available

$

$

16

Troy-Bilt 749-4044

Lower Handle
(Superseded to 749-4044-0637)

Variations

Troy-Bilt 749-4044-0637

Lower Handle - POWDER BLACK (0637)

$

$

Not available

$

$

17

Troy-Bilt 781-0741

Depth Index Bracket

$

$

Not available

18

Troy-Bilt 781-0742

Depth Index Lever
(Superseded to 781-0742-0637)

Variations

Troy-Bilt 781-0742-0637

LEVER DEPTH - POWDER BLACK (0637)

$39.99

$

Usually ships in 3-6 days

0

$39.99

$

Usually ships in 3-6 days

0

20

Troy-Bilt 712-3027

Hex Flange Nut, 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0
