TB 553 (25A-553F063) - Troy-Bilt Edger (2003) General Assembly Parts Diagram

Edger

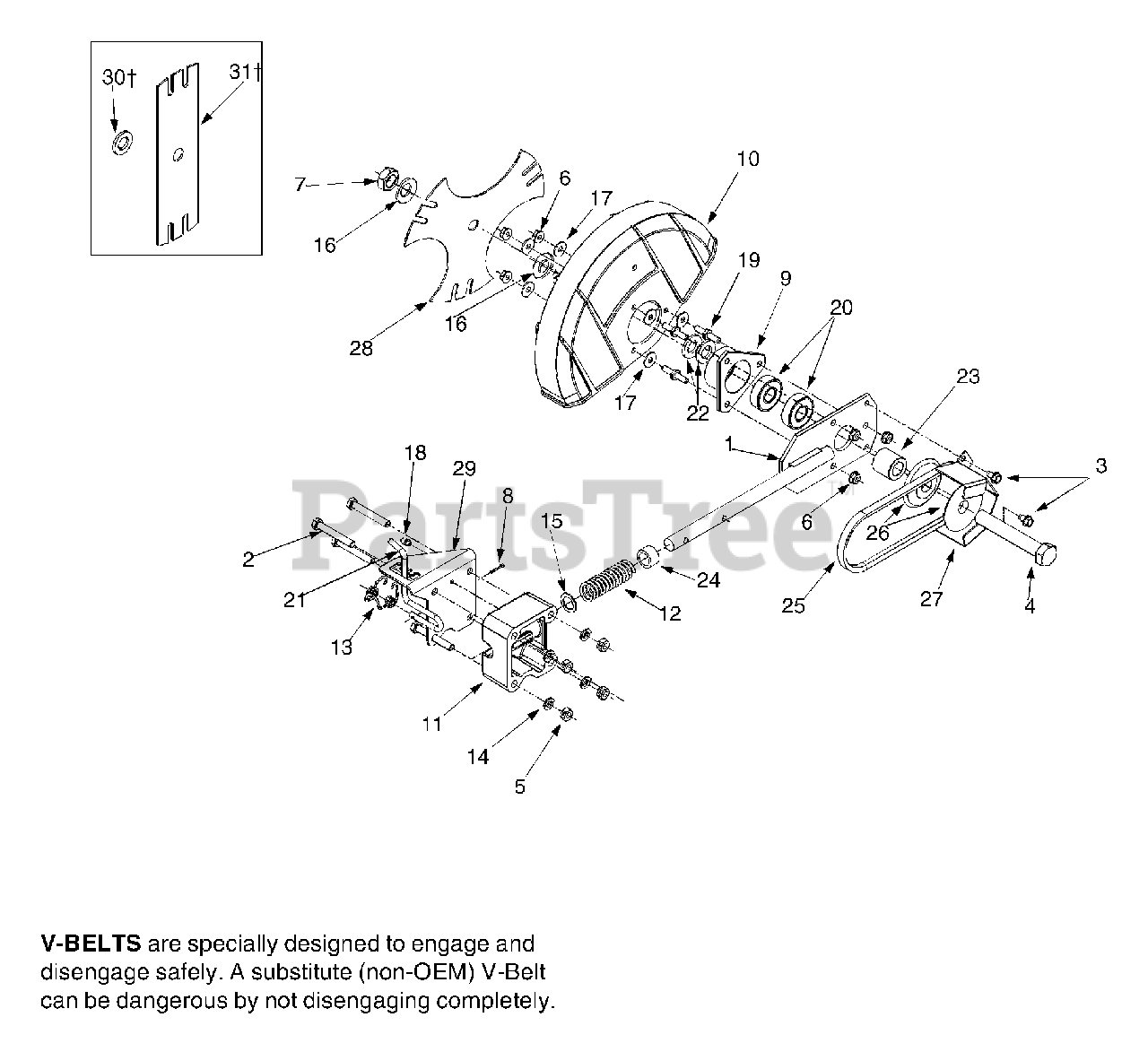

General Assembly Parts Diagram

  • Title

1

Troy-Bilt 687-02019

Blade Plate Assembly
(Superseded to 753-05727)

$

$

Not available

2

Troy-Bilt 710-0395

Hex Screw, 5/16-18

$4.99

$

In Stock, only 1 left!

0

3

Troy-Bilt 710-0599

Self-tapping Screw, 1/4-20

$4.49

$

In Stock, Qty 20+

0

4

Troy-Bilt 710-1143A

Hex Screw, 5/8-18

$11.99

$

In Stock, only 1 left!

0

5

Troy-Bilt 712-3004A

Hex Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 712-3027

Hex Flange Nut, 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 17

0

7

Troy-Bilt 712-3056

Jam Nut, 5/8-18

$4.99

$

In Stock, Qty 13

0

8

Troy-Bilt 714-3010

Cotter Pin

$4.99

$

In Stock, only 1 left!

0

9

Troy-Bilt 718-04012

Bearing Cup

$21.99

$

In Stock, only 1 left!

0

10

Troy-Bilt 731-04158

Blade Guard
(Superseded to 753-05727)

$

$

Not available

11

Troy-Bilt 731-04207

Bearing Block
(Superseded to 931-04207)

$27.99

$

In Stock, only 1 left!

0

12

Troy-Bilt 732-0187

Compression Spring

$2.99

$

Usually ships in 3-6 days

0

13

Troy-Bilt 732-0188A

Double Torsion Spring

$12.99

$

In Stock, Qty 10

0

14

Troy-Bilt 736-0119

Lock Washer
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

15

Troy-Bilt 736-0302

Flat Washer,.632 ID,.943 OD

$

$

Not available

16

Troy-Bilt 736-0317

Bell Washer,.63 ID x 1.2 OD

$7.99

$

In Stock, Qty 20+

0

17

Troy-Bilt 736-3090

Flat Washer,.260 x.72

$6.99

$

In Stock, Qty 11

0

18

Troy-Bilt 737-3000

Lube Fitting, 3/16
(Superseded to 937-3000)

$4.99

$

In Stock, Qty 20+

0

19

Troy-Bilt 738-04025

Pin, 1/4-20
(Superseded to 938-04025)

$

$

Not available

20

Troy-Bilt 741-0524

Bearing,.625 ID x 1.57 OD
(Superseded to 941-0524A)

$23.99

$

In Stock, Qty 20+

0

21

Troy-Bilt 747-04110

Blade Adjustment Rod
(Superseded to 747-04110A)

$17.99

$

In Stock, Qty 20+

0

22

Troy-Bilt 736-04088

Flat Washer

$4.49

$

In Stock, only 2 left!

0

23

Troy-Bilt 750-04105

Spacer,.63 x 1.12 x 1.06
(Superseded to 950-04105)

$15.99

$

Usually ships in 3-6 days

0

24

Troy-Bilt 750-0547

Spacer,.632 ID x.875 OD

$5.99

$

In Stock, only 2 left!

0

25

Troy-Bilt 754-0465

Belt
(Superseded to 954-04032B)

$25.99

$

In Stock, Qty 17

0

26

Troy-Bilt 756-0449

Sheave
(Superseded to 956-0449)

$14.99

$

In Stock, only 2 left!

0

27

Troy-Bilt 781-0427

Spindle Belt Guard
(Superseded to 781-0427-0637)

Variations

Troy-Bilt 781-0427-0637

Belt Guard, Black - POWDER BLACK (0637)

$20.99

$

Usually ships in 3-6 days

0

$20.99

$

Usually ships in 3-6 days

0

28

Troy-Bilt 781-0748

Tri Star Blade

Variations

Troy-Bilt 781-0748-0637

Tri-Cut Edger Blade, Black - POWDER BLACK (0637)

$21.99

$

In Stock, Qty 13

0

$21.99

$

In Stock, Qty 13

0

29

Troy-Bilt 787-01081

Index Bracket
(Superseded to 787-01081A-0637)

Variations

Troy-Bilt 787-01081-0637

Index Edge Bracket - POWDER BLACK (0637)

$6.49

$

Usually ships in 3-6 days

0

$6.49

$

Usually ships in 3-6 days

0

30

Troy-Bilt 736-04088

Flat Washer

$4.49

$

In Stock, only 2 left!

0

31

Troy-Bilt 781-0080

Dual Edger Blade
(Superseded to 781-0080-0637)

Variations

Troy-Bilt 781-0080-0637

Edger Blade, 5/8 Hi-Lift - POWDER BLACK (0637)

$8.99

$

In Stock, Qty 20+

0

$8.99

$

In Stock, Qty 20+

0
