TB 5518 (41AY85AR966) - Troy-Bilt Chainsaw Engine Assembly Parts Diagram

Chainsaw

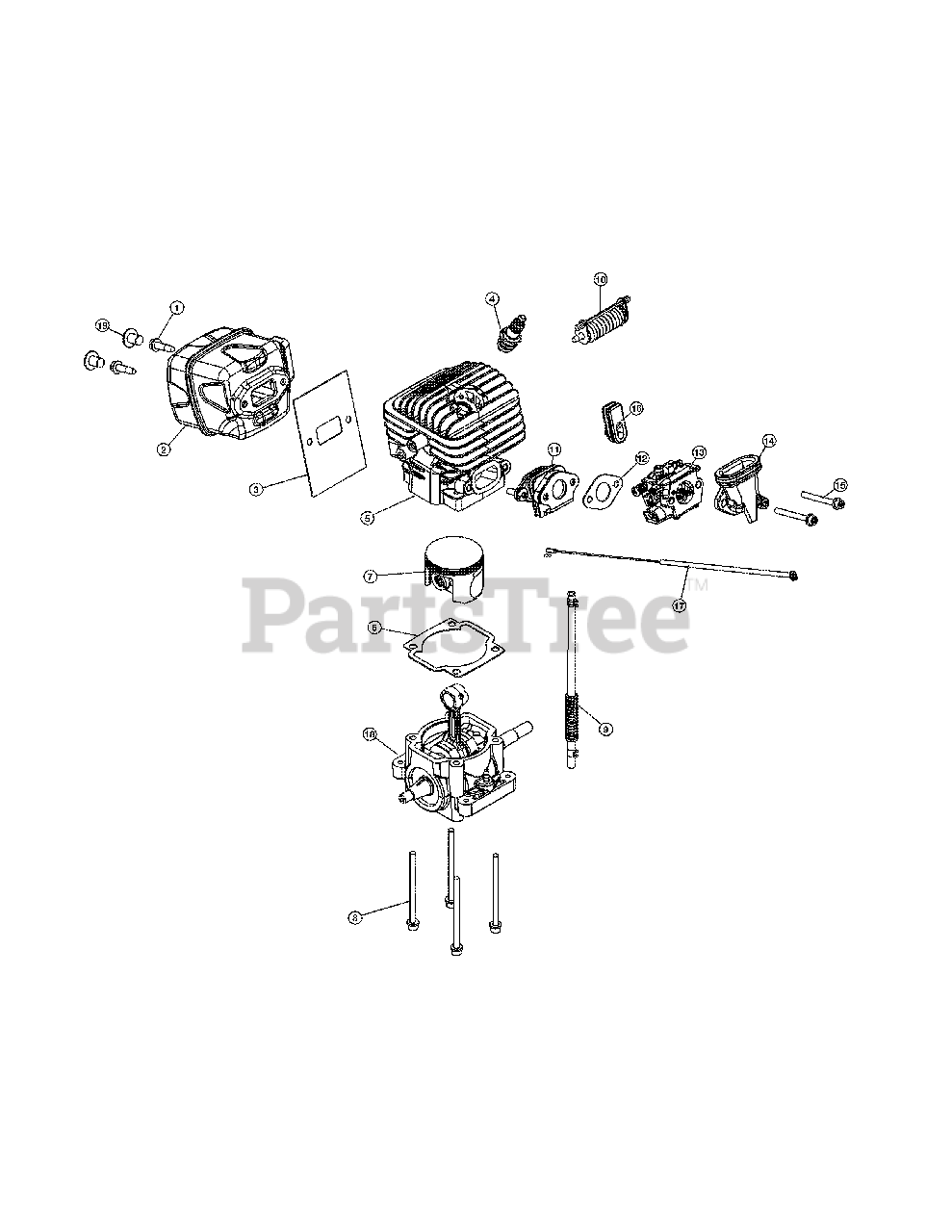

Engine Assembly Parts Diagram

  • Title

1

MTD 753-06397

Muffler Screw

$

$

Not available

2

Troy-Bilt 753-06268

Muffler Assembly (Incl.Ref No. 1, 3 & 19)

$

$

Not available

3

Troy-Bilt 753-06398

Muffler Gasket

$3.49

$

Usually ships in 3-6 days

0

4

Troy-Bilt 753-06269

Spark Plug

$

$

Not available

5

Troy-Bilt 753-06399

Cylinder Assembly (Incl.Ref No. 6, 8 & 10)

$

$

Not available

6

Troy-Bilt 753-06400

Cylinder Gasket

$3.49

$

Usually ships in 3-6 days

0

7

Troy-Bilt 753-06401

Piston Assembly

$

$

Not available

8

Troy-Bilt 753-06402

Cylinder Hardware

$2.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 753-06403

Breather Hose w/clamp

$

$

Not available

10

Troy-Bilt 753-06404

Isolator Assembly

$6.49

$

Usually ships in 3-6 days

0

11

Troy-Bilt 753-06405

Insulator Assembly

$

$

Not available

12

Troy-Bilt 753-06406

Carburetor Gasket

$

$

Not available

13

Troy-Bilt 753-06407

Carburetor
(Superseded to 753-06728)

$32.99

$

In Stock, only 1 left!

0

14

MTD 753-06385

Boot & Bracket Assembly

$

$

Not available

15

Troy-Bilt 753-06410

Carburetor Hardware

$2.99

$

Usually ships in 3-6 days

0

16

Troy-Bilt 753-06411

Grommet

$2.49

$

Usually ships in 3-6 days

0

17

Troy-Bilt 753-06409

Throttle Cable

$

$

Not available

18

Troy-Bilt 753-06412

Shortblock Assembly (Incl.Ref No. 4-10)

$102.99

$

Usually ships in 3-6 days

0

19

Troy-Bilt 753-06507

Muffler Plug

$

$

Not available
