TB 55 B (41AET55G063) - Troy-Bilt String Trimmer, Battery Battery Trimmer 12 Volt Parts Diagram

String Trimmer, Battery

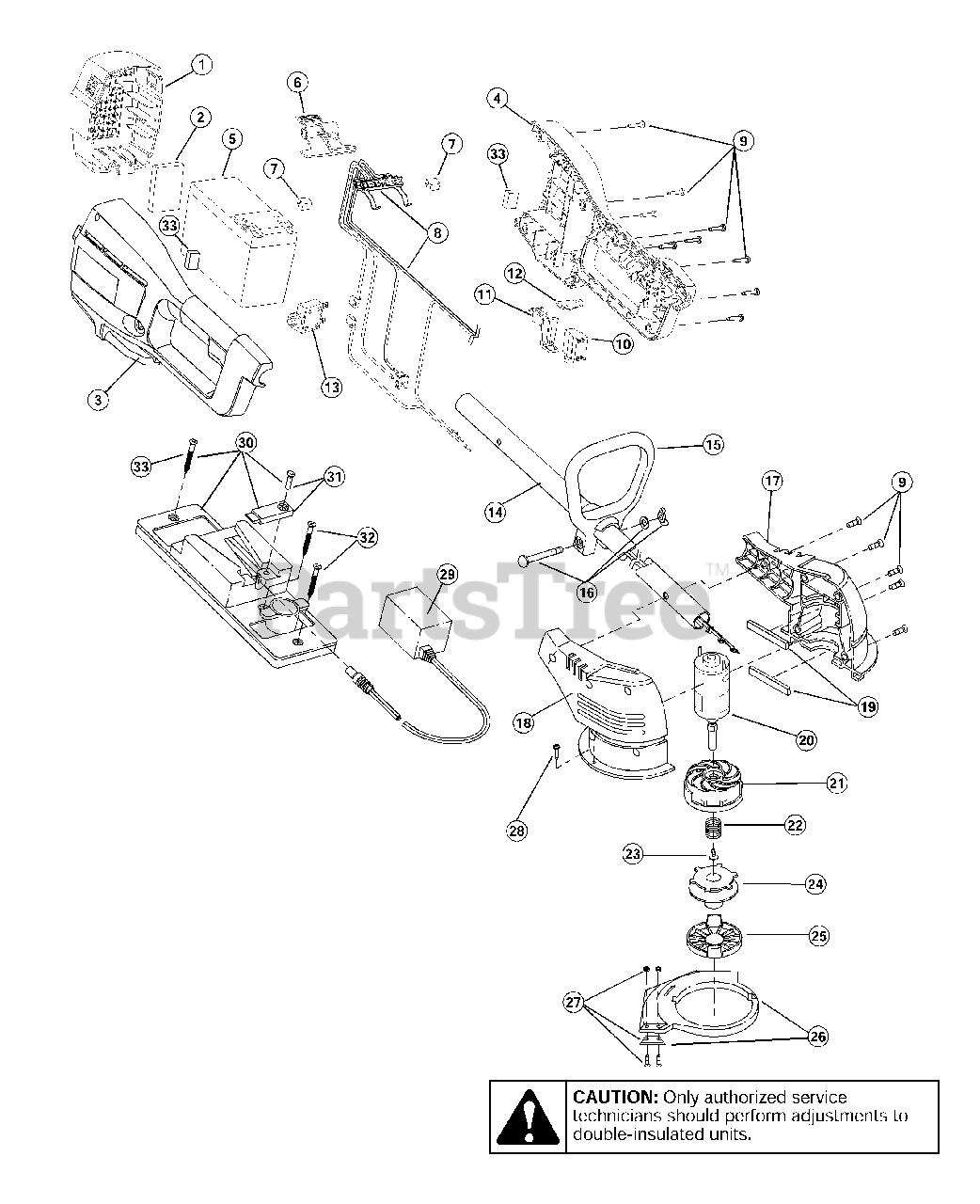

Battery Trimmer 12 Volt Parts Diagram

  • Title
1

Troy-Bilt 791-182696

Battery Door

$35.99

$

Usually ships in 3-6 days

0

$

$

Not available

3

Troy-Bilt 753-04354

Right Battery Housing
(Superseded to 753-04487)

$

$

Not available

4

Troy-Bilt 753-04355

Left Battery Housing
(Superseded to 753-04487)

$

$

Not available

5

MTD 791-182391

12 Volt Battery

$

$

Not available

6

Troy-Bilt 791-182699

Battery Latch

$

$

Not available

7

Troy-Bilt 791-182702

Terminal Spacer

$

$

Not available

8

Troy-Bilt 791-182724

Wiring Harness Assembly

$

$

Not available

9

Troy-Bilt 791-181482

Housing Screw

$4.49

$

Usually ships in 3-6 days

0

10

MTD 791-180150

Switch Assembly

Note: (includes 11)

$

$

Not available

$

$

Not available

12

Troy-Bilt 791-180364

Lock-Off Button
(Superseded to 791-182705)

$8.99

$

Usually ships in 3-6 days

0

13

Troy-Bilt 791-180365

Circuit Breaker

$26.99

$

Usually ships in 3-6 days

0

14

MTD 791-180367

Motor Wire Tube

$

$

Not available

15

Troy-Bilt 791-153064

D-Handle

Note: (includes 16)

$

$

Not available

16

Troy-Bilt 791-181587

Handle Hardware

$19.99

$

In Stock, only 1 left!

0

17

MTD 753-04356

Left Motor Housing

$

$

Not available

18

Troy-Bilt 753-04357

Right Motor Housing

$

$

Not available

$

$

Not available

20

Troy-Bilt 791-182715

Motor with Shaft

$79.99

$

Usually ships in 3-6 days

0

21

Troy-Bilt 791-180372

Outer Spool and Eyelet/Motor Fan

$

$

Not available

$10.99

$

In Stock, only 1 left!

0

$

$

Not available

24

Troy-Bilt 791-180292

Inner Reel with .080" Line
(Superseded to 791-180292B)

$19.99

$

Usually ships in 3-6 days

0

25

MTD 791-180376

Reel Cover

$

$

Not available

26

MTD 791-180293

Guard and Blade Assembly

$

$

Not available

27

MTD 791-180377

Blade Assembly

$

$

Not available

28

Troy-Bilt 791-182469

Guard Screw
(Superseded to 753-1202)

$3.99

$

Usually ships in 3-6 days

0

29

Troy-Bilt 791-182534

12 Volt Charger

$71.99

$

Usually ships in 3-6 days

0

30

MTD 791-180295

Charging Station Stand

Note: (includes 31 & 32)

$

$

Not available

31

Troy-Bilt 791-180378

Barrel Clamp with Screw

$

$

Not available

32

Troy-Bilt 791-182709

Mounting Screw

$

$

Not available

33

Troy-Bilt 753-04007

Front Battery Pads

$

$

Not available

Troy-Bilt 791-610375

Replacement Line (.080 Diameter)

Note: Optional Accessory

$

$

Not available

Troy-Bilt 791-180327

Bump Head Assembly

Note: (includes 21-25); Optional Accessory

$

$

Not available
