TB 547/46 (13B877BT309) - Troy-Bilt 46" Lawn Tractor, 547cc (2023) Spindle Parts Diagram

46" Lawn Tractor, 547cc

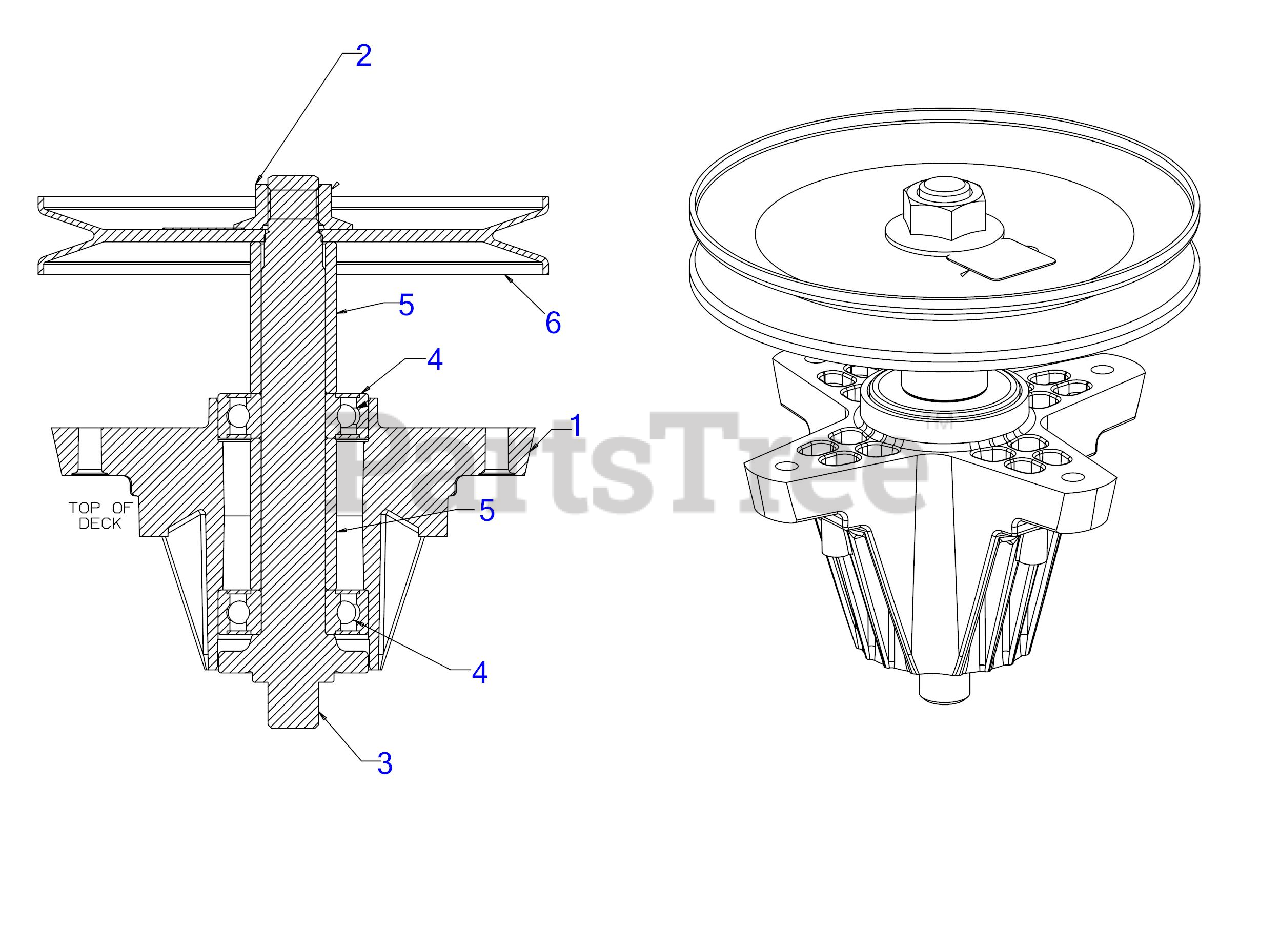

Spindle Parts Diagram

  • Title
1

MTD 619-04183B

DECK SPINDLE HOUSING
(Superseded to 719-07293-M)

$44.99

$

In Stock, Qty 5

0

2

MTD 712-05134

FLANGE NUT 5/8-18

$6.49

$

In Stock, Qty 20+

0

3

MTD 738-1186A

BLADE SPINDLE SHAFT STAR 6.11 LG

$49.99

$

In Stock, Qty 14

0

4

MTD 941-0919B

BALL BEARING

$21.99

$

In Stock, Qty 20+

0

5

MTD 750-04936

SPACER- .792 x 1.060 x 1.860

$6.99

$

In Stock, Qty 20+

0

6

MTD 756-05030

DECK PULLEY 6.74" DIA

$25.99

$

In Stock, Qty 6

0

MTD 918-06989

SPINDLE ASSEMBLY

$104.99

$

In Stock, Qty 6

0

MTD 490-130-Y025

Troy-Bilt 46" SPINDLE ASSEMBLY (06989)

Note: Retail Packaged Part

$131.99

$

Usually ships in 3-6 days

0
