TB 547/46 (13B877BT309) - Troy-Bilt 46" Lawn Tractor, 547cc (2023) Deck Parts Diagram

46" Lawn Tractor, 547cc

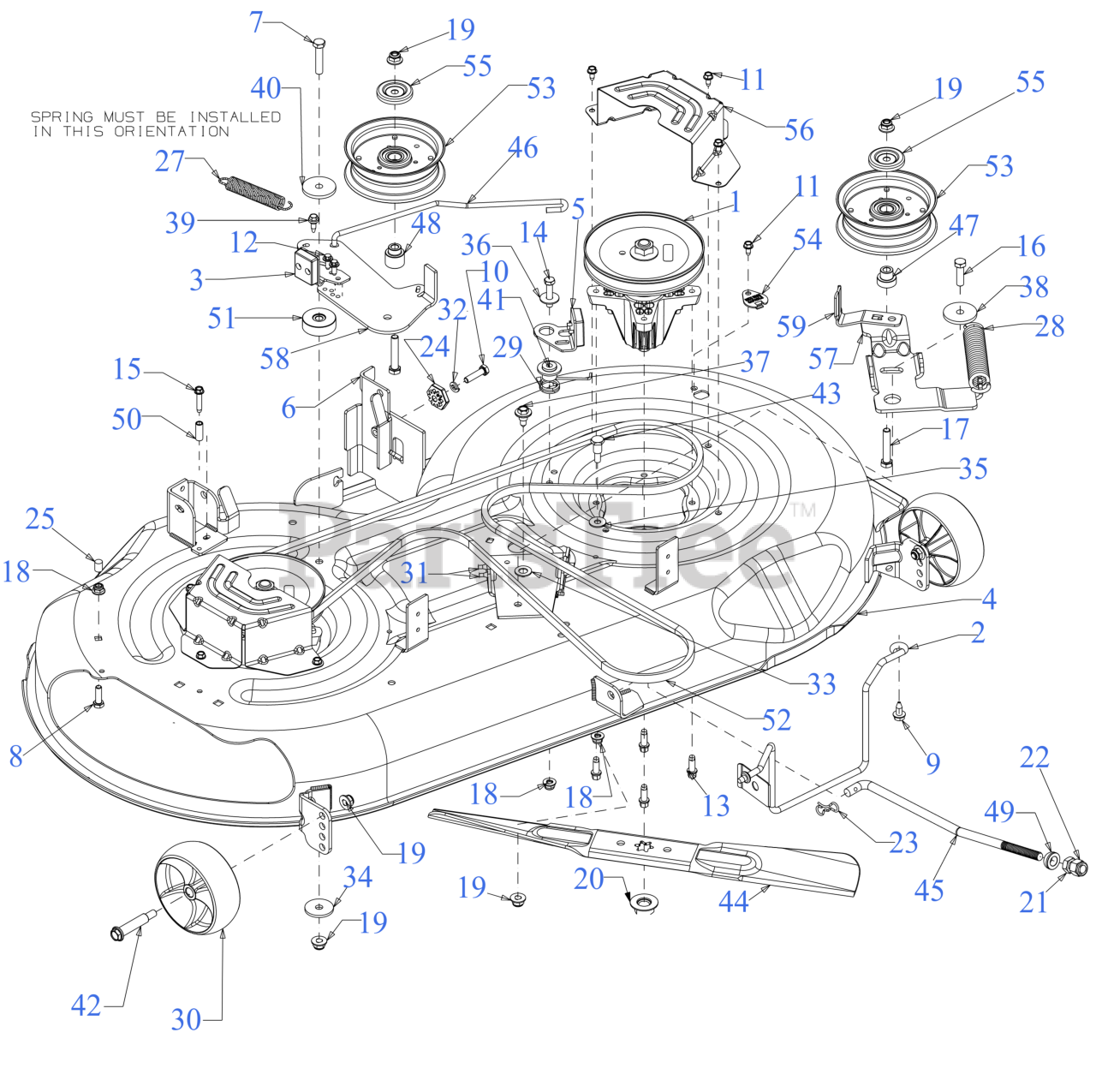

Deck Parts Diagram

  • Title

1

MTD 918-06989

SPINDLE ASSEMBLY-6.74" W/O ZERK

Note: (See Separate Breakdown)

$104.99

$

In Stock, Qty 6

0

1

MTD 490-130-Y025

Troy-Bilt 46" SPINDLE ASSEMBLY (06989)

$131.99

$

Usually ships in 3-6 days

0

2

MTD 683-04414-0637

BELT KEEPER BRACKET ASSEMBLY (POWDER BLACK)

$25.99

$

Usually ships in 3-6 days

0

2

MTD 747-04857

BELT KEEPER ROD

Note: (Not Shown)

$22.99

$

In Stock, Qty 14

0

3

MTD 983-05182B

DECK BRAKE ASSEMBLY (RH)

$99.99

$

Usually ships in 3-6 days

0

3

MTD 728-0175

RIVOT

Note: (Not Shown)

$4.99

$

In Stock, Qty 11

0

3

MTD 761-05007

DECK BRAKE PAD

Note: (Not Shown)

$10.99

$

In Stock, Qty 10

0

4

MTD 983-05196A

46" DECK SHELL

Note: *CHOOSE COLOR WHEN ORDERING*

$695.99

$

Usually ships in 3-6 days

0

4

MTD 783-08651

DECK SPRING BRACKET

Note: (Not Shown)

$12.99

$

Usually ships in 3-6 days

0

5

MTD 983-05396

DECK BRAKE ASSEMBLY

$107.99

$

In Stock, Qty 19

0

5

MTD 728-0175

RIVOT

Note: (Not Shown)

$4.99

$

In Stock, Qty 11

0

5

MTD 761-05007

DECK BRAKE PAD

Note: (Not Shown)

$10.99

$

In Stock, Qty 10

0

6

MTD 683-06474

DECK HANGER BRACKET (LH)

Note: *CHOOSE COLOR WHEN ORDERING*

$33.99

$

Usually ships in 3-6 days

0

7

MTD 710-0347

HEX SCREW 3/8-16 x 1.75 GR5

$5.49

$

In Stock, Qty 20+

0

8

MTD 710-0376

SCREW 5/16-18 x 1.0 GR5

$3.99

$

In Stock, only 4 left!

0

9

MTD 710-04484

SCREW 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

10

MTD 710-0528

SCREW 5/16-18 x 1.25 GR5

$4.49

$

In Stock, Qty 20+

0

11

MTD 710-0599

SCREW 1/4-20 X.500

$4.49

$

In Stock, Qty 20+

0

12

MTD 710-06133

SCREW M6-1 x .625

$3.99

$

In Stock, Qty 13

0

13

MTD 710-06322

SCREW 5/16-18 x .875

$5.49

$

In Stock, Qty 5

0

14

MTD 710-0805A

SCREW 5/16-18 x 1.5 LG

$4.49

$

In Stock, only 3 left!

0

15

MTD 710-0809

SCREW 1/4-20 x 1.25

$6.99

$

In Stock, Qty 19

0

16

MTD 710-3005

SCREW 3/8-16 x 1.25 GR5

$3.99

$

In Stock, Qty 12

0

17

MTD 710-3096

SCREW 3/8-16 x 2.0 GR 8

$7.99

$

Usually ships in 3-6 days

0

18

MTD 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

19

MTD 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

20

MTD 712-05134

FLANGE NUT 5/8-18

$6.49

$

In Stock, Qty 20+

0

21

MTD 712-3048

HEX NUT

$4.99

$

In Stock, Qty 7

0

22

MTD 712-3083

HEX LOCK NUT NYLON

$4.49

$

In Stock, Qty 20+

0

23

MTD 714-04043

PIN:COTTER

$4.99

$

In Stock, Qty 20+

0

24

MTD 917-04074

DECK ADJUSTMENT GEAR

$13.99

$

In Stock, Qty 20+

0

25

MTD 720-05010

VINYL CAP

$4.49

$

In Stock, Qty 7

0

27

MTD 732-04629

EXTENSION SPRING

$28.99

$

In Stock, Qty 6

0

28

MTD 732-04909

EXTENSION SPRING

$13.99

$

In Stock, only 1 left!

0

29

MTD 732-08321

TORSION SPRING

$6.99

$

In Stock, only 1 left!

0

30

MTD 734-06305A

DECK WHEEL (5.0 DIA x 1.875)

$15.99

$

In Stock, Qty 18

0

31

MTD 735-0271A

BUMPER, .62 DIA x .3

$8.99

$

In Stock, only 4 left!

0

32

MTD 936-0119

LOCK WASHER 5/16

$4.99

$

In Stock, Qty 20+

0

33

MTD 936-0226

FLAT WASHER

$3.99

$

In Stock, only 1 left!

0

34

MTD 736-0227

FLAT WASHER .390x1.500x.134

$6.49

$

In Stock, Qty 13

0

35

MTD 736-0371

FLAT WASHER

$4.49

$

In Stock, only 3 left!

0

36

MTD 736-3078

FLAT WASHER 344X1.00

$4.49

$

In Stock, only 4 left!

0

37

MTD 738-04091A

SHOULDER SCREW .43X.29X5/16-18 TT

$3.99

$

Usually ships in 3-6 days

0

38

MTD 738-04162C

SHOULDER SPACER

$13.99

$

In Stock, Qty 20+

0

39

MTD 738-04184A

SHOULDER SCREW

$6.99

$

In Stock, Qty 15

0

40

MTD 738-05082

SHOULDER SPACER

$8.49

$

In Stock, Qty 6

0

41

MTD 738-05272

DOUBLE SHOULDER SPACER .750 x .135

$7.49

$

In Stock, only 1 left!

0

42

MTD 738-06694

SHOULDER BOLT (.50 X 2.0 x 3/8 -16)

$7.99

$

Usually ships in 3-6 days

0

43

MTD 738-0754

SHOULDER SCREW

$4.49

$

In Stock, only 2 left!

0

44

MTD 942-04290A

23.25" BLADE (2N1) (STAR)

$34.99

$

In Stock, Qty 20+

0

44

MTD 490-110-M110

Genuine Factory Parts 46" BLADE SET(STAR 2IN1) (04290)
(Superseded to 490-110-Y110)

Note: Retail Packaged Part

$68.99

$

In Stock, only 4 left!

0

44

MTD 942-04290-L

46" 6 PT STAR LOW LIFT/SAND BLADE
(Superseded to 742-04290-L0606)

$27.99

$

In Stock, only 2 left!

0

44

MTD 490-110-C181

Cub Cadet 46" LOWLIFT BLADE SET

Note: Retail Packaged Part

$79.99

$

In Stock, only 2 left!

0

44

MTD 490-110-M181

Genuine Factory Parts 46" LOWLIFT BLADE SET

Note: Retail Packaged Part

$79.99

$

Usually ships in 3-6 days

0

44

MTD 942-04290-X

23.25" BLADE (2N1) (XTREME) (STAR)
(Superseded to 742P04290A-X)

$23.99

$

In Stock, Qty 17

0

44

MTD 490-110-C156

Cub Cadet BLADE SET (XTREME) 46" CUB 04290-X

Note: Retail Packaged Part

$

$

Not available

45

MTD 747-05141B

DECK FRONT LIFT ROD

$22.99

$

In Stock, Qty 17

0

46

MTD 747-06538

DECK BRAKE ROD

$14.99

$

In Stock, Qty 11

0

47

MTD 748-05029A

SHOULDER SPACER

$4.99

$

In Stock, Qty 20+

0

48

MTD 748-05037B

SHOULDER SPACER

$5.49

$

In Stock, Qty 11

0

49

MTD 748-06584

DECK LIFT PIVOT CUP

$4.49

$

In Stock, only 2 left!

0

50

MTD 750-0566A

SPACER

$9.99

$

In Stock, only 1 left!

0

51

MTD 750-06184

SPACER .385ID x 1.75OD x .585THK

$11.99

$

In Stock, only 1 left!

0

52

MTD 954-04219

V-BELT A SEC x 103.24

$50.99

$

In Stock, Qty 20+

0

52

MTD 490-501-M009

Genuine Factory Parts 46" DECK DRIVE BELT
(Superseded to 490-501-Y009)

Note: Retail Packaged Part

$50.99

$

In Stock, only 1 left!

0

53

MTD 756-05034A

IDLER PULLEY 4.50" DIA

$45.99

$

In Stock, Qty 20+

0

54

MTD 783-06464

DECK WASH PLUG

$4.49

$

In Stock, only 3 left!

0

55

MTD 783-08389

IDLER PULLEY CAP

$5.99

$

In Stock, Qty 20+

0

56

MTD 783-08547

DECK BELT COVER 46"

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 783-08547-0637

Deck Belt Cover, Black - POWDER BLACK (0637)

$14.99

$

In Stock, Qty 20+

0

MTD 783-08547-0606

Deck Belt Cover, 46" - MAJESTIC ORANGE (0606)

$14.99

$

In Stock, only 3 left!

0

MTD 783-08547-4044

Deck Belt Cover, 46" - CRAFTSMAN RED (4044)

$14.99

$

In Stock, only 1 left!

0

MTD 783-08547-0691

Deck Belt Cover, 46" - BLACK JACK (0691)

$14.99

$

In Stock, only 3 left!

0

MTD 783-08547-0638

COVER-DECK BELT 46 - MTD/TROY-BILT RED (0638)

$14.99

$

Usually ships in 3-6 days

0

MTD 783-08547-0709

COVER-DECK BELT 46 - MASTERCRAFT GREEN (0709)

$14.99

$

Usually ships in 3-6 days

0

$12.99

$

Usually ships in 3-6 days

0

57

MTD 783-08618

IDLER BRACKET 46T (LH)

$25.99

$

In Stock, Qty 6

0

58

MTD 783Z08654C

DECK IDLER BRACKET
(Superseded to 783-08654C)

$71.99

$

In Stock, Qty 6

0

59

MTD 783-08690A

BELT KEEPER

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 783-08690A-0637

Belt Keeper, Black - POWDER BLACK (0637)

$12.99

$

In Stock, Qty 20+

0

$11.99

$

Usually ships in 3-6 days

0
