TB 547/46 (13B877BT309) - Troy-Bilt 46" Lawn Tractor, 547cc (2021) Fuel Tank Parts Diagram

46" Lawn Tractor, 547cc

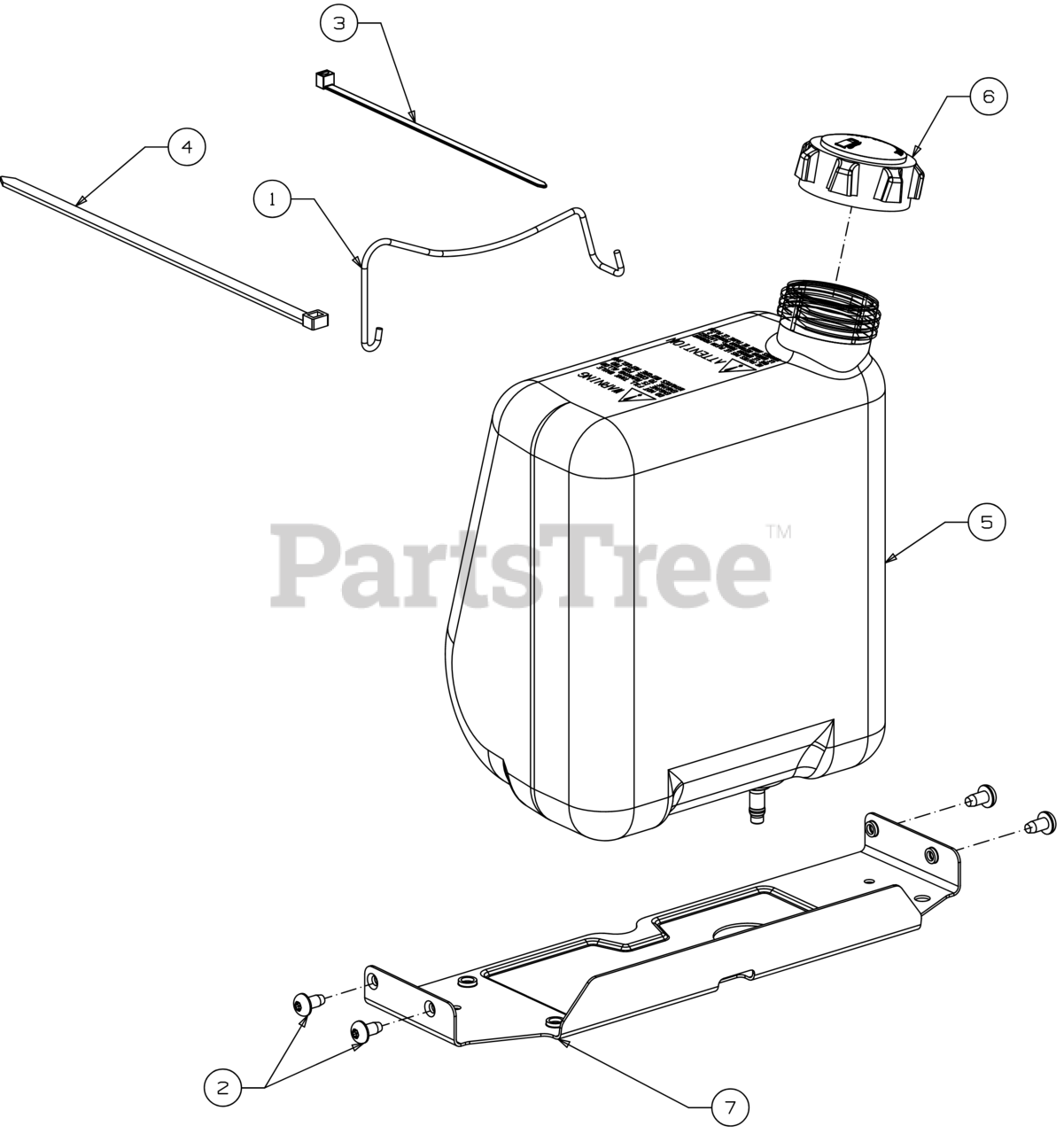

Fuel Tank Parts Diagram

  • Title

1

MTD 683-04448-0637

BATTERY ROD ASSEMBLY (POWDER BLACK)

Note: (If Equipped)

$10.99

$

In Stock, Qty 14

0

2

MTD 710-05070A

SCREW 1/4-20 x .5

$6.99

$

In Stock, Qty 7

0

3

MTD 725-0157

7" CABLE TIE

$3.99

$

In Stock, Qty 20+

0

4

MTD 726-0230

CABLE TIE 36"

$27.99

$

In Stock, only 1 left!

0

5

MTD 751-0555B

FUEL TANK 1.5 GAL
(Superseded to 751-0555D)

$89.99

$

In Stock, only 1 left!

0

6

MTD 751-0603A

FUEL CAP (MAX 10% ETHANOL)
(Superseded to 751-0603B)

$23.99

$

Usually ships in 3-6 days

0

7

MTD 783-07083A

FUEL TANK BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 783-07083A-0637

Fuel Tank Bracket - POWDER BLACK (0637)

$28.99

$

Usually ships in 3-6 days

0

$22.99

$

Usually ships in 3-6 days

0
