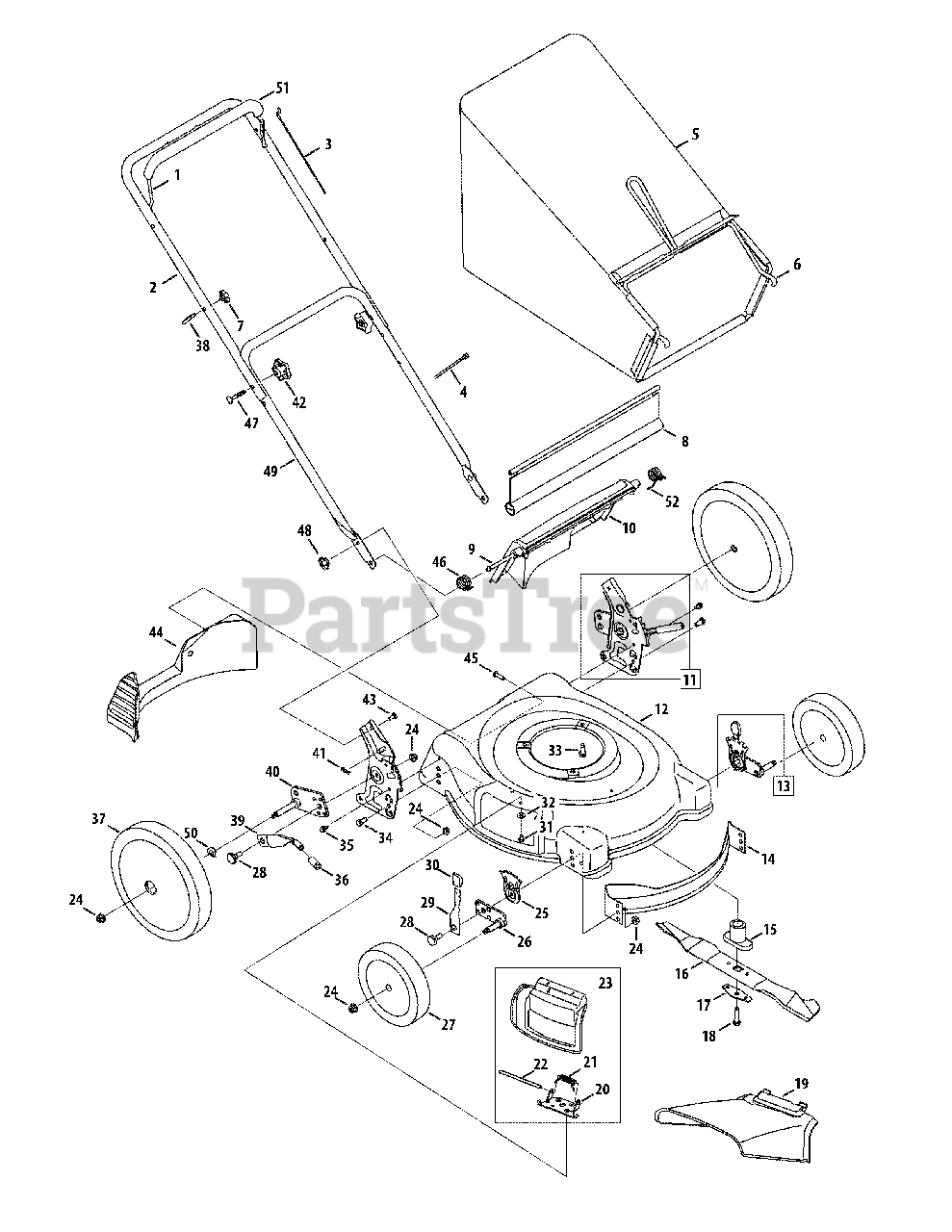

TB 542 (11A-542Q766) - Troy-Bilt Walk-Behind Mower (2008) General Assembly Parts Diagram

Walk-Behind Mower

General Assembly Parts Diagram

  • Title
1

Troy-Bilt 747-1161A

Blade Control

Variations

Troy-Bilt 747-1161A-0637

Operator Bail, Black - POWDER BLACK (0637)

$13.99

$

In Stock, only 4 left!

0

$13.99

$

In Stock, only 4 left!

0

2

Troy-Bilt 749-1092A

Upper Handle

Variations

Troy-Bilt 749-1092A-0637

Upper Handle, Black - POWDER BLACK (0637)

$48.99

$

In Stock, only 1 left!

0

Troy-Bilt 749-1092A-0638

HANDLE-UPPER - MTD/TROY-BILT RED (0638)

$48.99

$

Usually ships in 3-6 days

0

$48.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 746-0957

Control Cable, 37.25"
(Superseded to 946-0957)

Note: (brake)

$17.99

$

In Stock, Qty 20+

0

3

Troy-Bilt 746-1130

Control Cable, 40"
(Superseded to 946-1130)

Note: (brake)

$17.99

$

In Stock, Qty 11

0

3

Troy-Bilt 746-04104

Control Cable, 40", Snap-On, Kaw
(Superseded to 946-04104)

Note: (brake)

$44.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, only 2 left!

0

5

Troy-Bilt 664-04011

Grass Bag Assembly
(Superseded to 964-04007A)

$130.99

$

In Stock, Qty 15

0

6

Troy-Bilt 747-04080A

Grass Bag Frame

Variations

Troy-Bilt 747-04080A-0637

Grass Bag Frame, 21" - POWDER BLACK (0637)

$59.99

$

In Stock, Qty 5

0

$59.99

$

In Stock, Qty 5

0

7

Troy-Bilt 720-0279

Handle Knob

$4.49

$

Usually ships in 3-6 days

0

8

Troy-Bilt 731-05642

Trailshield
(Superseded to 731-05642A)

$28.99

$

In Stock, Qty 9

0

9

$17.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt 731-05865

Rear Discharge Door
(Superseded to 731-06847)

$28.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 687-02280A

Rear Handle Bracket Assy. - LH
(Superseded to 987-02280A)

$53.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 687-02279A

Rear Handle Bracket Assy. - RH
(Superseded to 987-02279A)

$53.99

$

Usually ships in 3-6 days

0

12

Troy-Bilt 787-01279

Deck 21-inch

Variations

Troy-Bilt 787-01279-4043

DECK-21" - CRAFTSMAN METALLIC GRAY (4043)

$

$

Not available

MTD 787-01279-0638

Deck 21-inch - Red - MTD/TROY-BILT RED (0638)

$

$

Not available

Troy-Bilt 787-01279-0716

DECK-21" - CUB YELLOW-99 (0716)

$

$

Not available

Troy-Bilt 787-01279-0729

21" DECK (STORM GREY) - STORM GRAY (0729)

$

$

Not available

$

$

13

Troy-Bilt 687-02075B

Front Hgt. Adj. Assy., 8" Whl. - LH
(Superseded to 987-02075B)

$35.99

$

In Stock, only 2 left!

0

13

Troy-Bilt 687-02074B

Front Hgt. Adj. Assy., 8" Whl. - RH
(Superseded to 987-02074B)

$40.99

$

In Stock, only 2 left!

0

14

Troy-Bilt 782-5002B

Front Baffle
(Superseded to 782P5002B)

$

$

Not available

15

Troy-Bilt 748-04082

Blade Adapter - 25mm

Note: (Honda engine)

$37.99

$

Usually ships in 3-6 days

0

15

Troy-Bilt 748-0377C

Blade Adapter w/Star
(Superseded to 748-0377E)

$19.99

$

In Stock, only 3 left!

0

16

Troy-Bilt 742-0741

21-inch Mulching Blade
(Superseded to 942-0741A)

$29.99

$

In Stock, Qty 20+

0

17

Troy-Bilt 736-0524B

Bell Blade Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, Qty 18

0

18

Troy-Bilt 710-1257

Hex Screw, 3/8-24 x 2.5

$7.99

$

In Stock, only 1 left!

0

19

Troy-Bilt 731-04177

Side Discharge Chute

$19.99

$

In Stock, Qty 20+

0

20

Troy-Bilt 17032A

Deflector Chute Adaptor

$10.99

$

In Stock, only 2 left!

0

21

Troy-Bilt 732-1014

Torsion Spring
(Superseded to 732-1014C)

$7.99

$

In Stock, Qty 20+

0

22

Troy-Bilt 747-0710

Hinge Pin
(Superseded to 747-0710A)

$4.49

$

In Stock, Qty 20+

0

23

Troy-Bilt 687-02055

Mulch Plug Assembly
(Superseded to 987-02055)

$27.99

$

In Stock, Qty 8

0

24

Troy-Bilt 712-04065

Flange Lock Nut 3/8-16

$3.99

$

In Stock, Qty 20+

0

25

Troy-Bilt 787-01290

Height Adjustment Plate
(Superseded to 787-01290A)

$12.99

$

In Stock, only 2 left!

0

26

Troy-Bilt 687-02337

Pivot Arm Assy RH (8" wheel)
(Superseded to 987-02337)

$17.99

$

In Stock, only 1 left!

0

26

Troy-Bilt 687-02338

Pivot Arm Assy LH (8" wheel)
(Superseded to 987-02338)

$17.99

$

Usually ships in 3-6 days

0

27

Troy-Bilt 734-04014B

Front Wheel
(Superseded to 753-08175)

$43.99

$

In Stock, Qty 18

0

28

Troy-Bilt 738-04266

Shoulder Scr., .5D x .385

$6.49

$

Usually ships in 3-6 days

0

29

Troy-Bilt 732-0404

Front Spring Lever
(Superseded to 94832)

$10.99

$

In Stock, only 3 left!

0

30

Troy-Bilt 720-0426

Height Adjust Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

31

Troy-Bilt 710-0599

TT Screw, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

32

Troy-Bilt 736-0270

Bell Washer

$3.99

$

In Stock, Qty 20+

0

33

Troy-Bilt 710-0654A

TT Screw, 3/8-16 x 1.0

$4.49

$

In Stock, only 3 left!

0

34

Troy-Bilt 710-0216

Hex Screw, 3/8-16 x .75

$4.49

$

In Stock, Qty 16

0

35

Troy-Bilt 710-1652

TT Screw, 1/4-20 x .625

$4.49

$

In Stock, Qty 20+

0

36

Troy-Bilt 720-0312

Foam Grip

$4.99

$

In Stock, Qty 5

0

37

Troy-Bilt 734-04127

Rear Wheel
(Superseded to 734-04019)

$70.99

$

In Stock, Qty 20+

0

38

$3.99

$

In Stock, only 2 left!

0

39

MTD 732-0866

Rear Hi-Wheel Spring Lever

$

$

Not available

40

Troy-Bilt 687-02335

Rear Pivot Arm Assy - RH
(Superseded to 987-02335)

$27.99

$

Usually ships in 3-6 days

0

40

Troy-Bilt 687-02336

Rear Pivot Arm Assy - LH
(Superseded to 987-02336)

$

$

Not available

41

Troy-Bilt 714-0104

Hairpin Clip

$4.49

$

In Stock, Qty 20+

0

42

Troy-Bilt 720-04072

Star Knob
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 20+

0

43

Troy-Bilt 710-0703

Carriage Bolt ,1/4-20 x .75

$4.49

$

In Stock, Qty 15

0

44

Troy-Bilt 731-04150C

Rear Baffle

$42.99

$

In Stock, only 2 left!

0

45

Troy-Bilt 710-1241

Screw HL, 1/4-15 x 1.00

$6.99

$

In Stock, Qty 19

0

46

Troy-Bilt 732-04090A

Torsion Spring - RH

$7.99

$

Usually ships in 3-6 days

0

47

Troy-Bilt 710-1174

Carriage Bolt, 5/16-18 x 2

$7.49

$

In Stock, Qty 20+

0

48

Troy-Bilt 712-0397

Wing Nut
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

49

Troy-Bilt 749-0928A

Lower Handle
(Superseded to 749-0928A-0637)

Variations

Troy-Bilt 749-0928A-0637

Lower Handle - POWDER BLACK (0637)

$33.99

$

In Stock, only 3 left!

0

$33.99

$

In Stock, only 3 left!

0

50

Troy-Bilt 736-0182

Spring Washer

$4.49

$

In Stock, Qty 7

0

51

Troy-Bilt 731-04204

Deluxe Bail Cover - Red

$11.99

$

In Stock, only 4 left!

0

52

Troy-Bilt 732-04089A

Torsion Spring - LH

$7.99

$

Usually ships in 3-6 days

0
