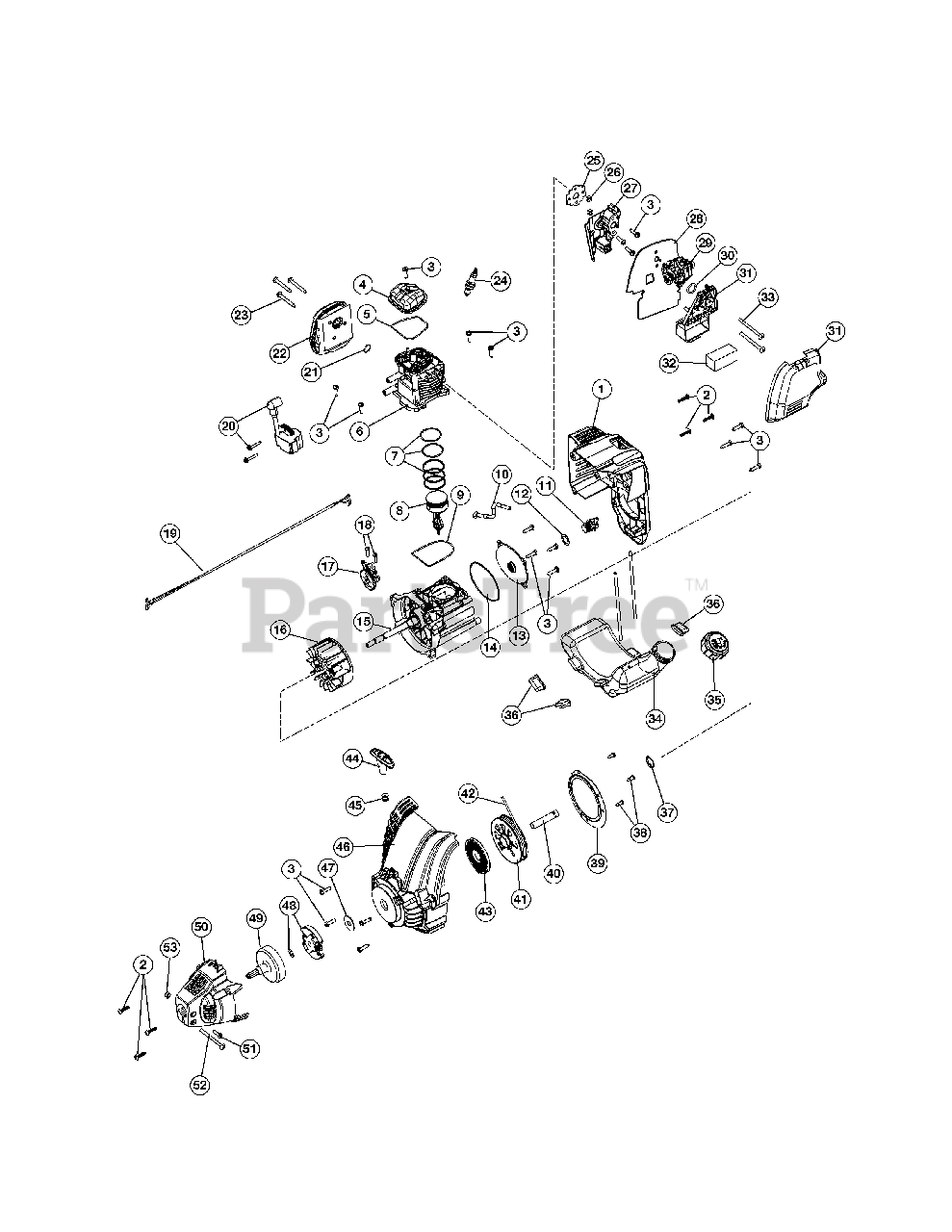

TB 539 ES (41DDT53C966) - Troy-Bilt String Trimmer Engine Assembly Parts Diagram

String Trimmer

Engine Assembly Parts Diagram

  • Title

1

Troy-Bilt 753-06134

Engine Cover Assembly

Note: (Incl. Ref No. 2 & 3)

$10.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 710-04194

Cover Screw

$4.49

$

In Stock, Qty 20+

0

3

Troy-Bilt 791-181003

Screw
(Superseded to 9052-1)

$

$

Not available

4

Troy-Bilt 753-05901

Rocker Cover

$8.49

$

Usually ships in 3-6 days

0

5

Troy-Bilt 753-05902

Rocker Cover O-Ring

$5.49

$

In Stock, Qty 10

0

6

Troy-Bilt 753-06311

Cylinder Assembly

Note: (Incl. Ref No. 3, 5 & 9)

$42.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt 753-05229

Piston Ring Assembly

$38.99

$

Usually ships in 3-6 days

0

8

Troy-Bilt 753-05973

Piston Assembly

Note: (Incl. Ref No. 7)

$18.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 753-05910

Cylinder O-Ring

$3.49

$

Usually ships in 3-6 days

0

10

Troy-Bilt 791-182379

Breather Hose

$4.99

$

In Stock, Qty 11

0

11

Troy-Bilt 753-05408

Oil Plug

Note: (Incl. Ref No. 12)

$29.99

$

In Stock, only 1 left!

0

12

Troy-Bilt 791-182290

Oil Plug O-Ring

$4.99

$

In Stock, Qty 9

0

13

Troy-Bilt 753-06111

Crankcase Cover
(Superseded to 841-020721S)

$13.99

$

In Stock, only 2 left!

0

14

Troy-Bilt 753-05238

Crankcase Cover O-ring

$10.99

$

In Stock, Qty 10

0

15

Troy-Bilt 753-06313

Crankcase Assembly

Note: (Incl. Ref No. 9, 10 & 14)

$52.99

$

In Stock, only 1 left!

0

16

Troy-Bilt 753-06221

Flywheel Assembly

$21.99

$

Usually ships in 3-6 days

0

17

Troy-Bilt 753-06312

Cam Bracket Assembly

Note: (Incl. Ref No. 18)

$

$

Not available

18

Troy-Bilt 710-04584

Cam Bracket Screw

$3.99

$

Usually ships in 3-6 days

0

19

Troy-Bilt 753-05264

Lead Wires

$16.99

$

In Stock, only 4 left!

0

20

Troy-Bilt 753-05301

Module Assembly

$113.99

$

Usually ships in 3-6 days

0

21

Troy-Bilt 753-05244

Muffler Gasket

$5.99

$

In Stock, Qty 9

0

22

Troy-Bilt 753-05245

Muffler Assembly

Note: (Incl. Ref No. 21 & 23)

$92.99

$

Usually ships in 3-6 days

0

23

Troy-Bilt 710-04487

Muffler Screw
(Superseded to 710-04809)

$3.49

$

In Stock, Qty 5

0

24

Troy-Bilt 794-00043

Spark Plug
(Superseded to 794-00082)

$7.49

$

In Stock, Qty 20+

0

25

Troy-Bilt 753-05247

Insulator Gasket

$

$

Not available

26

Troy-Bilt 712-04099

Nut

$6.99

$

Usually ships in 3-6 days

0

27

Troy-Bilt 753-05249

Insulator

$18.99

$

In Stock, only 1 left!

0

28

Troy-Bilt 753-05366

Carburetor Gasket

$19.99

$

In Stock, Qty 6

0

29

Troy-Bilt 753-06220

Carburetor
(Superseded to 753-06220B)

$47.99

$

In Stock, Qty 7

0

30

Troy-Bilt 791-181751

O-Ring

$4.49

$

In Stock, Qty 14

0

31

Troy-Bilt 753-05252

Air Cleaner Cover Assembly

Note: (Incl. Ref No. 32)

$27.99

$

In Stock, only 3 left!

0

32

Troy-Bilt 753-05254

Air Filter

$5.99

$

In Stock, Qty 20+

0

33

Troy-Bilt 710-04517

Screw

$5.49

$

In Stock, Qty 20+

0

34

Troy-Bilt 753-05256

Fuel Tank Assembly w/Fuel Lines

Note: (Incl. Ref No. 35)

$54.99

$

In Stock, Qty 14

0

35

Troy-Bilt 753-1229

Fuel Cap

$22.99

$

In Stock, Qty 12

0

36

Troy-Bilt 753-05259

Fuel Tank Pads

$6.99

$

In Stock, Qty 20+

0

37

Troy-Bilt 753-04288

Push Nut

$10.99

$

Usually ships in 3-6 days

0

38

Troy-Bilt 753-1202

Pressure Plate Screw
(Superseded to 1755)

$3.99

$

Usually ships in 3-6 days

0

39

Troy-Bilt 753-05074

Pressure Plate

Note: (Incl. Ref No. 38)

$

$

Not available

40

Troy-Bilt 750-04434

Spacer

$6.99

$

In Stock, Qty 13

0

41

Troy-Bilt 753-06222

Starter Assembly

Note: (Incl. Ref No. 42)

$

$

Not available

42

Troy-Bilt 753-05840

Rope
(Superseded to 791-613103)

$10.99

$

In Stock, only 2 left!

0

43

Troy-Bilt 753-04286

Recoil Spring

$26.99

$

In Stock, Qty 5

0

44

Troy-Bilt 631-04164A

Handle
(Superseded to 631-04164B)

$3.99

$

In Stock, Qty 11

0

45

Troy-Bilt 791-611061

Rope Guide

$10.99

$

In Stock, only 2 left!

0

46

Troy-Bilt 753-06314

Starter Housing Assembly

Note: (Incl. Ref No. 3 & 37-45)

$30.99

$

In Stock, Qty 12

0

47

Troy-Bilt 9162-1

Washer

$4.49

$

In Stock, only 2 left!

0

48

Troy-Bilt 753-1238

Clutch & Clutch Washer

$45.99

$

In Stock, Qty 12

0

49

Troy-Bilt 791-153592

Clutch Drum

$51.99

$

In Stock, Qty 12

0

50

Troy-Bilt 753-05263

Clutch Cover

Note: (Incl. Ref No. 2)

$27.99

$

In Stock, Qty 5

0

51

Troy-Bilt 791-182519

Anti-Rotation Screw

$4.99

$

In Stock, Qty 20+

0

52

Troy-Bilt 753-04003

Clamp Screw
(Superseded to 9689A)

$11.99

$

In Stock, Qty 15

0

53

Troy-Bilt 712-0161

Nut

$4.49

$

In Stock, Qty 20+

0

Troy-Bilt 753-05297

Spark Arrestor Assembly

Note: Not shown

$28.99

$

Usually ships in 3-6 days

0

Troy-Bilt 753-06317

Shortblock Assembly
(Superseded to 753-06799)

Note: (Incl. Ref No. 3-12, 14, 15, 17 & 24) Not shown

$106.99

$

In Stock, only 4 left!

0
