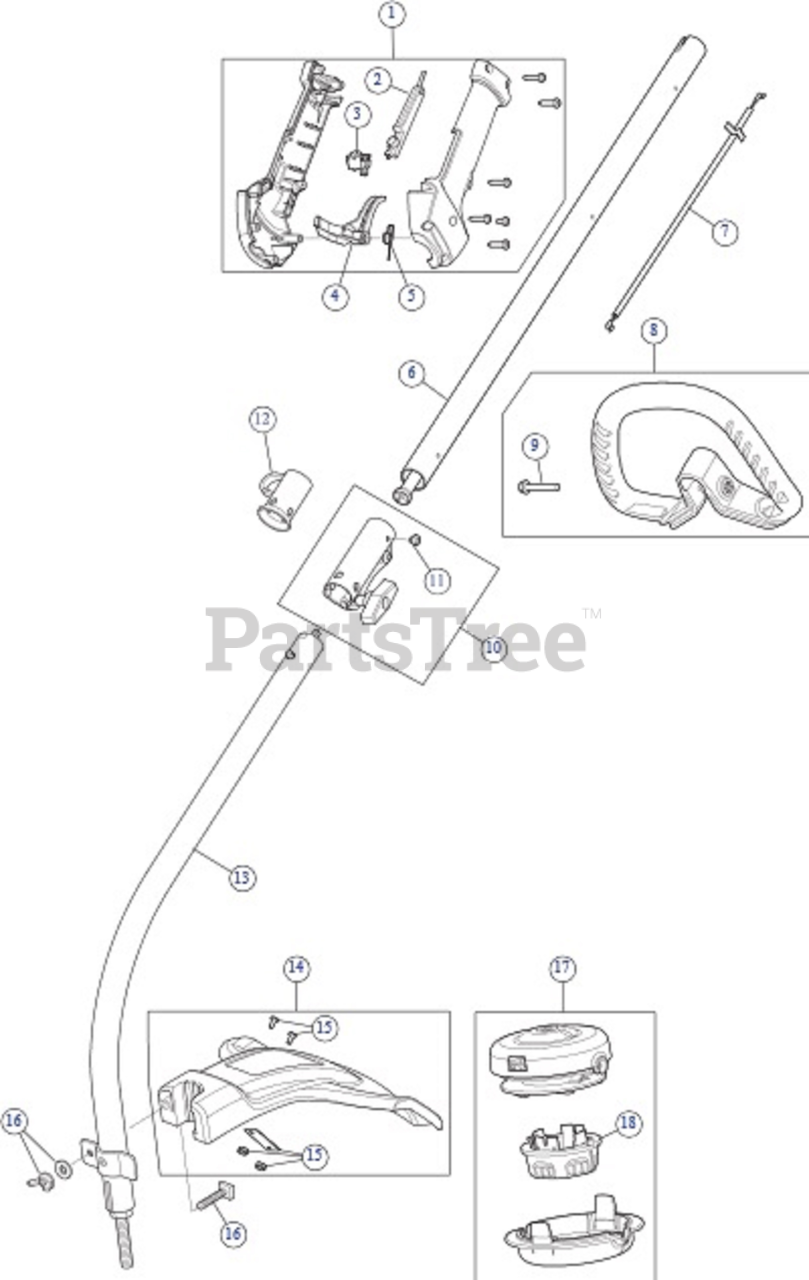

TB 525 EC (41CDZ52C766) - Troy-Bilt String Trimmer General Assembly Parts Diagram

String Trimmer

General Assembly Parts Diagram

  • Title

1

Troy-Bilt 753-08344

Throttle Housing Assembly

Note: (Incl. 2 - 5)

$30.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 731-08433C-10

Throttle Trigger Lock-Out

$3.49

$

In Stock, Qty 14

0

3

Troy-Bilt 791-182405

Trigger Switch Assembly

$10.99

$

In Stock, Qty 12

0

4

Troy-Bilt 731-04970A-2

Throttle Trigger
(Superseded to 731-04970B-10)

$9.49

$

In Stock, Qty 20+

0

5

Troy-Bilt 753-05007

Throttle Trigger Spring

$5.49

$

In Stock, only 3 left!

0

6

Troy-Bilt 753-06880

Upper Drive Shaft Housing Assembly

$19.99

$

In Stock, only 1 left!

0

7

Troy-Bilt 753-05266

Throttle Cable Assembly

$20.99

$

In Stock, Qty 12

0

8

Troy-Bilt 753-06039

D-Handle Assembly

Note: (Incl. 9)

$11.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 753-06040

Bolt

$6.99

$

In Stock, only 1 left!

0

10

Troy-Bilt 753-1190

Split Boom Coupler

Note: (Incl. 11)

$23.99

$

In Stock, only 1 left!

0

11

Troy-Bilt 791-182057

Coupler Anti-Rotation Screw

$4.49

$

In Stock, only 3 left!

0

12

Troy-Bilt 731-08926

Hanger

$2.99

$

In Stock, Qty 20+

0

13

Troy-Bilt 753-08359

Lower Drive Shaft Housing Assembly

$

$

Not available

14

Troy-Bilt 753-04283

Shield Assembly

Note: (Incl. 15)

$50.99

$

In Stock, only 1 left!

0

15

Troy-Bilt 791-682061

Blade Assembly

$14.99

$

In Stock, only 1 left!

0

16

Troy-Bilt 753-04282

Shield Mounting Hardware

$25.99

$

In Stock, only 1 left!

0

17

Troy-Bilt 753-08156

Cutting Head Assembly

Note: (Incl. 18)

$27.99

$

In Stock, Qty 18

0

18

Troy-Bilt 731-10783-1

Bump Knob

$2.99

$

In Stock, only 1 left!

0
