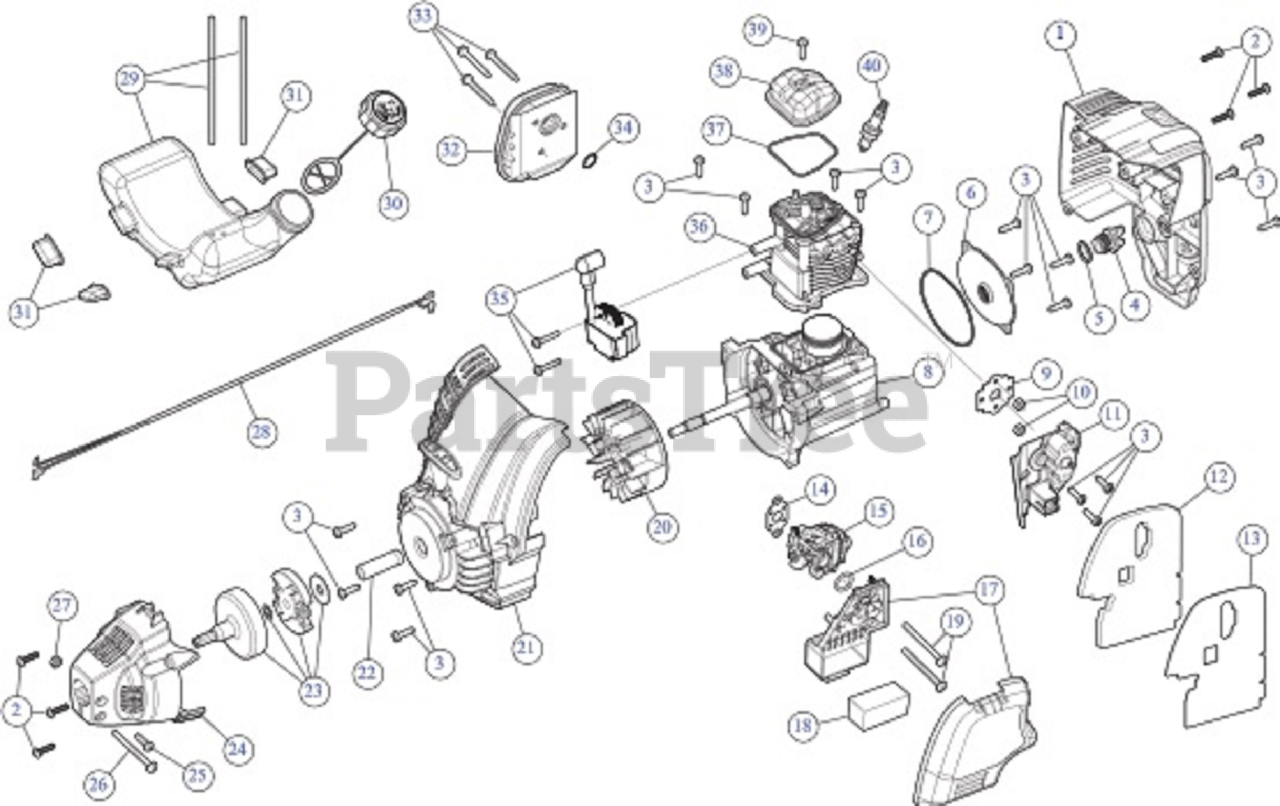

TB 525 EC (41BDZ52C866) - Troy-Bilt String Trimmer Engine Assembly Parts Diagram

String Trimmer

Engine Assembly Parts Diagram

  • Title

1

Troy-Bilt 753-06134

Engine Cover Assembly

Note: (Incl.2 & 3)

$10.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 710-04194

Cover Screw

$4.49

$

In Stock, Qty 20+

0

3

Troy-Bilt 710-04604

Screw

$4.49

$

In Stock, Qty 20+

0

4

Troy-Bilt 753-05408

Oil Plug

Note: (Incl.5)

$29.99

$

In Stock, only 1 left!

0

5

Troy-Bilt 791-182290

Oil Plug O-Ring

$4.99

$

In Stock, Qty 9

0

6

Troy-Bilt 753-06111

Crankcase Cover
(Superseded to 841-020721S)

$13.99

$

In Stock, only 2 left!

0

7

Troy-Bilt 753-05238

Crankcase Cover O-Ring

$10.99

$

In Stock, only 1 left!

0

8

Troy-Bilt 753-06313

Crankcase Assembly

Note: (Incl.7)

$52.99

$

In Stock, only 1 left!

0

9

Troy-Bilt 753-05247

Insulator Gasket

$

$

Not available

10

Troy-Bilt 712-04099

Nut

$6.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 753-06947

Insulator

$7.49

$

In Stock, only 1 left!

0

12

Troy-Bilt 753-06949

Heat Shield

$5.99

$

In Stock, only 1 left!

0

13

Troy-Bilt 753-06948

Gasket

$4.99

$

In Stock, only 2 left!

0

14

Troy-Bilt 791-181709

Gasket

$4.99

$

In Stock, Qty 20+

0

15

Troy-Bilt 753-06220A

Carburetor
(Superseded to 753-06220B)

$47.99

$

In Stock, Qty 7

0

16

Troy-Bilt 791-181751

O-Ring

$4.49

$

In Stock, Qty 19

0

17

Troy-Bilt 753-05252

Air Cleaner Cover Assembly

Note: (Incl.18)

$27.99

$

In Stock, only 3 left!

0

18

Troy-Bilt 753-05254

Air Filter

$5.99

$

In Stock, only 4 left!

0

19

Troy-Bilt 710-04517

Screw

$5.49

$

In Stock, Qty 20+

0

20

Troy-Bilt 753-06221

Flywheel Assembly

$21.99

$

Usually ships in 3-6 days

0

21

Troy-Bilt 753-06314

Starter Housing Assembly

Note: (Incl.3)

$30.99

$

In Stock, Qty 12

0

22

Troy-Bilt 750-04434

Powershaft Spacer

$6.99

$

In Stock, Qty 14

0

23

Troy-Bilt 753-06281

Clutch Assembly

$22.99

$

In Stock, only 4 left!

0

24

Troy-Bilt 753-05263

Clutch Cover

Note: (Incl.2)

$27.99

$

In Stock, Qty 5

0

25

Troy-Bilt 791-182519

Anti-Rotation Screw

$4.99

$

In Stock, only 2 left!

0

26

Troy-Bilt 753-04003

Clamp Screw
(Superseded to 9689A)

$11.99

$

In Stock, Qty 16

0

27

Troy-Bilt 712-0161

Nut

$4.49

$

In Stock, Qty 20+

0

28

Troy-Bilt 753-08248

Lead Wires

$5.49

$

Usually ships in 3-6 days

0

29

Troy-Bilt 753-06797

Fuel Tank Assembly w/Fuel Lines

Note: (Incl.30)

$21.99

$

In Stock, Qty 8

0

30

Troy-Bilt 753-1229

Fuel Tank Cap

$22.99

$

Usually ships in 3-6 days

0

31

Troy-Bilt 753-05259

Fuel Tank Pads

$6.99

$

In Stock, Qty 20+

0

32

Troy-Bilt 753-05245

Muffler Assembly

Note: (Incl.33 & 34)

$92.99

$

Usually ships in 3-6 days

0

33

Troy-Bilt 710-04487

Muffler Screw
(Superseded to 710-04809)

$3.49

$

In Stock, Qty 5

0

34

Troy-Bilt 753-05244

Muffler Gasket

$5.99

$

In Stock, Qty 9

0

35

Troy-Bilt 753-08302

Module Assembly

$30.99

$

Usually ships in 3-6 days

0

36

Troy-Bilt 753-06311

Cylinder Assembly

Note: (Incl.38 & 39)

$42.99

$

Usually ships in 3-6 days

0

37

Troy-Bilt 753-05902

Rocker Cover O-Ring

$5.49

$

In Stock, Qty 11

0

38

Troy-Bilt 753-05901

Rocker Cover

$8.49

$

Usually ships in 3-6 days

0

39

Troy-Bilt 791-181025

Rocker Cover Screw

$2.99

$

Usually ships in 3-6 days

0

40

Troy-Bilt 794-00098

Spark Plug

$6.99

$

Usually ships in 3-6 days

0

Troy-Bilt 753-06799

Shortblock Assembly

Note: (Incl.3, 5, 7, 8, & 36 - 40)

$106.99

$

In Stock, only 4 left!

0
