TB 525 EC (41BDZ52C766) - Troy-Bilt String Trimmer General Assembly Parts Diagram

String Trimmer

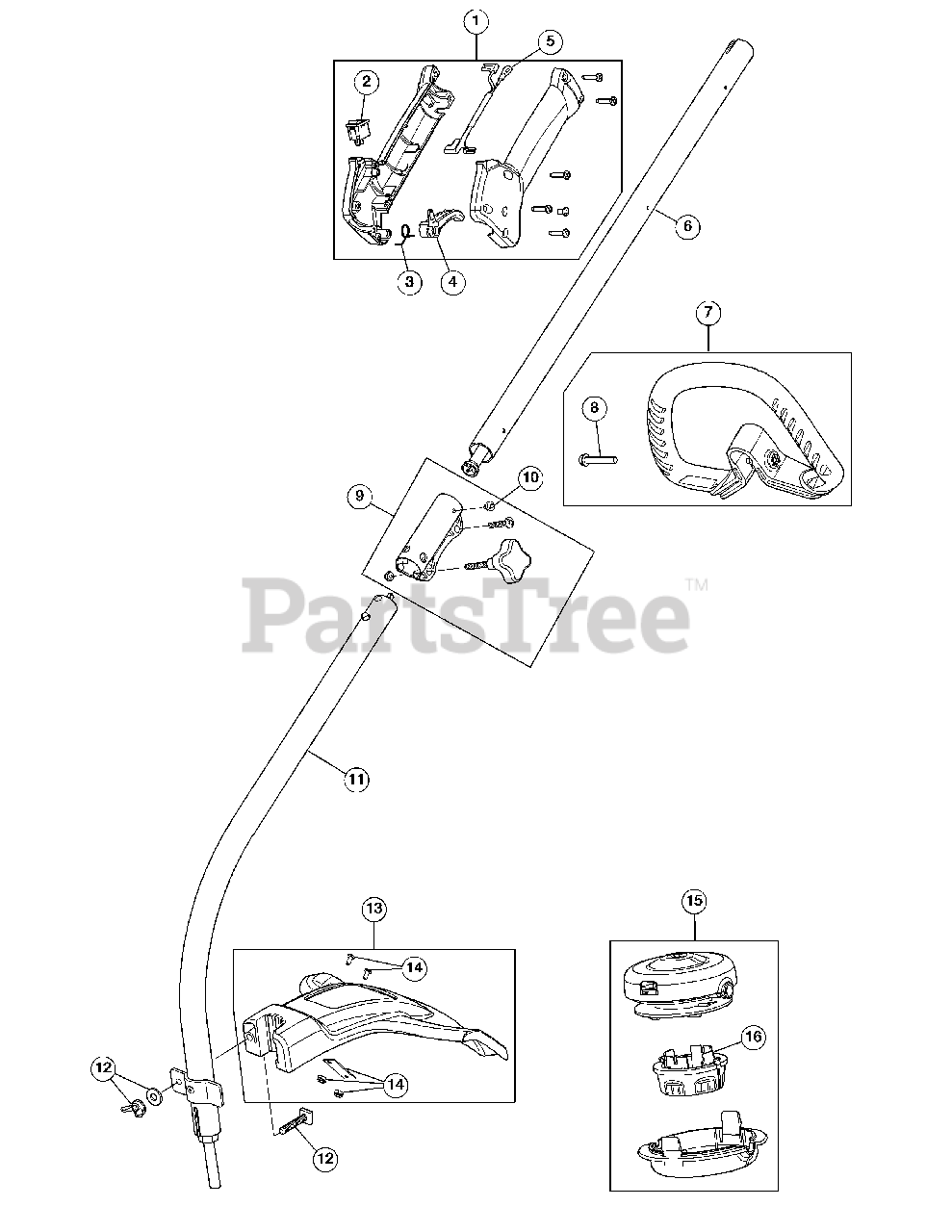

General Assembly Parts Diagram

  • Title

1

Troy-Bilt 753-04234

Throttle Housing Assembly (Incl. 2 - 4)

$21.99

$

In Stock, Qty 7

0

2

Troy-Bilt 791-182405

Switch Assembly

$10.99

$

In Stock, Qty 12

0

3

Troy-Bilt 791-182690

Throttle Trigger Spring

$7.99

$

In Stock, only 2 left!

0

4

Troy-Bilt 753-04119

Throttle Trigger

$7.49

$

In Stock, Qty 18

0

5

Troy-Bilt 753-05266

Throttle Cable Assembly

$20.99

$

In Stock, Qty 12

0

6

Troy-Bilt 753-04236

Upper Drive Shaft Housing Assembly

$94.99

$

In Stock, only 4 left!

0

7

Troy-Bilt 753-06039

D-Handle Assembly (Incl. 8)

$11.99

$

Usually ships in 3-6 days

0

8

Troy-Bilt 753-06040

Bolt

$6.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 753-1190

Split Boom Coupler (Incl. 10)

$23.99

$

In Stock, only 1 left!

0

10

Troy-Bilt 791-182057

Coupler Anti-Rotation Screw

$4.49

$

In Stock, Qty 7

0

11

Troy-Bilt 753-08181

Lower Drive Shaft Housing Assembly

$

$

Not available

12

Troy-Bilt 753-04282

Shield Mounting Hardware

$25.99

$

In Stock, only 1 left!

0

13

Troy-Bilt 753-04283

Shield Assembly (Incl. 14)

$50.99

$

Usually ships in 3-6 days

0

14

Troy-Bilt 753-06803

Blade Assembly

$3.49

$

Usually ships in 3-6 days

0

15

Troy-Bilt 753-08156

Cutting Head Assembly (Incl. 16)

$27.99

$

In Stock, Qty 18

0

16

Troy-Bilt 753-08157

Bump Knob

$5.49

$

In Stock, Qty 9

0

Troy-Bilt 49M2027P966

Corded Electric Starter Attachment

Note: (Optional Accessory)

$65.99

$

In Stock, Qty 6

0

Troy-Bilt 49MRBESY966

Cordless Electric Start Adaptor
(Superseded to 49MRBESY953)

Note: (Optional Accessory)

$

$

Not available

Troy-Bilt 49MESCBP966

Drill Bit Electric Start Adaptor
(Superseded to 49MASCBP966)

Note: (Optional Accessory)

$19.99

$

In Stock, Qty 9

0

Troy-Bilt 49U2341K953

Round Line-.095, 40 ft. packet

Note: (Optional Accessory)

$

$

Not available

Troy-Bilt 737-04317

Oil, 4-Cycle 3.4 OZ. SAE 30
(Superseded to 737-05691)

Note: (Optional Accessory)

$2.99

$

In Stock, only 1 left!

0
