TB 525 CS (41ADT52C966) - Troy-Bilt Horse String Trimmer Boom & Trimmer Assembly TB525CS Parts Diagram

Horse String Trimmer

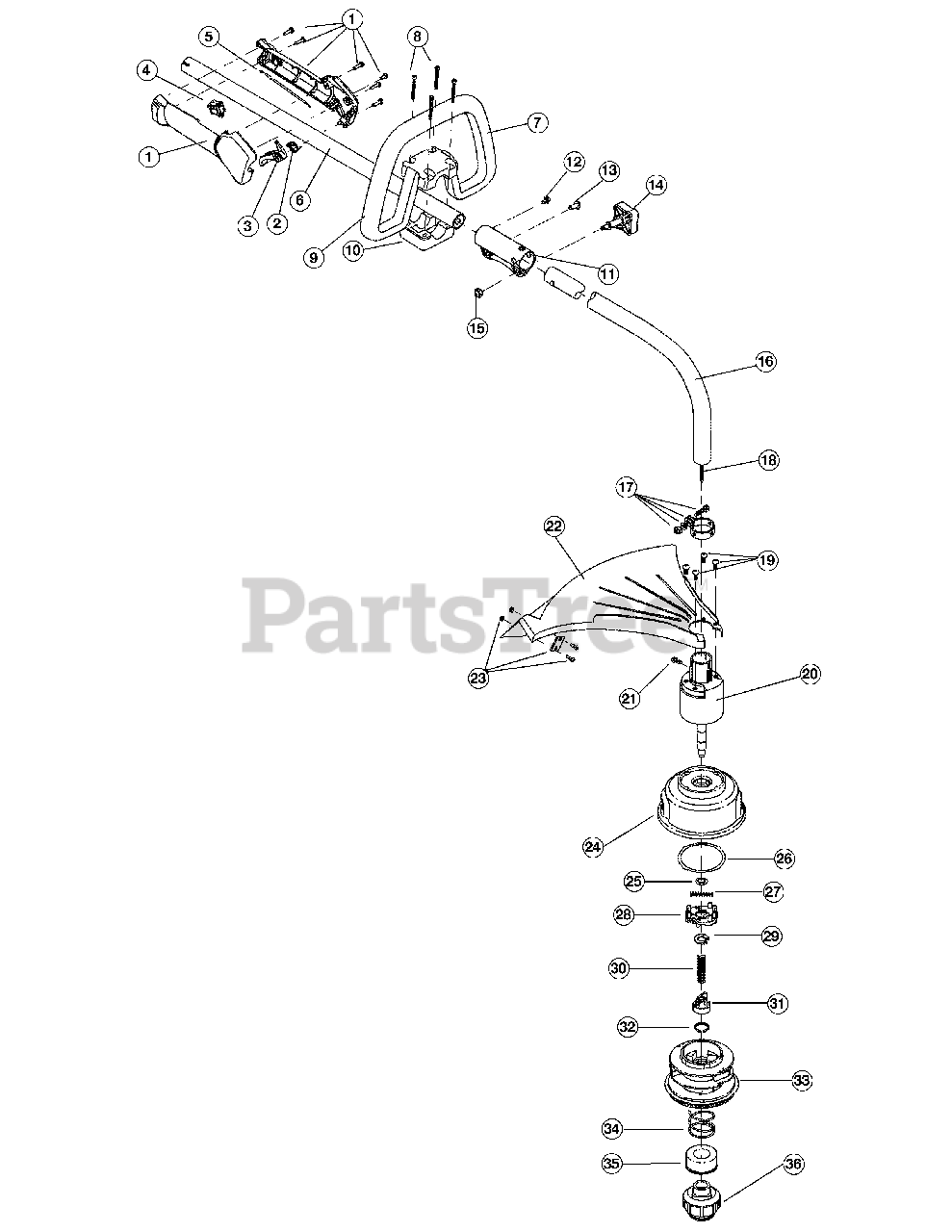

Boom & Trimmer Assembly TB525CS Parts Diagram

  • Title
1

Troy-Bilt 753-04234

Throttle Housing Assembly (includes 2-4)

$21.99

$

In Stock, Qty 7

0

2

Troy-Bilt 791-182690

Throttle Trigger Spring

$7.99

$

In Stock, only 2 left!

0

3

Troy-Bilt 753-04119

Throttle Trigger

$7.49

$

In Stock, Qty 18

0

$10.99

$

In Stock, Qty 12

0

5

Troy-Bilt 753-05266

Throttle Cable Assembly

$20.99

$

In Stock, Qty 12

0

6

Troy-Bilt 753-04236

Upper Drive Shaft Housing Assembly

$94.99

$

In Stock, Qty 5

0

7

MTD 791-180869

Deluxe D-Handle Assembly (includes 8-10)

$

$

Not available

$4.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 791-182167

Deluxe D-Handle

$76.99

$

Usually ships in 3-6 days

0

10

MTD 791-182168

Bottom Clamp

$

$

Not available

11

Troy-Bilt 753-1190

Split boom Coupler (includes 12-15)

$23.99

$

In Stock, only 1 left!

0

$4.49

$

In Stock, only 3 left!

0

$5.49

$

In Stock, Qty 11

0

14

Troy-Bilt 791-181981

Adjustment Knob (includes 15)
(Superseded to 697-00661-9)

$

$

Not available

15

Troy-Bilt 753-04386

Knob Retaining Nut
(Superseded to 712-04018A)

$4.49

$

In Stock, Qty 5

0

16

Troy-Bilt 791-182387

Lower Drive Shaft Housing Assembly

$63.99

$

Usually ships in 3-6 days

0

17

Troy-Bilt 791-153597

Lower Clamp Assembly (includes 21)

$

$

Not available

18

Troy-Bilt 791-181852

Lower Flexible Drive Shaft

$59.99

$

In Stock, Qty 11

0

19

Troy-Bilt 791-180531

Shield Mounting Screw
(Superseded to 791-181858)

$

$

Not available

20

MTD 791-181857

Bushing Housing Assembly

$

$

Not available

21

Troy-Bilt 791-145569

Anti-Rotation Screw

$9.99

$

In Stock, Qty 7

0

22

Troy-Bilt 791-181659

Shield Assembly (includes 23)

$

$

Not available

23

Troy-Bilt 753-05212

Blade Assembly
(Superseded to 753-06048)

$

$

Not available

24

Troy-Bilt 791-181457

Outer Spool Assembly (includes 25)

$39.99

$

In Stock, only 1 left!

0

25

$4.49

$

In Stock, Qty 12

0

26

Troy-Bilt 791-181561

Thrust Washer

$4.49

$

In Stock, Qty 5

0

27

Troy-Bilt 791-181459

Small Spring

$4.49

$

In Stock, only 2 left!

0

$7.49

$

In Stock, Qty 20+

0

$4.49

$

In Stock, Qty 8

0

$4.49

$

In Stock, Qty 9

0

$

$

Not available

$3.99

$

Usually ships in 3-6 days

0

33

Troy-Bilt 791-181464

Inner Reel
(Superseded to 791-181460B)

$32.99

$

Usually ships in 3-6 days

0

34

Troy-Bilt 791-181465B

Large Spring

$10.99

$

In Stock, only 1 left!

0

35

$

$

Not available

36

Troy-Bilt 791-181468B

Bump Head Knob Assembly (includes 34 & 35)

$

$

Not available

MTD 753-04929

Complete Cutting Head Assemly (Includes 17, 20, 21, 24-36)

Note: Not shown

$

$

Not available
