TB 516 EC (25A-516-766) - Troy-Bilt Edger (2012) Engine Assembly Parts Diagram

Edger

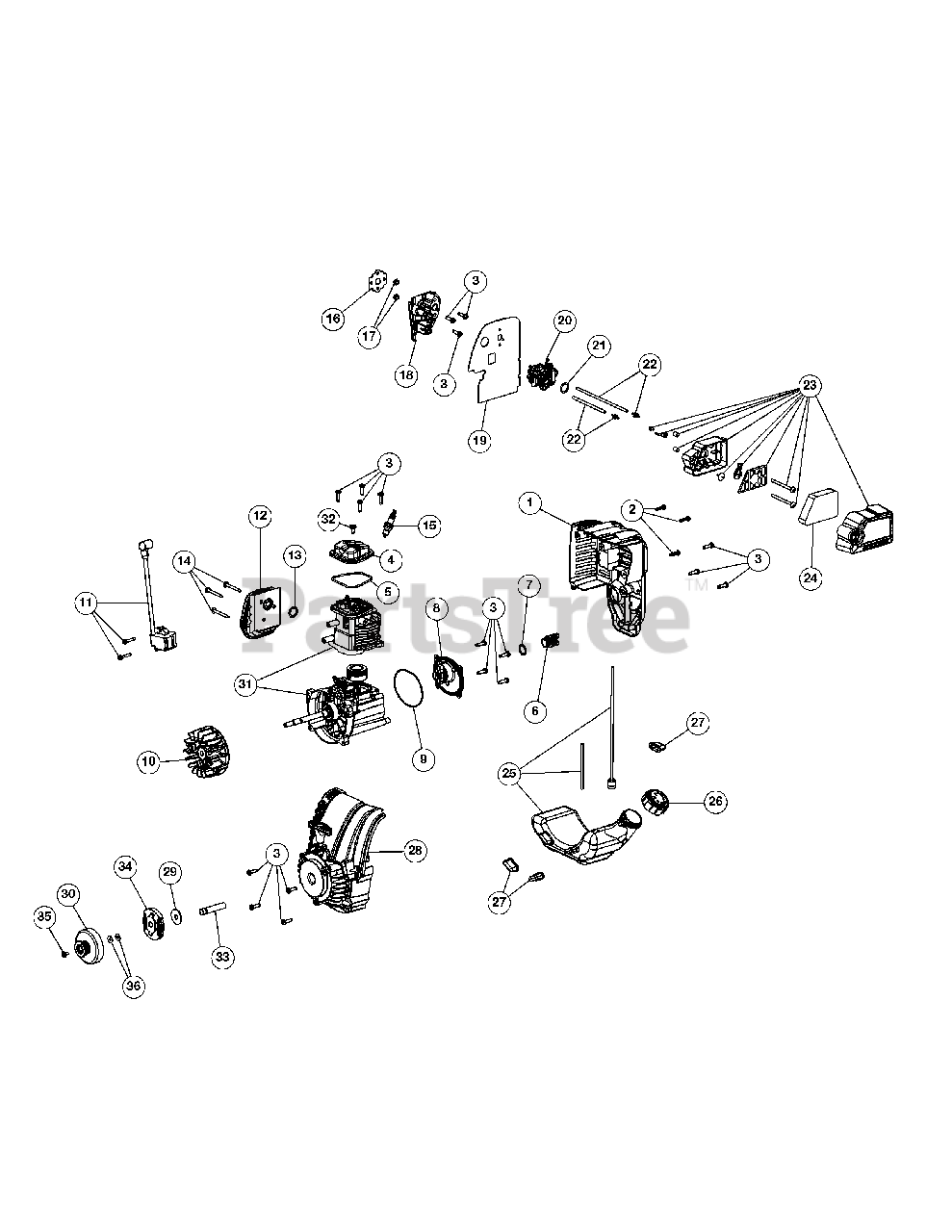

Engine Assembly Parts Diagram

  • Title

1

Troy-Bilt 753-06134

Engine Cover Assembly (Incl. 2 & 3)

$10.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 710-04194

Cover Screw

$4.49

$

In Stock, Qty 20+

0

3

Troy-Bilt 710-04604

Starter Screw

$4.49

$

In Stock, only 3 left!

0

4

Troy-Bilt 753-05901

Rocker Cover

$8.49

$

Usually ships in 3-6 days

0

5

Troy-Bilt 753-05902

Rocker Cover O-Ring

$5.49

$

In Stock, only 2 left!

0

6

Troy-Bilt 753-05408

Oil Plug (Incl. 7)

$29.99

$

In Stock, only 1 left!

0

7

Troy-Bilt 791-182290

Oil Plug O-Ring

$4.99

$

In Stock, Qty 11

0

8

Troy-Bilt 753-06111

Crankcase Cover
(Superseded to 841-020721S)

$13.99

$

In Stock, only 2 left!

0

9

Troy-Bilt 753-05238

Crankcase Cover O-ring

$10.99

$

In Stock, only 1 left!

0

10

Troy-Bilt 753-06221

Flywheel Assembly

$21.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 753-05836

Module Assembly

$49.99

$

Usually ships in 3-6 days

0

12

Troy-Bilt 753-05245

Muffler Assembly (Incl. 13 & 14)

$92.99

$

Usually ships in 3-6 days

0

13

Troy-Bilt 753-05244

Muffler Gasket

$5.99

$

In Stock, Qty 8

0

14

Troy-Bilt 710-04487

Muffler Screw
(Superseded to 710-04809)

$3.49

$

In Stock, only 1 left!

0

15

Troy-Bilt 794-00043

Spark Plug
(Superseded to 794-00082)

$7.49

$

In Stock, only 4 left!

0

16

Troy-Bilt 753-05247

Insulator Gasket

$

$

Not available

17

Troy-Bilt 712-04099

Nut

$6.99

$

Usually ships in 3-6 days

0

18

Troy-Bilt 753-05249

Insulator

$18.99

$

In Stock, only 1 left!

0

19

Troy-Bilt 753-05366

Carburetor Gasket

$19.99

$

In Stock, Qty 7

0

20

Troy-Bilt 753-06258

Carburetor w/Primer
(Superseded to 753-06258A)

$60.99

$

In Stock, only 4 left!

0

21

Troy-Bilt 791-181751

O-Ring

$4.49

$

In Stock, Qty 20+

0

22

Troy-Bilt 710-04517

Screw

$5.49

$

In Stock, Qty 20+

0

23

Troy-Bilt 753-06541

Air Cleaner Cover Assembly (Incl. 24)

$

$

Not available

24

Troy-Bilt 753-05996

Air Filter

$3.49

$

In Stock, Qty 20+

0

25

Troy-Bilt 753-06240

Fuel Tank Assembly w/Fuel Lines (Incl. 26)

$29.99

$

In Stock, only 4 left!

0

26

Troy-Bilt 753-1229

Fuel Cap

$22.99

$

In Stock, only 1 left!

0

27

Troy-Bilt 753-05259

Fuel Tank Pads

$6.99

$

In Stock, Qty 20+

0

28

Troy-Bilt 753-06650

Starter Housing Assembly (Incl. 3)

$

$

Not available

29

Troy-Bilt 9162-1

Washer

$4.49

$

In Stock, only 3 left!

0

30

Troy-Bilt 753-06573

Clutch Drum w/Pulley

$25.99

$

Usually ships in 3-6 days

0

31

Troy-Bilt 753-06663

Shortblock Assembly

Note: (Incl. Crankcase, Cylinder, 3-7, 9, 11 & 15)

$107.99

$

Usually ships in 3-6 days

0

32

Troy-Bilt 791-181025

Screw

$2.99

$

Usually ships in 3-6 days

0

33

Troy-Bilt 750-04434

Spacer

$6.99

$

In Stock, only 4 left!

0

34

Troy-Bilt 753-1238

Clutch (Incl. 29)

$45.99

$

In Stock, Qty 13

0

35

Troy-Bilt 791-182468

Screw

$12.99

$

Usually ships in 3-6 days

0

36

Troy-Bilt 791-182569

Washer
(Superseded to 6674)

$3.49

$

In Stock, only 1 left!

0

Troy-Bilt 625-04120

Electric Start

Note: Not Shown - Optional

$77.99

$

Usually ships in 3-6 days

0

Troy-Bilt 49MESCBP953

Start Bit
(Superseded to 49MASCBP953)

Note: Not Shown - Optional

$20.99

$

In Stock, only 3 left!

0
