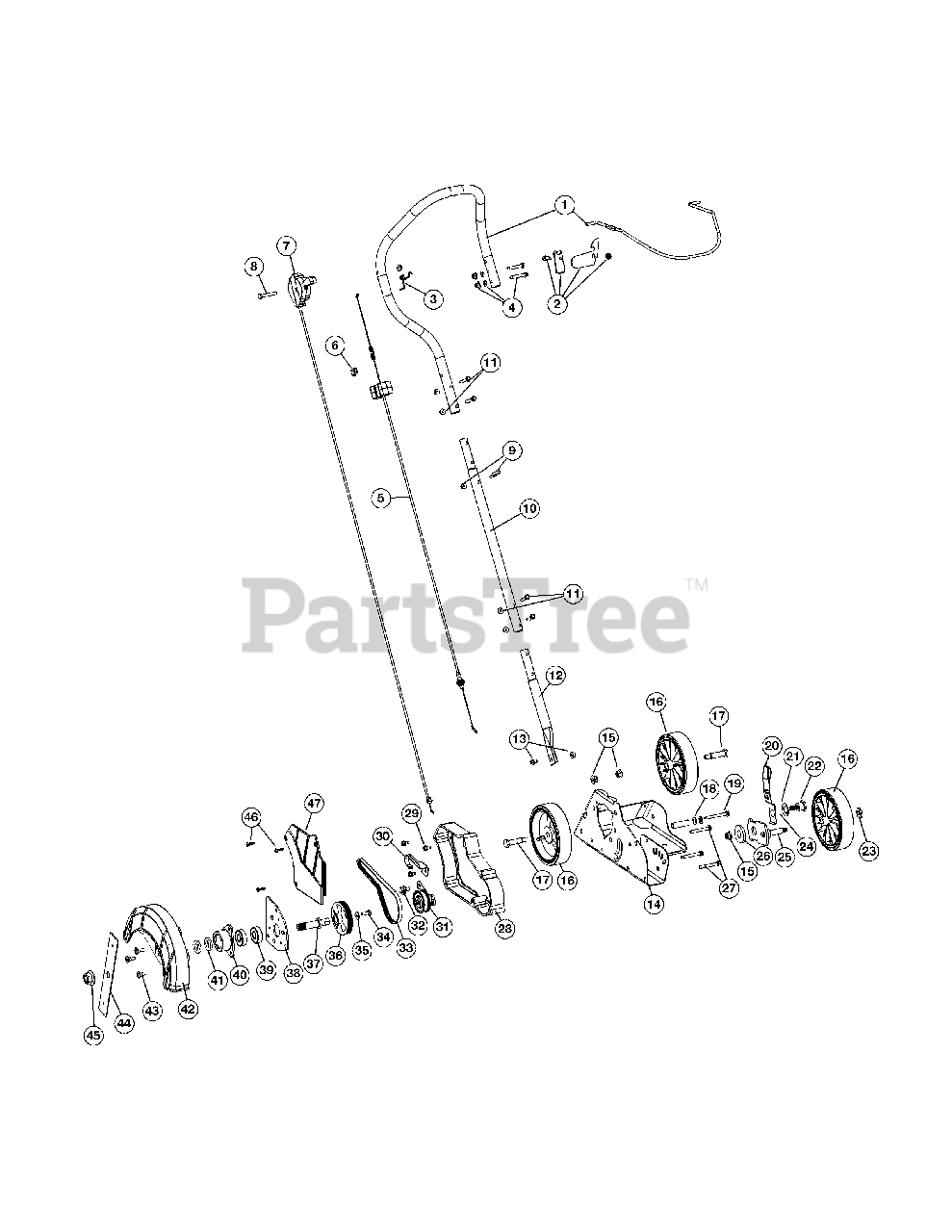

TB 515 EC (25C-515-966) - Troy-Bilt Edger (2010) General Assembly Parts Diagram

Edger

General Assembly Parts Diagram

  • Title

1

MTD 753-05791

Handle Assembly (includes 2-4)

$

$

Not available

2

Troy-Bilt 753-05797

Lockout Lever Assembly

$

$

Not available

3

Troy-Bilt 753-04043

Bale Spring

$

$

Not available

4

Troy-Bilt 753-05793

Lockout Hardware Assembly

$

$

Not available

5

Troy-Bilt 753-05795

Tensioner Cable Assembly

$31.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 791-182405

Switch

$10.99

$

In Stock, Qty 12

0

7

Troy-Bilt 753-05789

Throttle Assembly

$32.99

$

Usually ships in 3-6 days

0

8

Troy-Bilt 753-05794

Throttle Hardware Assembly

$

$

Not available

9

Troy-Bilt 753-05524

Starter Rope Guide Assembly

$6.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt 753-05787

Middle Handle Assembly (includes 11)

$

$

Not available

11

Troy-Bilt 753-05526

Handle Hardware Assembly

$

$

Not available

12

Troy-Bilt 749-04361

Lower Handle

$41.99

$

Usually ships in 3-6 days

0

13

Troy-Bilt 710-0599

Lower Handle Screw & Nut Assembly

$4.49

$

In Stock, Qty 20+

0

14

Troy-Bilt 753-05539

Edger Frame

$

$

Not available

15

Troy-Bilt 712-04065

Lock Nut

$3.99

$

In Stock, Qty 20+

0

16

Troy-Bilt 734-04261

Wheel

$21.99

$

In Stock, only 1 left!

0

17

Troy-Bilt 938-0373

Wheel Bolt

$9.49

$

In Stock, Qty 20+

0

18

Troy-Bilt 750-04783

Spacer

$3.99

$

Usually ships in 3-6 days

0

19

Troy-Bilt 710-1206

Spacer Screw

$7.49

$

In Stock, Qty 6

0

20

Troy-Bilt 987-02051

Height Adjustment Lever Assembly
(Superseded to 687-02051)

$

$

Not available

21

Troy-Bilt 736-0741

Washer

$4.99

$

Usually ships in 3-6 days

0

22

Troy-Bilt 738-1172

Shoulder Screw

$5.99

$

Usually ships in 3-6 days

0

23

Troy-Bilt 712-04135

Nut

$6.49

$

Usually ships in 3-6 days

0

24

Troy-Bilt 750-04929

Spacer

$4.49

$

In Stock, only 4 left!

0

25

Troy-Bilt 987-02094

Pivot Arm

$29.99

$

Usually ships in 3-6 days

0

26

Troy-Bilt 753-06287

Height Adjustment Spacer

$2.49

$

Usually ships in 3-6 days

0

27

Troy-Bilt 753-04202

Spindle Plate Screw
(Superseded to 710-1026)

$6.99

$

In Stock, Qty 13

0

28

MTD 731-05809

Spindle Spacer

$

$

Not available

29

Troy-Bilt 710-0599

Screw

$4.49

$

In Stock, Qty 20+

0

30

Troy-Bilt 787-01502

Belt Retainer

$13.99

$

Usually ships in 3-6 days

0

31

Troy-Bilt 753-05540

Idler Pulley Assembly

$38.99

$

Usually ships in 3-6 days

0

32

Troy-Bilt 738-0930

Shoulder Screw

$6.99

$

In Stock, only 1 left!

0

33

Troy-Bilt 754-04149

Belt

$30.99

$

In Stock, Qty 7

0

34

Troy-Bilt 710-3015

Screw

$3.99

$

In Stock, Qty 20+

0

35

Troy-Bilt 736-0270

Washer

$3.99

$

In Stock, Qty 20+

0

36

Troy-Bilt 756-04087

Pulley
(Superseded to 756-04087B)

$12.99

$

In Stock, only 3 left!

0

37

Troy-Bilt 753-05543

Blade Spindle

$21.99

$

In Stock, only 2 left!

0

38

Troy-Bilt 753-05544

Spindle Plate

$

$

Not available

39

Troy-Bilt 941-0524

Bearing
(Superseded to 941-0524A)

$23.99

$

In Stock, Qty 20+

0

40

Troy-Bilt 718-04012

Bearing Cup

$21.99

$

Usually ships in 3-6 days

0

41

Troy-Bilt 936-04088

Washer
(Superseded to 736-04088)

$4.49

$

In Stock, only 4 left!

0

42

Troy-Bilt 731-05064

Blade Guard
(Superseded to 731P05064)

$27.99

$

Usually ships in 3-6 days

0

43

Troy-Bilt 738-0706C

Screw
(Superseded to 738-0706D)

$4.49

$

In Stock, only 2 left!

0

44

Troy-Bilt 787-01503

Edger Blade
(Superseded to 787-01503-0637)

Variations

Troy-Bilt 787-01503-0637

Edger Blade - POWDER BLACK (0637)

$23.99

$

In Stock, only 2 left!

0

$23.99

$

In Stock, only 2 left!

0

45

Troy-Bilt 712-0417A

Nut

$6.99

$

In Stock, Qty 20+

0

46

Troy-Bilt 710-04194

Screw

$4.49

$

In Stock, Qty 20+

0

47

Troy-Bilt 731-05822

Belt Cover

$11.99

$

In Stock, only 2 left!

0
