TB 514 CS (41ADT51G966) - Troy-Bilt String Trimmer General Assembly Parts Diagram

String Trimmer

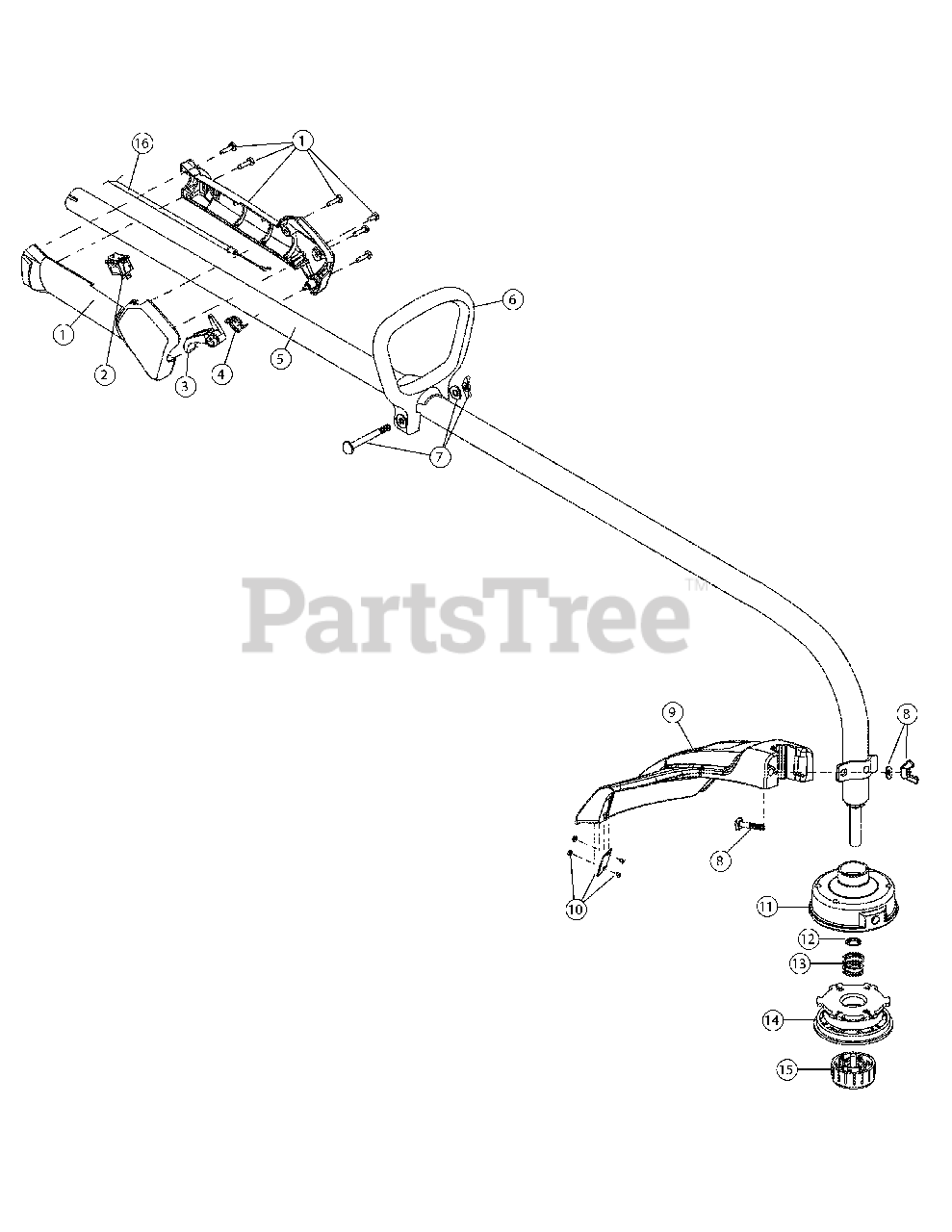

General Assembly Parts Diagram

  • Title

1

Troy-Bilt 753-04234

Throttle Housing Assembly

Note: (Incl. Ref No. 2-4)

$21.99

$

In Stock, Qty 7

0

2

Troy-Bilt 791-182405

Switch

$10.99

$

In Stock, Qty 12

0

3

Troy-Bilt 753-04119

Throttle Trigger

$7.49

$

In Stock, Qty 18

0

4

Troy-Bilt 791-182690

Throttle Trigger Spring

$7.99

$

In Stock, only 2 left!

0

5

Troy-Bilt 753-05748

Drive Shaft Housing Assembly

$48.99

$

In Stock, only 4 left!

0

6

Troy-Bilt 753-05461

D-Handle

Note: (Incl. Ref No. 7)

$22.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt 791-181587

Handle Hardware

$19.99

$

In Stock, only 1 left!

0

8

Troy-Bilt 753-04282

Guard Mounting Hardware

$25.99

$

In Stock, only 1 left!

0

9

Troy-Bilt 753-04283

Guard

Note: (Incl. Ref No. 10)

$50.99

$

In Stock, only 1 left!

0

10

Troy-Bilt 791-682061

Blade Assembly

$14.99

$

In Stock, only 1 left!

0

11

Troy-Bilt 753-04284

Outer Spool Assembly

Note: (Incl. Ref No. 12)

$28.99

$

In Stock, only 2 left!

0

12

Troy-Bilt 791-610660

Retainer

$4.99

$

In Stock, Qty 20+

0

13

Troy-Bilt 791-610317B

Spring

$10.99

$

In Stock, only 2 left!

0

14

Troy-Bilt 753-1155

Inner Reel

$22.99

$

In Stock, Qty 20+

0

15

Troy-Bilt 791-153066B

Bump Head Knob Assembly

$13.99

$

In Stock, Qty 18

0

16

Troy-Bilt 753-05266

Throttle Cable

$20.99

$

In Stock, Qty 12

0

Troy-Bilt 953-1156

Reel and Line Assembly

Note: Not Shown

$31.99

$

In Stock, only 1 left!

0
