TB 510 (18BEB9C7766) - Troy-Bilt Walk-Behind Mower, Electric (2018) Motor Housing Parts Diagram

Walk-Behind Mower, Electric

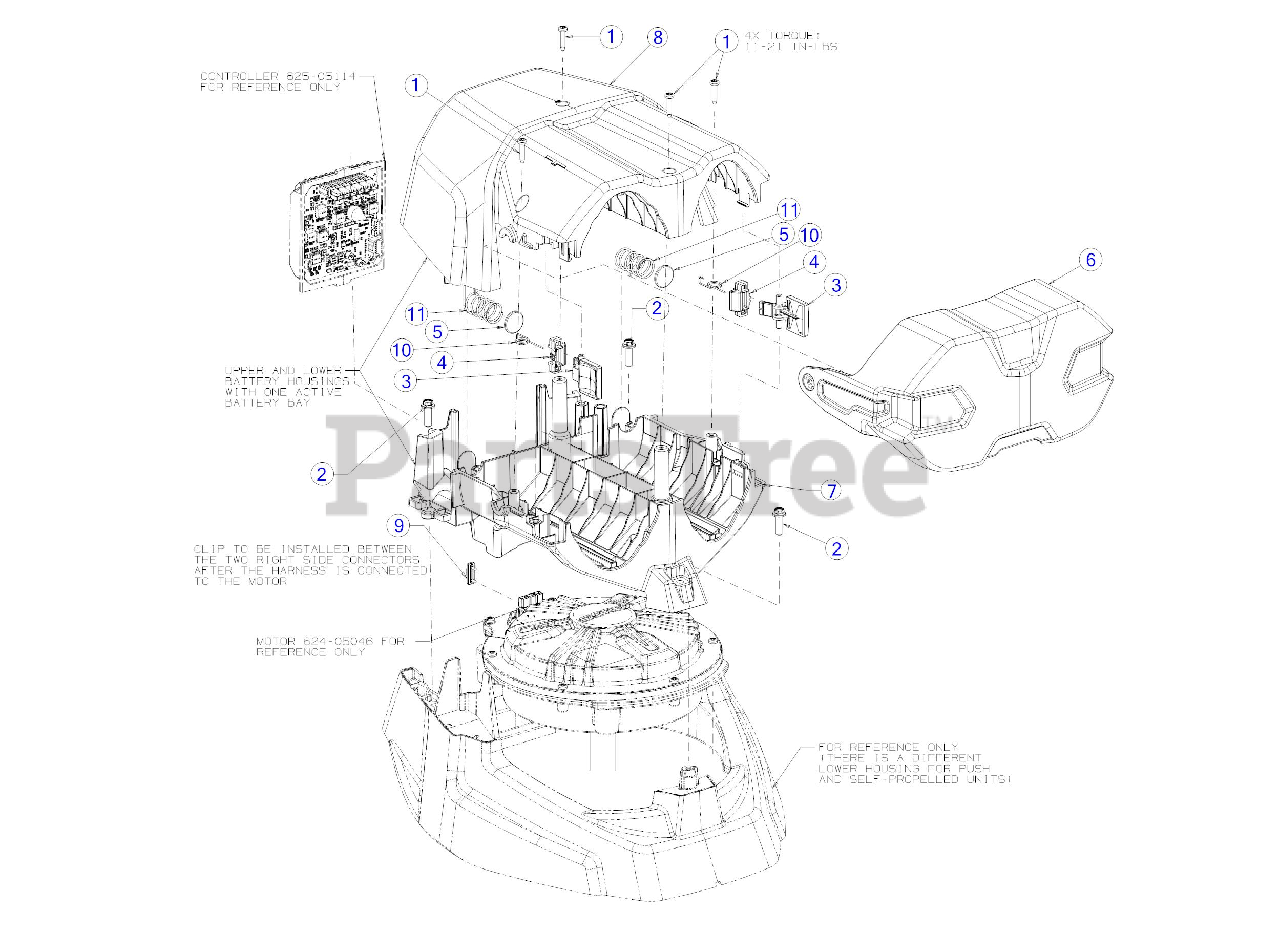

Motor Housing Parts Diagram

  • Title

1

Troy-Bilt 710-04510

SCREW 7-18X.75:T20

$3.49

$

Usually ships in 3-6 days

0

2

Troy-Bilt 710-05108

SCREW 1/4 x .750

$3.99

$

In Stock, Qty 20+

0

3

Troy-Bilt 753-08644

BATTERY LATCH

Note: (Includes Ref. 4)

$3.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 731-11598

BATTERY RELEASE LATCH
(Superseded to 731-11598-10)

$3.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 731-11649-1

BATTERY RELEASE SPRING CAP

$3.49

$

Usually ships in 3-6 days

0

6

Troy-Bilt 731-11916

BATTERY HOUSING LID

$30.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt 731-12154

MIDDLE BATTERY HOUSING

$37.99

$

Usually ships in 3-6 days

0

8

Troy-Bilt 731-12155

SINGLE BATTERY UPPER HOUSING

$42.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 731-12735

RETAINING CLIP

$7.49

$

Usually ships in 3-6 days

0

10

Troy-Bilt 753-05007

TRIGGER SPRING

$5.49

$

In Stock, only 2 left!

0

11

Troy-Bilt 732-05407

BATTERY RELEASE SPRING

$2.49

$

Usually ships in 3-6 days

0
