TB 510 (18AEB9C7711) - Troy-Bilt Walk-Behind Mower, Electric (2016) Motor Housing Parts Diagram

Walk-Behind Mower, Electric

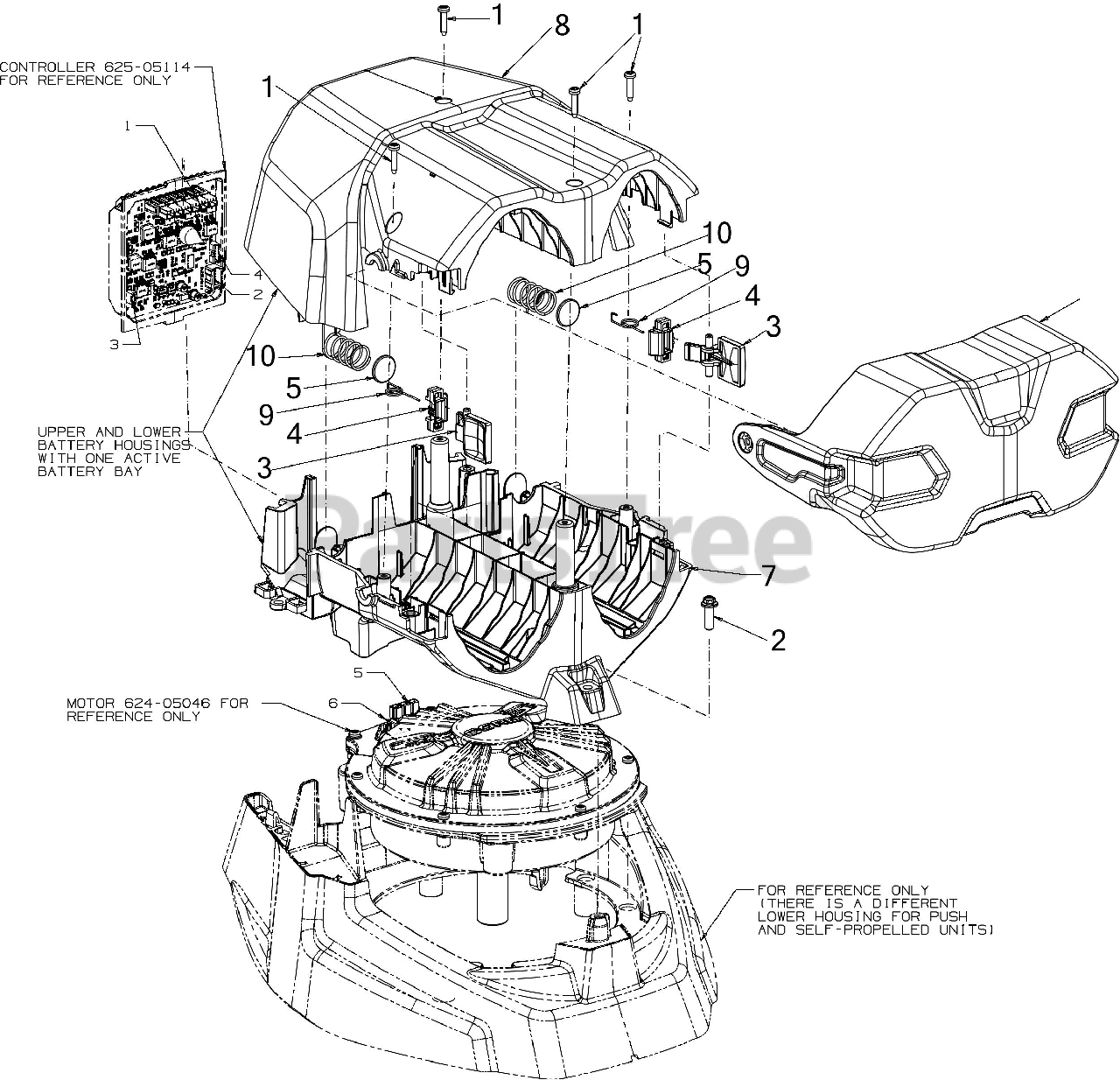

Motor Housing Parts Diagram

  • Title

1

Troy-Bilt 710-04510

SCREW 7-18X.75:T20

$3.49

$

In Stock, Qty 16

0

2

Troy-Bilt 710-05108

SCREW 1/4 x .750

$3.99

$

In Stock, Qty 20+

0

3

MTD 731-11597

BATTERY RELEASE BUTTON

$

$

Not available

4

Troy-Bilt 731-11598

BATTERY RELEASE LATCH
(Superseded to 731-11598-10)

$3.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 731-11649

BATTERY RELEASE SPRING CAP
(Superseded to 731-11649-1)

$3.49

$

Usually ships in 3-6 days

0

6

Troy-Bilt 731-11916

BATTERY HOUSING LID

$30.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt 731-12154

MIDDLE BATTERY HOUSING

$37.99

$

Usually ships in 3-6 days

0

8

Troy-Bilt 731-12155

SINGLE BATTERY UPPER HOUSING

$42.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 753-05007

TRIGGER SPRING

$5.49

$

In Stock, only 3 left!

0

10

Troy-Bilt 732-05407

BATTERY RELEASE SPRING

$2.49

$

Usually ships in 3-6 days

0
