TB 5018 CC (41AY08AR966) - Troy-Bilt Chainsaw General Assembly 2 Parts Diagram

Chainsaw

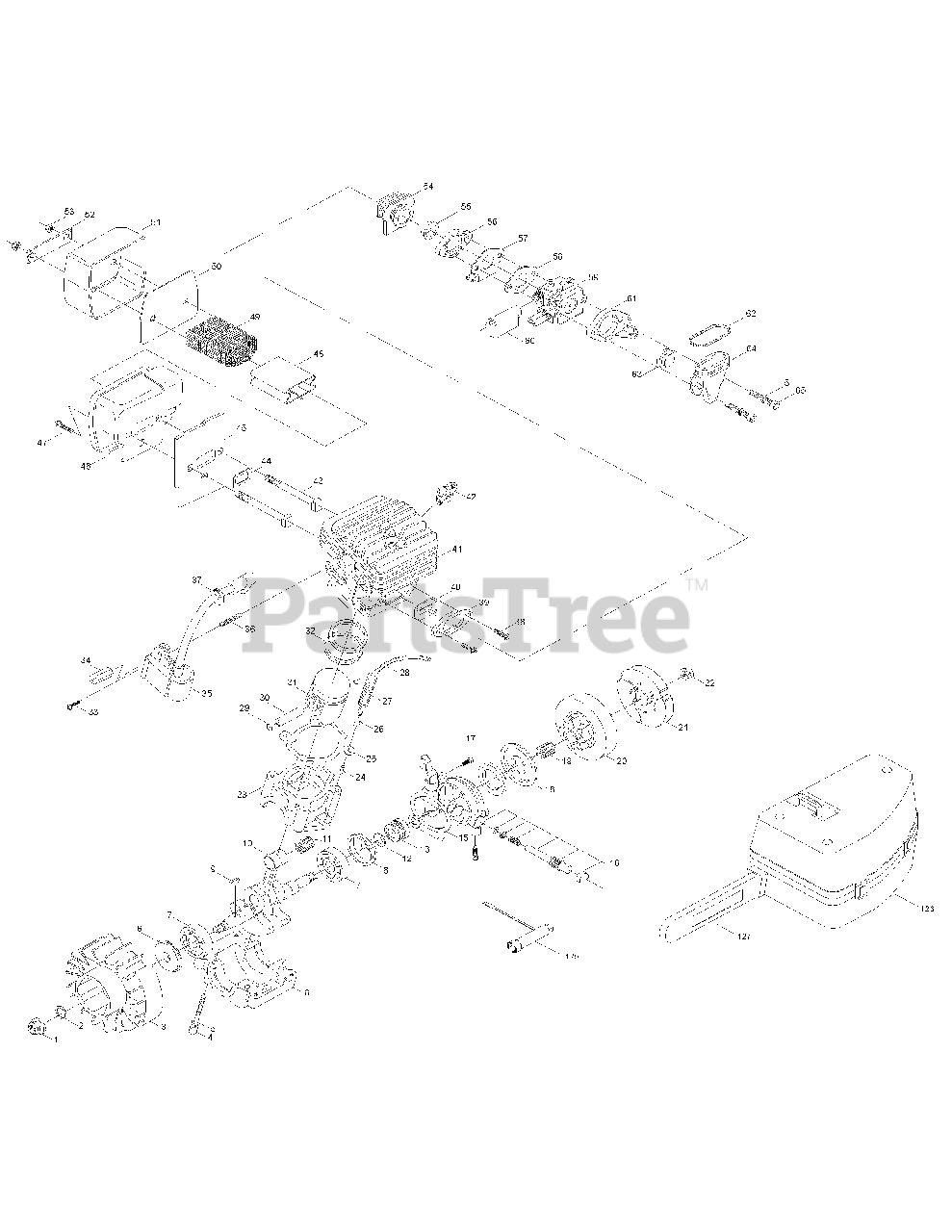

General Assembly 2 Parts Diagram

  • Title

$

$

Not available

$

$

Not available

3

$

$

Not available

4

$

$

Not available

5

$

$

Not available

$

$

Not available

$

$

Not available

8

Troy-Bilt MC-9072-3102Y1F

CRANKCASE LOWER

$

$

Currently unavailable

$

$

Not available

10

Troy-Bilt MC-9228-310203A

C'SHAFT/C'ROD ASS'Y

$

$

Not available

$

$

Not available

$

$

Not available

13

MTD MC-9073-310201

GEAR, WORM

$

$

Not available

$

$

Not available

15

$

$

Not available

16

MTD MC-9228-310235

PUMP ASS'Y

$

$

Not available

$

$

Not available

$

$

Not available

19

$

$

Not available

20

MTD MC-9228-310211

DRUM SPRKT ASS'Y

$

$

Not available

21

MTD MC-9228-310210

CLUTCH ASS'Y

$

$

Not available

$

$

Not available

23

MTD MC-9072-3102Y2F

CRANKCASE UPPER

$

$

Not available

24

Troy-Bilt MC-9124-310201

FITTING, PULSE LINE

$

$

Not available

25

$

$

Not available

26

MTD MC-9036-310201

CLAMP, WIRE HOSE

$

$

Not available

27

Troy-Bilt MC-9059-310201

CONDUIT, FLEX

$

$

Not available

$

$

Not available

$

$

Not available

$

$

Not available

31

$

$

Not available

32

MTD MC-9189-31C201

RING, PISTON

$

$

Not available

$

$

Not available

34

$

$

Not available

35

MTD 725-04321

IGNITION ASS'Y

$

$

Not available

$

$

Not available

$

$

Not available

38

Troy-Bilt 710-04297

SCREW
(Superseded to 710-04491)

$

$

Not available

39

Troy-Bilt 322649

FLANGE
(Superseded to MC-9014-310203)

$

$

Not available

$

$

Not available

41

$

$

Not available

42

MTD MC-9295-320001

SPARK PLUG

$

$

Not available

43

$

$

Not available

$

$

Not available

45

$

$

Not available

46

MTD MC-9228-310217

MUFFLER BODY ASS'Y

$

$

Not available

$

$

Not available

$

$

Not available

49

$

$

Not available

50

$

$

Not available

51

MTD MC-9017-310204

COVER, MUFFLER

$

$

Not available

52

MTD MC-9158-310201

LOCKPLATE

$

$

Not available

$

$

Not available

54

Troy-Bilt MC-9124-310202

BOOT, CARBURETOR

$

$

Not available

55

$

$

Not available

$

$

Not available

$

$

Not available

$

$

Not available

59

MTD MC-9287-31C201

CARBURETOR

$

$

Not available

$

$

Not available

61

$

$

Not available

62

$

$

Not available

$

$

Not available

$

$

Not available

$

$

Not available

66

$

$

Not available

67

Troy-Bilt MC-9228-31B205

STARTER ASS'Y

$

$

Not available

$

$

Not available

$

$

Not available

$

$

Not available

$

$

Not available

$

$

Not available

$

$

Not available

74

MTD MC-9142-310002

PRIMER, REMOTE

$

$

Not available

$

$

Not available

$

$

Not available

77

MTD MC-9182-310503

FILTER, FUEL

$

$

Not available

$

$

Not available

79

$

$

Not available

80

Troy-Bilt MC-9228-310205

FUEL/OIL TANK ASS'Y

$87.99

$

Usually ships in 3-6 days

0

81

MTD MC-9070-310002

VALVE DUCKBILL

$

$

Not available

$

$

Not available

$

$

Not available

$

$

Not available

85

$

$

Not available

86

$

$

Not available

$

$

Not available

$

$

Not available

$

$

Not available

90

$

$

Not available

91

MTD MC-9043-310202

PLATE, FLANGE

$

$

Not available

$

$

Currently unavailable

93

MTD MC-9220-31B203

20" CHAIN

$

$

Not available

94

$

$

Not available

$

$

Not available

96

MTD MC-9228-310241

CHAIN BRAKE ASS'Y

$

$

Not available

$

$

Not available

$

$

Not available

99

MTD MC-9228-31C201

CHOKE ASS'Y

$

$

Not available

100

MTD MC-9114-310202

ROD, CHOKE

$

$

Not available

$

$

Not available

102

Troy-Bilt MC-9228-310213

ISOLATOR ASS'Y

$

$

Not available

103

MTD MC-9228-310214

CABLE ASS'Y

$

$

Not available

$

$

Not available

105

$

$

Not available

$

$

Not available

107

Troy-Bilt MC-9028-310201

RELEASE, TRIGGER

$

$

Not available

$

$

Not available

$

$

Not available

110

$

$

Not available

$

$

Not available

$

$

Not available

113

MTD MC-9228-310222

ISOLATOR ASS'Y

$

$

Not available

114

$

$

Not available

115

Troy-Bilt MC-9228-310232

COVER ASS'Y, HANDLE
(Superseded to MC-9228-310232P)

$

$

Not available

$

$

Not available

$

$

Not available

118

$

$

Not available

119

Troy-Bilt MC-9228-31B202

HANDLE ASS'Y
(Superseded to MC-9228-31B202P)

$

$

Not available

120

MTD MC-9228-310216

COVER ASS'Y

$

$

Not available

121

$

$

Not available

$

$

Not available

123

MTD MC-9228-310204

AIR CLEANER ASS'Y

$

$

Not available

$

$

Not available

125

$

$

Not available

126

MTD MC-9120-MD0701

CARRY CASE

$

$

Not available

127

$

$

Not available
