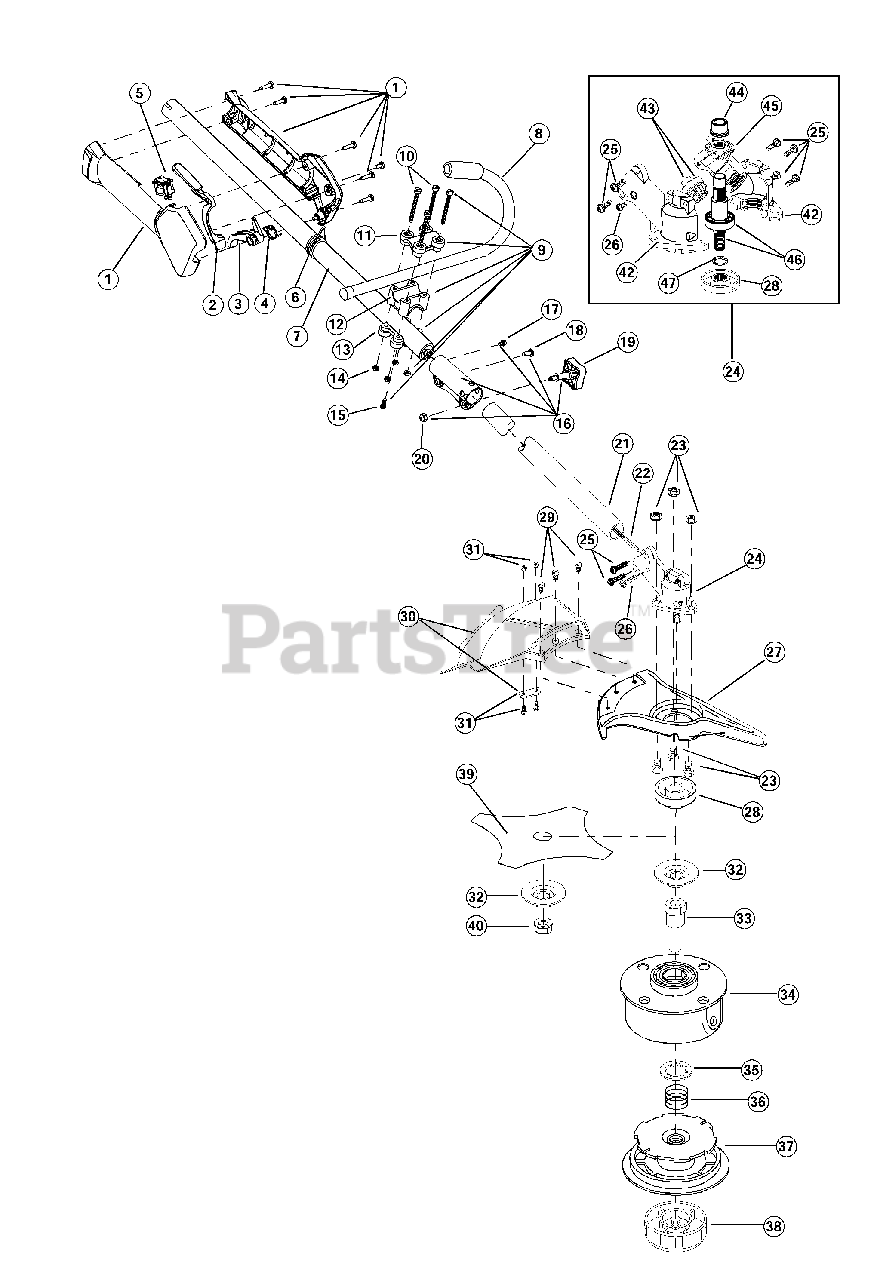

TB 490 BC (41BDT49C063) - Troy-Bilt Brush Cutter Boom And Trimmer Parts Parts Diagram

Brush Cutter

Boom And Trimmer Parts Parts Diagram

  • Title

1

MTD 791-00040

Throttle Housing and Trigger Assembly
(Superseded to 753-05321)

Note: (includes 2-4)

$

$

Not available

2

MTD 791-00041

Throttle Trigger Lock-Out

$

$

Not available

3

Troy-Bilt 791-00042

Throttle Trigger
(Superseded to 753-06754)

$7.49

$

In Stock, only 1 left!

0

4

Troy-Bilt 791-182690

Throttle Trigger Spring

$7.99

$

In Stock, only 2 left!

0

5

Troy-Bilt 791-182405

Switch Assembly

$10.99

$

In Stock, Qty 12

0

6

Troy-Bilt 791-610327

Harness Clip

$32.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt 753-1247

Upper Drive Shaft Housing Assembly
(Superseded to 753-04503)

$

$

Not available

8

MTD 791-181099

J-Handle Assembly

$

$

Not available

9

Troy-Bilt 791-683295

Handle Bracket Assembly

Note: (includes 10-15)

$45.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt 791-181811

Screw

$4.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 791-181812

Upper Handle Clamp

$8.99

$

Usually ships in 3-6 days

0

12

Troy-Bilt 791-181813

Middle Handle Clamp

$12.99

$

Usually ships in 3-6 days

0

13

Troy-Bilt 791-181814

Lower Handle Clamp

$8.99

$

Usually ships in 3-6 days

0

14

Troy-Bilt 791-181815

Nut

$4.49

$

Usually ships in 3-6 days

0

15

Troy-Bilt 791-145569

Anti-Rotation Screw

$9.99

$

In Stock, Qty 7

0

16

Troy-Bilt 753-1190

EZ-Link Coupler

Note: (includes 17-20)

$23.99

$

In Stock, only 1 left!

0

17

Troy-Bilt 791-182057

Screw

$4.49

$

In Stock, Qty 6

0

18

Troy-Bilt 791-181617

Bolt

$5.49

$

In Stock, Qty 11

0

19

Troy-Bilt 791-181981

Adjustment Knob
(Superseded to 697-00661-9)

$

$

Not available

20

Troy-Bilt 791-181886

Knob Retaining Nut

$3.49

$

In Stock, only 4 left!

0

21

Troy-Bilt 791-182541

Lower Drive Shaft Housing Assembly

$92.99

$

Usually ships in 3-6 days

0

22

Troy-Bilt 791-613300

Lower Flexible Drive Shaft

$88.99

$

Usually ships in 3-6 days

0

23

Troy-Bilt 791-182200

Shield Mount Screw Assembly

$6.99

$

In Stock, only 2 left!

0

24

Troy-Bilt 791-182193

2 piece Gearbox Assembly

Note: (includes 25-28)

$99.99

$

In Stock, only 2 left!

0

25

Troy-Bilt 791-182195

Gearbox Screw

$7.49

$

In Stock, Qty 20+

0

26

Troy-Bilt 791-145569

Anti-Rotation Screw

$9.99

$

In Stock, Qty 7

0

27

Troy-Bilt 791-147492

Blade Shield/Shield Mount

$126.99

$

Usually ships in 3-6 days

0

28

Troy-Bilt 791-182196

Blade Driver

$22.99

$

In Stock, only 2 left!

0

29

Troy-Bilt 791-683304

Shield Mounting Screw

$11.99

$

In Stock, only 1 left!

0

30

Troy-Bilt 753-1191

Shield and Blade Assembly

Note: (includes 31)

$64.99

$

In Stock, only 1 left!

0

31

Troy-Bilt 791-682061

Blade Assembly

$14.99

$

In Stock, only 1 left!

0

32

Troy-Bilt 791-147490

Retaining Washer

$11.99

$

In Stock, only 2 left!

0

33

Troy-Bilt 791-612483

Spool Shaft

$55.99

$

In Stock, only 1 left!

0

34

Troy-Bilt 791-683301

Outer Spool and Eyelet Assembly

$48.99

$

In Stock, Qty 6

0

35

Troy-Bilt 791-612026

Retainer
(Superseded to 1772)

$6.99

$

In Stock, Qty 13

0

36

Troy-Bilt 791-610636B

Spring

$10.99

$

In Stock, only 2 left!

0

37

Troy-Bilt 791-147495

Inner Reel

$26.99

$

In Stock, Qty 7

0

38

Troy-Bilt 791-180814B

Bump Head Knob Assembly

$21.99

$

In Stock, Qty 20+

0

39

Troy-Bilt 791-145873B

4-Tooth Blade

$42.99

$

In Stock, only 4 left!

0

40

Troy-Bilt 791-181699

Nut
(Superseded to 712-04105)

$10.99

$

Usually ships in 3-6 days

0

Troy-Bilt 791-180014B

Blade Retaining Kit

Note: (includes 32 & 40); Not Shown

$12.99

$

In Stock, only 1 left!

0

Troy-Bilt 791-613226

Locking Rod Tool

Note: Not Shown

$14.99

$

In Stock, only 1 left!

0

Troy-Bilt 791-682075B

Shoulder Harness

Note: Not Shown

$38.99

$

Usually ships in 3-6 days

0

41

MTD 791-182191

Left Housing

Note: 2 Piece Gearbox Assembly Parts - Item 24

$

$

Not available

42

MTD 791-182192

Right Housing

Note: 2 Piece Gearbox Assembly Parts - Item 24

$

$

Not available

43

Troy-Bilt 791-182194

Pinion Gear Assembly

Note: 2 Piece Gearbox Assembly Parts - Item 24

$31.99

$

Usually ships in 3-6 days

0

44

Troy-Bilt 791-182199

Output Shaft Bushing

Note: 2 Piece Gearbox Assembly Parts - Item 24

$

$

Not available

45

Troy-Bilt 791-182198

Output Shaft Gear

Note: 2 Piece Gearbox Assembly Parts - Item 24

$

$

Not available

46

Troy-Bilt 791-182197

Output Shaft Assembly

Note: (includes 44 & 45)

$

$

Not available

47

Troy-Bilt 753-1159

O-Ring

Note: 2 Piece Gearbox Assembly Parts - Item 24

$

$

Not available

Troy-Bilt 753-1160

Reel and Line Assembly
(Superseded to 753-1224)

Note: Optional Accessory; Not Shown

$32.99

$

Usually ships in 3-6 days

0

Troy-Bilt 753-1161

Bump Head Assembly
(Superseded to 791-147498)

Note: Optional Accessory; Not Shown; (includes 33-38)

$117.99

$

In Stock, only 1 left!

0
