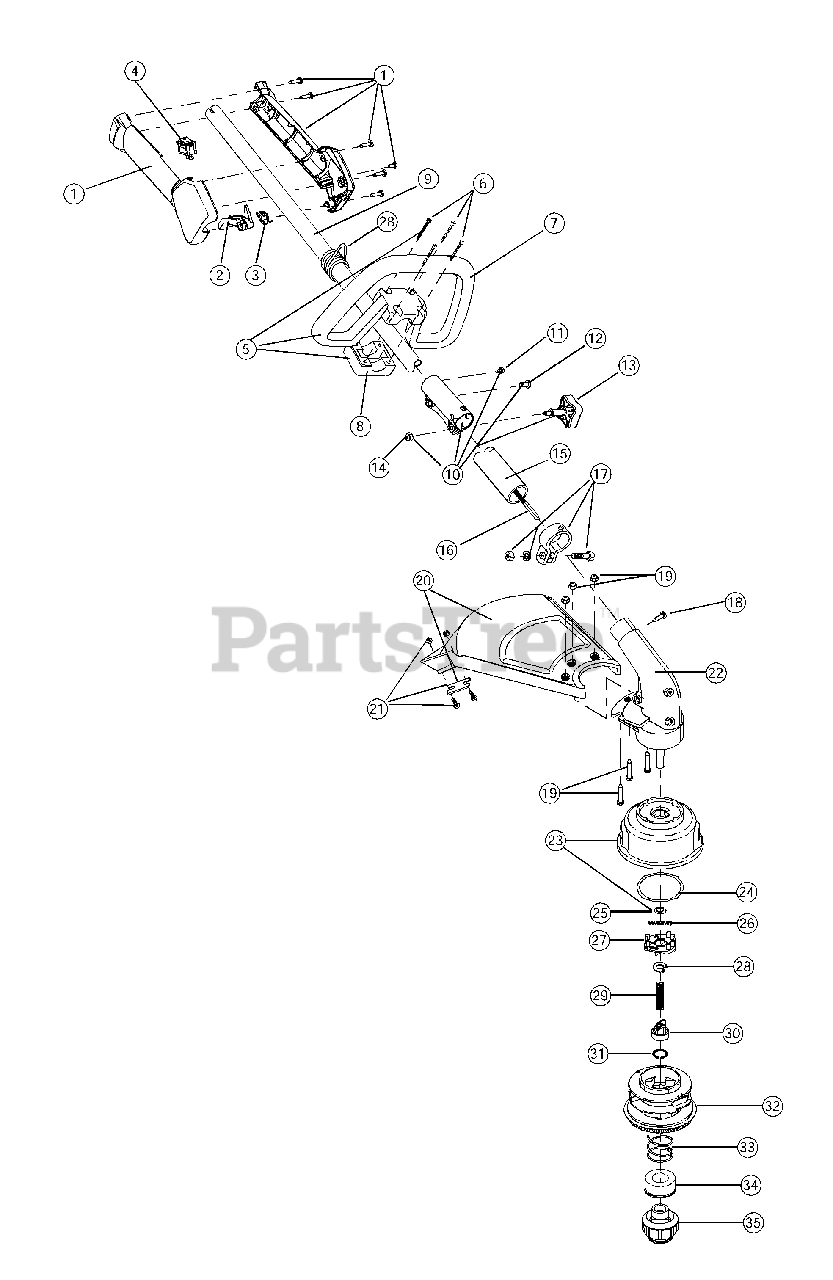

TB 475 SS (41BDT47C063) - Troy-Bilt String Trimmer Boom And Trimmer Parts Parts Diagram

String Trimmer

Boom And Trimmer Parts Parts Diagram

  • Title

1

Troy-Bilt 753-04234

Throttle Housing and Trigger Assembly

Note: (includes 2 & 3)

$21.99

$

In Stock, Qty 7

0

2

Troy-Bilt 753-04119

Throttle Trigger

$7.49

$

In Stock, Qty 18

0

3

Troy-Bilt 791-182690

Throttle Trigger Spring

$7.99

$

In Stock, only 2 left!

0

4

Troy-Bilt 791-182405

Switch Assembly

$10.99

$

In Stock, Qty 12

0

5

MTD 791-180869

Deluxe D-Handle Assembly

Note: (includes 6-8)

$

$

Not available

6

MTD 791-182870

Handle Mount Hardware

$

$

Not available

7

Troy-Bilt 791-182167

Deluxe D-Handle

$76.99

$

Usually ships in 3-6 days

0

8

MTD 791-182168

Bottom Clamp

$

$

Not available

9

Troy-Bilt 753-1247

Upper Drive Shaft Housing Assembly
(Superseded to 753-04503)

$

$

Not available

10

Troy-Bilt 753-1190

EZ-Link (TM) Coupler

Note: (includes 11-14)

$23.99

$

In Stock, only 1 left!

0

11

Troy-Bilt 791-182057

Screw

$4.49

$

In Stock, only 3 left!

0

12

Troy-Bilt 791-181617

Bolt

$5.49

$

In Stock, Qty 11

0

13

Troy-Bilt 791-181981

Adjustment Knob
(Superseded to 697-00661-9)

$

$

Not available

14

Troy-Bilt 791-181886

Knob Retaining Nut

$3.49

$

In Stock, only 4 left!

0

15

MTD 791-182388

Lower Drive Shaft Housing Assembly

$

$

Not available

16

Troy-Bilt 791-181166

Lower Flexible Drive Shaft

$28.99

$

Usually ships in 3-6 days

0

17

Troy-Bilt 791-153597

Lower Clamp Assembly

Note: (includes 18)

$

$

Not available

18

Troy-Bilt 791-145569

Anti-Rotation Screw

$9.99

$

In Stock, Qty 7

0

19

Troy-Bilt 791-180547

Shield Mounting Hardware

$

$

Not available

20

Troy-Bilt 753-1213

Shield and Blade Assembly
(Superseded to 1A6902)

Note: (includes 21)

$

$

Not available

21

Troy-Bilt 791-181823

Blade Assembly

$12.99

$

Usually ships in 3-6 days

0

22

MTD 791-181566

Gearbox Assembly

$

$

Not available

23

Troy-Bilt 791-181457

Outer Spool & Eyelet Assembly

$39.99

$

In Stock, only 1 left!

0

24

Troy-Bilt 791-181458

Retaining Ring

$4.49

$

In Stock, Qty 12

0

25

Troy-Bilt 791-181561

Thrust Washer

$4.49

$

In Stock, Qty 5

0

26

Troy-Bilt 791-181459

Small Spring

$4.49

$

In Stock, only 2 left!

0

27

Troy-Bilt 753-04257

Slider

$7.49

$

In Stock, Qty 20+

0

28

Troy-Bilt 791-181532

E-Clip

$4.49

$

In Stock, Qty 8

0

29

Troy-Bilt 791-181531

Spring

$4.49

$

In Stock, Qty 9

0

30

Troy-Bilt 791-181462

Plunger

$

$

Not available

31

Troy-Bilt 791-181463

C-Clip

$3.99

$

Usually ships in 3-6 days

0

32

Troy-Bilt 791-181464

Inner Reel
(Superseded to 791-181460B)

$32.99

$

Usually ships in 3-6 days

0

33

Troy-Bilt 791-181465

Large Spring

$

$

Currently unavailable

34

Troy-Bilt 791-181467

Foam Seal

$

$

Not available

35

Troy-Bilt 791-181468

Bump Head Knob Assembly
(Superseded to 791-181468B)

Note: (includes 33 & 34)

$

$

Not available

Troy-Bilt 791-180120

Replacement Line, 0.095 Diameter
(Superseded to 953-1156)

Note: Optional Accessory; Not Shown

$31.99

$

In Stock, only 1 left!

0

Troy-Bilt 753-04218

Reel and Line Assembly

Note: Optional Accessory; Not Shown

$

$

Not available

Troy-Bilt 791-682075

Shoulder Strap Assembly
(Superseded to 791-682075B)

Note: Optional Accessory; Not Shown

$38.99

$

Usually ships in 3-6 days

0
