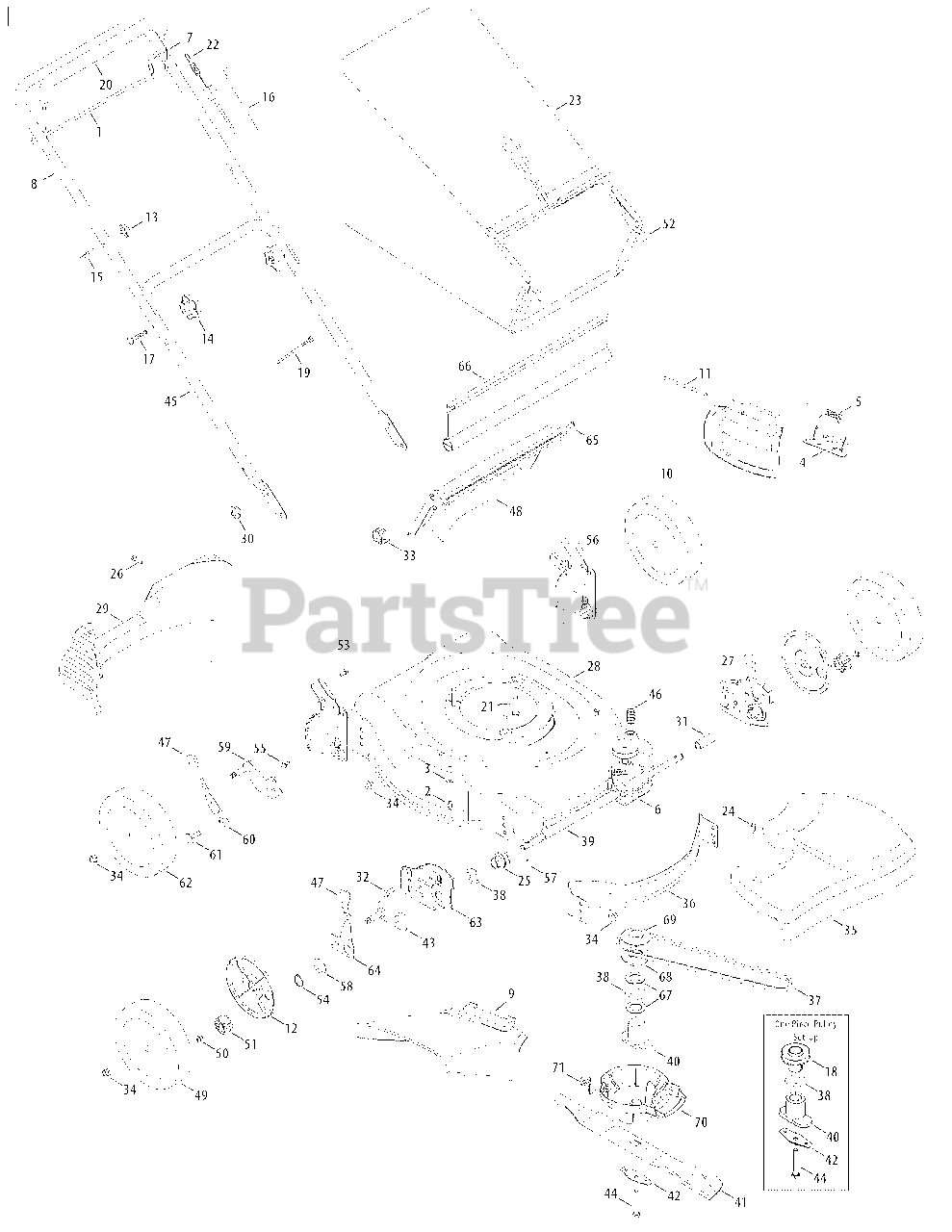

TB 466 (12A-466M066) - Troy-Bilt Walk-Behind Mower (2009) General Assembly Parts Diagram

Walk-Behind Mower

General Assembly Parts Diagram

  • Title
1

Troy-Bilt 747-1214

Drive Control

$22.99

$

In Stock, Qty 5

0

2

Troy-Bilt 710-0599

TT Screw 1/4-20 x 0.5

$4.49

$

In Stock, Qty 20+

0

3

Troy-Bilt 736-0270

Bell Washer.265 x 0.75

$3.99

$

In Stock, Qty 20+

0

4

Troy-Bilt 17032A

Deflector Chute Adapter

$10.99

$

In Stock, only 2 left!

0

5

Troy-Bilt 732-1014

Torsion Spring
(Superseded to 732-1014C)

$7.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 918-04376A

Transmission Assembly
(Superseded to 918-04376B)

$

$

Not available

7

Troy-Bilt 747-1161A-0637

Blade Control

$13.99

$

In Stock, only 4 left!

0

8

$48.99

$

In Stock, only 1 left!

0

9

Troy-Bilt 731-04177

Chute Deflector

$19.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 987-02055

Mulch Plug Complete

$27.99

$

In Stock, Qty 10

0

11

Troy-Bilt 747-0710

Hinge Pin
(Superseded to 747-0710A)

$4.49

$

In Stock, Qty 20+

0

12

Troy-Bilt 782-7551A

Wheel Dust Cap

$5.49

$

In Stock, Qty 20+

0

13

Troy-Bilt 720-0279

Handle Knob

$4.49

$

In Stock, Qty 20+

0

14

Troy-Bilt 720-04072

Star Knob
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 20+

0

15

$3.99

$

In Stock, Qty 20+

0

16

Troy-Bilt 746-1132

Control Cable - 40.75"
(Superseded to 946-1132)

$22.99

$

In Stock, only 4 left!

0

17

Troy-Bilt 710-1174

Carriage Bolt 5/16-18 x 2.0

$7.49

$

In Stock, Qty 20+

0

18

Troy-Bilt 656-04047A

Pulley Assembly, Drive

Note: If Equipped

$26.99

$

In Stock, only 1 left!

0

19

Troy-Bilt 926-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

20

Troy-Bilt 731-04204

Bail Cover

$11.99

$

In Stock, only 3 left!

0

21

Troy-Bilt 710-0654A

Self-Tapping Sems Screw

$4.49

$

In Stock, Qty 20+

0

22

Troy-Bilt 746-04203

Drive Cable - 51"
(Superseded to 946-04203)

$48.99

$

In Stock, Qty 5

0

23

Troy-Bilt 964-04011

Grassbag
(Superseded to 964-04007A)

$130.99

$

In Stock, Qty 15

0

24

Troy-Bilt 710-1650

Shoulder Screw # 12 -24

$4.99

$

In Stock, Qty 20+

0

25

Troy-Bilt 987-02347

Front Bearing Assembly

$17.99

$

In Stock, only 3 left!

0

26

Troy-Bilt 710-1241

Screw, 1/4-15 x 1.000

$6.99

$

In Stock, Qty 16

0

27

Troy-Bilt 987-02194A

Height Adjustment Ass’y - RH

$66.99

$

Usually ships in 3-6 days

0

27

Troy-Bilt 987-02193A

Height Adjustment Ass’y - LH

$66.99

$

Usually ships in 3-6 days

0

$

$

Not available

29

Troy-Bilt 731-04150C

Rear Baffle

$42.99

$

In Stock, only 2 left!

0

30

Troy-Bilt 912-0397

Wing Nut
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

31

Troy-Bilt 750-04595

Slev. Spacer 1.4" Lg.

$4.99

$

In Stock, only 1 left!

0

32

Troy-Bilt 710-0216

Hex Screw, 3/8-16 x.75

$4.49

$

In Stock, Qty 14

0

33

Troy-Bilt 732-04090A

Torsion Spring - RH

$7.99

$

Usually ships in 3-6 days

0

34

Troy-Bilt 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

35

Troy-Bilt 931-05020A

Transmission Cover

$70.99

$

Usually ships in 3-6 days

0

36

Troy-Bilt 782-5002B

Front Baffle
(Superseded to 782P5002B)

$

$

Not available

$14.99

$

In Stock, Qty 20+

0

38

Troy-Bilt 936-0447

Wave Washer
(Superseded to 736-0447)

$4.49

$

In Stock, Qty 20+

0

39

Troy-Bilt 750-04594

Sleeve Spacer 8.985" Lg.

$9.49

$

In Stock, only 1 left!

0

40

Troy-Bilt 748-04082

Blade Adapter, 25mm

$37.99

$

In Stock, only 1 left!

0

41

Troy-Bilt 942-0741

21" Mulching Blade
(Superseded to 942-0741A)

$29.99

$

In Stock, Qty 20+

0

42

Troy-Bilt 736-0524B

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, Qty 14

0

43

Troy-Bilt 987-02334

Pivot Plate Assembly

$9.99

$

In Stock, Qty 5

0

44

Troy-Bilt 710-1257

Hex Screw 3/8-24 x 2.50

$7.99

$

In Stock, only 1 left!

0

45

$33.99

$

In Stock, only 2 left!

0

46

Troy-Bilt 732-1043

Belt Tension Spring

$4.49

$

In Stock, Qty 13

0

47

Troy-Bilt 720-0426

Adjustment Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

48

Troy-Bilt 731-06847

Rear Discharge Door

$28.99

$

Usually ships in 3-6 days

0

49

Troy-Bilt 734-04018A

Front Wheel
(Superseded to 734-04018C)

$19.99

$

In Stock, Qty 20+

0

50

Troy-Bilt 710-04531

Screw, 1/4-20 x .390

$5.49

$

In Stock, Qty 20+

0

51

Troy-Bilt 717-1762

Gear 14T RH FWD

$13.99

$

In Stock, only 3 left!

0

51

Troy-Bilt 717-1761

Gear 14T LH FWD

$13.99

$

In Stock, only 4 left!

0

52

Troy-Bilt 747-04080A

Grass Bag Frame

Variations

Troy-Bilt 747-04080A-0637

Grass Bag Frame, 21" - POWDER BLACK (0637)

$59.99

$

In Stock, Qty 5

0

$59.99

$

In Stock, Qty 5

0

53

Troy-Bilt 710-0703

Carriage Bolt 1/4-20

$4.49

$

In Stock, Qty 20+

0

54

Troy-Bilt 716-0102

Snap Ring

$5.49

$

In Stock, Qty 20+

0

55

Troy-Bilt 710-1652

TT Scr. w/Washer 1/4-20 x.625

$4.49

$

In Stock, Qty 20+

0

56

Troy-Bilt 987-02271A

Handle Bracket Assembly - RH

$

$

Not available

56

Troy-Bilt 987-02270A

Handle Bracket Assembly - LH

$38.99

$

In Stock, only 1 left!

0

57

Troy-Bilt 915-022

Dowel Pin

$

$

Currently unavailable

58

$6.99

$

In Stock, only 3 left!

0

59

Troy-Bilt 987-02333

Pivot Arm Assembly - RH

$17.99

$

In Stock, only 1 left!

0

59

Troy-Bilt 987-02332

Pivot Arm Assembly - LH

$18.99

$

Usually ships in 3-6 days

0

60

Troy-Bilt 732-04175

Rear Spring Lever

$11.99

$

In Stock, only 1 left!

0

61

Troy-Bilt 738-04266

Shoulder Scr.500 Dia. x.434

$6.49

$

Usually ships in 3-6 days

0

62

Troy-Bilt 734-04014B

Rear Wheel
(Superseded to 753-08175)

$43.99

$

In Stock, Qty 18

0

63

Troy-Bilt 787-01298

Height Adjuster Plate - RH
(Superseded to 787-01298A-0637)

$19.99

$

Usually ships in 3-6 days

0

63

Troy-Bilt 787-01299

Height Adjuster Plate - LH
(Superseded to 787-01299A-0637)

$15.99

$

In Stock, only 1 left!

0

64

Troy-Bilt 732-0706

Front Lever - RH

$15.99

$

In Stock, only 4 left!

0

64

Troy-Bilt 732-0707

Front Lever - LH

$15.99

$

In Stock, only 1 left!

0

65

$15.99

$

Usually ships in 3-6 days

0

66

Troy-Bilt 731-05642A

Rear Trailing Shield

$28.99

$

In Stock, Qty 9

0

67

Troy-Bilt 736-0277

Washer, Flat, 1.031 x 1.620 x .095

Note: If Equipped

$4.49

$

In Stock, Qty 20+

0

68

Troy-Bilt 956-04160

Pulley, Half

Note: If Equipped

$20.99

$

Usually ships in 3-6 days

0

69

Troy-Bilt 956-04161

Pulley, Half

Note: If Equipped

$13.99

$

In Stock, only 1 left!

0

70

Troy-Bilt 931-06029

Engine Baffle
(Superseded to 753-06116)

$16.99

$

In Stock, only 1 left!

0

71

Troy-Bilt 787-01593

Engine Baffle Bracket

$5.99

$

In Stock, Qty 5

0
