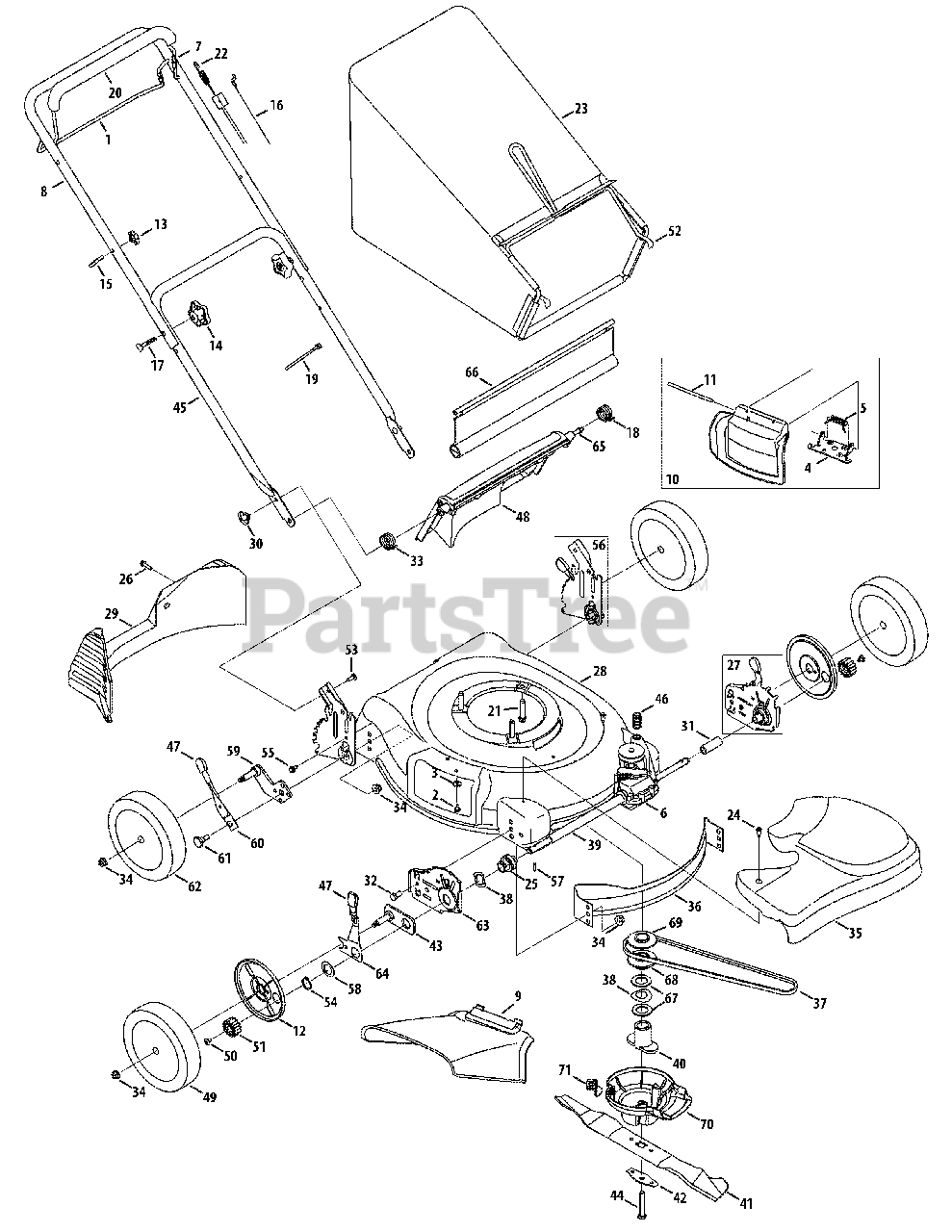

TB 466 (12A-466M011) - Troy-Bilt Walk-Behind Mower (2008) General Assembly Parts Diagram

Walk-Behind Mower

General Assembly Parts Diagram

  • Title
1

Troy-Bilt 747-1214

Drive Control

$22.99

$

In Stock, Qty 5

0

2

Troy-Bilt 710-0599

TT Screw 1/4-20 x .05

$4.49

$

In Stock, Qty 20+

0

3

Troy-Bilt 736-0270

Bell Washer .265 x .075

$3.99

$

In Stock, Qty 20+

0

4

Troy-Bilt 17032A

Deflector Chute Adapter

$10.99

$

In Stock, only 2 left!

0

5

Troy-Bilt 732-1014

Torsion Spring
(Superseded to 732-1014C)

$7.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 618-04376A

Transmission Assembly
(Superseded to 918-04376B)

$

$

Not available

7

Troy-Bilt 747-1161A

Blade Control

Variations

Troy-Bilt 747-1161A-0637

Operator Bail, Black - POWDER BLACK (0637)

$13.99

$

In Stock, only 4 left!

0

$13.99

$

In Stock, only 4 left!

0

8

Troy-Bilt 749-1092A

Upper Handle

Variations

Troy-Bilt 749-1092A-0637

Upper Handle, Black - POWDER BLACK (0637)

$48.99

$

In Stock, only 1 left!

0

Troy-Bilt 749-1092A-0638

HANDLE-UPPER - MTD/TROY-BILT RED (0638)

$48.99

$

Usually ships in 3-6 days

0

$48.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 731-04177

Chute Deflector

$19.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 687-02055

Mulch Plug Complete
(Superseded to 987-02055)

$27.99

$

In Stock, Qty 10

0

11

Troy-Bilt 747-0710

Hinge Pin
(Superseded to 747-0710A)

$4.49

$

In Stock, Qty 20+

0

12

Troy-Bilt 782-7551A

Wheel Dust Cap

$5.49

$

In Stock, Qty 20+

0

13

Troy-Bilt 720-0279

Handle Knob

$4.49

$

In Stock, Qty 20+

0

14

Troy-Bilt 720-04072

Star Knob
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 20+

0

15

$3.99

$

In Stock, Qty 20+

0

16

Troy-Bilt 746-1132

Control Cable 40.75''
(Superseded to 946-1132)

$22.99

$

In Stock, only 4 left!

0

17

Troy-Bilt 710-1174

Carriage Bolt 5/16-18 x 2.0

$7.49

$

In Stock, Qty 20+

0

18

Troy-Bilt 732-04089A

Torsion Spring - LH

$7.99

$

Usually ships in 3-6 days

0

19

Troy-Bilt 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

20

Troy-Bilt 731-04204

Bail Cover

$11.99

$

In Stock, only 3 left!

0

21

Troy-Bilt 710-0654A

Self-Tapping Sems Screw

$4.49

$

In Stock, Qty 20+

0

22

Troy-Bilt 746-04203

Drive Cable 51''
(Superseded to 946-04203)

$48.99

$

In Stock, Qty 5

0

23

Troy-Bilt 664-04011

Grass Bag
(Superseded to 964-04007A)

$130.99

$

In Stock, Qty 15

0

24

Troy-Bilt 710-1650

Shoulder Screw #12-24

$4.99

$

In Stock, Qty 20+

0

25

Troy-Bilt 687-02347

Front Bearing Assembly
(Superseded to 987-02347)

$17.99

$

In Stock, only 3 left!

0

26

Troy-Bilt 710-1241

Screw, 1/4-15 x 1.000

$6.99

$

In Stock, Qty 16

0

27

Troy-Bilt 687-02194A

Height Adjustment Assembly - RH
(Superseded to 987-02194A)

$66.99

$

Usually ships in 3-6 days

0

27

Troy-Bilt 687-02193A

Height Adjustment Assembly - LH
(Superseded to 987-02193A)

$66.99

$

Usually ships in 3-6 days

0

28

Variations

Troy-Bilt 787-01278-0606

DECK 21" - MAJESTIC ORANGE (0606)

$

$

Not available

Troy-Bilt 787-01278-0638

Mower Deck Kit, 21" Red - MTD/TROY-BILT RED (0638)

$

$

Not available

Troy-Bilt 787-01278-0650

DECK 21" - RED METALLIC (0650)

$

$

Not available

Troy-Bilt 787-01278-0665

DECK 21" - YARDMAN GREEN (0665)

$

$

Not available

Troy-Bilt 787-01278-0689

DECK 21" - POLO GREEN (0689)

$

$

Not available

Troy-Bilt 787-01278-0691

DECK 21" - BLACK JACK (0691)

$

$

Not available

Troy-Bilt 787-01278-4021

DECK 21" - CUB YELLOW 2 (4021)

$

$

Not available

Troy-Bilt 787-01278-0709

DECK 21" - MASTERCRAFT GREEN (0709)

$

$

Not available

Troy-Bilt 787-01278-0716

DECK 21" - CUB YELLOW-99 (0716)

$

$

Not available

$

$

29

Troy-Bilt 731-04150C

Rear Baffle

$42.99

$

In Stock, only 2 left!

0

30

Troy-Bilt 712-0397

Wing Nut
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

31

Troy-Bilt 750-04595

Sleeve Spacer 1.4''

$4.99

$

In Stock, only 1 left!

0

32

Troy-Bilt 710-0216

Hex Screw, 3/8-16 x .75

$4.49

$

In Stock, Qty 14

0

33

Troy-Bilt 732-04090A

Torsion Spring - RH

$7.99

$

Usually ships in 3-6 days

0

34

Troy-Bilt 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

35

Troy-Bilt 731-05020A

Transmission Cover
(Superseded to 931-05020A)

$70.99

$

Usually ships in 3-6 days

0

36

Troy-Bilt 782-5002B

Front Baffle
(Superseded to 782P5002B)

$

$

Not available

37

Troy-Bilt 754-0637A

V-Belt
(Superseded to 954-0637A)

$14.99

$

In Stock, Qty 20+

0

38

Troy-Bilt 736-0447

Wave Washer

$4.49

$

In Stock, Qty 20+

0

39

Troy-Bilt 750-04594

Sleeve Spacer 8.985''

$9.49

$

In Stock, only 1 left!

0

40

Troy-Bilt 748-04082

Blade Adapter, 25mm

$37.99

$

In Stock, only 1 left!

0

41

Troy-Bilt 742-0741

21'' Mulching Blade
(Superseded to 942-0741A)

$29.99

$

In Stock, Qty 20+

0

42

Troy-Bilt 736-0524B

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, Qty 14

0

43

Troy-Bilt 687-02334

Pivot Plate Assembly
(Superseded to 987-02334)

$9.99

$

In Stock, Qty 5

0

44

Troy-Bilt 710-1257

Hex Screw, 3/8-24 x 2.50

$7.99

$

In Stock, only 1 left!

0

45

Troy-Bilt 749-0928A

Lower Handle
(Superseded to 749-0928A-0637)

Variations

Troy-Bilt 749-0928A-0637

Lower Handle - POWDER BLACK (0637)

$33.99

$

In Stock, only 2 left!

0

$33.99

$

In Stock, only 2 left!

0

46

Troy-Bilt 732-1043

Belt Tension Spring

$4.49

$

In Stock, Qty 13

0

47

Troy-Bilt 720-0426

Adjustment Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

48

Troy-Bilt 731-05865

Rear Discharge Door
(Superseded to 731-06847)

$28.99

$

Usually ships in 3-6 days

0

49

Troy-Bilt 734-04018A

Front Wheel
(Superseded to 734-04018C)

$19.99

$

In Stock, Qty 20+

0

50

Troy-Bilt 710-04531

Screw, 1/4-20 x .390

$5.49

$

In Stock, Qty 20+

0

51

Troy-Bilt 717-1762

Gear 14T RH FWD

$13.99

$

In Stock, only 3 left!

0

51

Troy-Bilt 717-1761

Gear 14T LH FWD

$13.99

$

In Stock, only 4 left!

0

52

Troy-Bilt 747-04080A

Grass Bag Frame

Variations

Troy-Bilt 747-04080A-0637

Grass Bag Frame, 21" - POWDER BLACK (0637)

$59.99

$

In Stock, Qty 5

0

$59.99

$

In Stock, Qty 5

0

53

Troy-Bilt 710-0703

Carriage Bolt, 1/4-20

$4.49

$

In Stock, Qty 20+

0

54

Troy-Bilt 716-0102

Snap Ring

$5.49

$

In Stock, Qty 20+

0

55

Troy-Bilt 710-1652

TT Screw w/Washer 1/4-20 x .625

$4.49

$

In Stock, Qty 20+

0

56

Troy-Bilt 687-02271A

Handle Bracket Assembly - RH
(Superseded to 987-02271A)

$

$

Not available

56

Troy-Bilt 687-02270A

Handle Bracket Assembly - LH
(Superseded to 987-02270A)

$38.99

$

In Stock, only 1 left!

0

57

Troy-Bilt 715-0221

Dowel Pin
(Superseded to 915-0221)

$4.49

$

In Stock, Qty 20+

0

58

$6.99

$

In Stock, only 3 left!

0

59

Troy-Bilt 687-02333

Pivot Arm Assembly - RH
(Superseded to 987-02333)

$17.99

$

In Stock, only 1 left!

0

59

Troy-Bilt 687-02332

Pivot Arm Assembly - LH
(Superseded to 987-02332)

$18.99

$

Usually ships in 3-6 days

0

60

Troy-Bilt 732-04175

Rear Spring Lever

$11.99

$

In Stock, only 1 left!

0

61

Troy-Bilt 738-04266

Shoulder Screw .500 Dia x .434

$6.49

$

Usually ships in 3-6 days

0

62

Troy-Bilt 734-04014B

Rear Wheel
(Superseded to 753-08175)

$43.99

$

In Stock, Qty 18

0

63

Troy-Bilt 787-01298

Height Adjuster Plate - RH
(Superseded to 787-01298A-0637)

$19.99

$

Usually ships in 3-6 days

0

63

Troy-Bilt 787-01299

Height Adjuster Plate - LH
(Superseded to 787-01299A-0637)

$15.99

$

In Stock, only 1 left!

0

64

Troy-Bilt 732-0706

Front Lever - RH

$15.99

$

In Stock, only 4 left!

0

64

Troy-Bilt 732-0707

Front Lever - LH

$15.99

$

In Stock, only 1 left!

0

65

$15.99

$

Usually ships in 3-6 days

0

66

Troy-Bilt 731-05642

Rear Trailing Shield
(Superseded to 731-05642A)

$28.99

$

In Stock, Qty 9

0

67

Troy-Bilt 736-0277

Washer, Flat 1.031 x 1.620 x .095

$4.49

$

In Stock, Qty 20+

0

68

Troy-Bilt 756-04160

Pulley, Half
(Superseded to 956-04160)

$20.99

$

Usually ships in 3-6 days

0

69

Troy-Bilt 756-04161

Pulley, Half
(Superseded to 956-04161)

$13.99

$

In Stock, only 1 left!

0

70

Troy-Bilt 731-06029

Engine, Baffle
(Superseded to 753-06116)

$16.99

$

In Stock, only 1 left!

0

71

Troy-Bilt 787-01593

Engine, Baffle Bracket

$5.99

$

In Stock, Qty 5

0
