TB 4620 C XP (41AY46XS766) - Troy-Bilt Chainsaw General Assembly Parts Diagram

Chainsaw

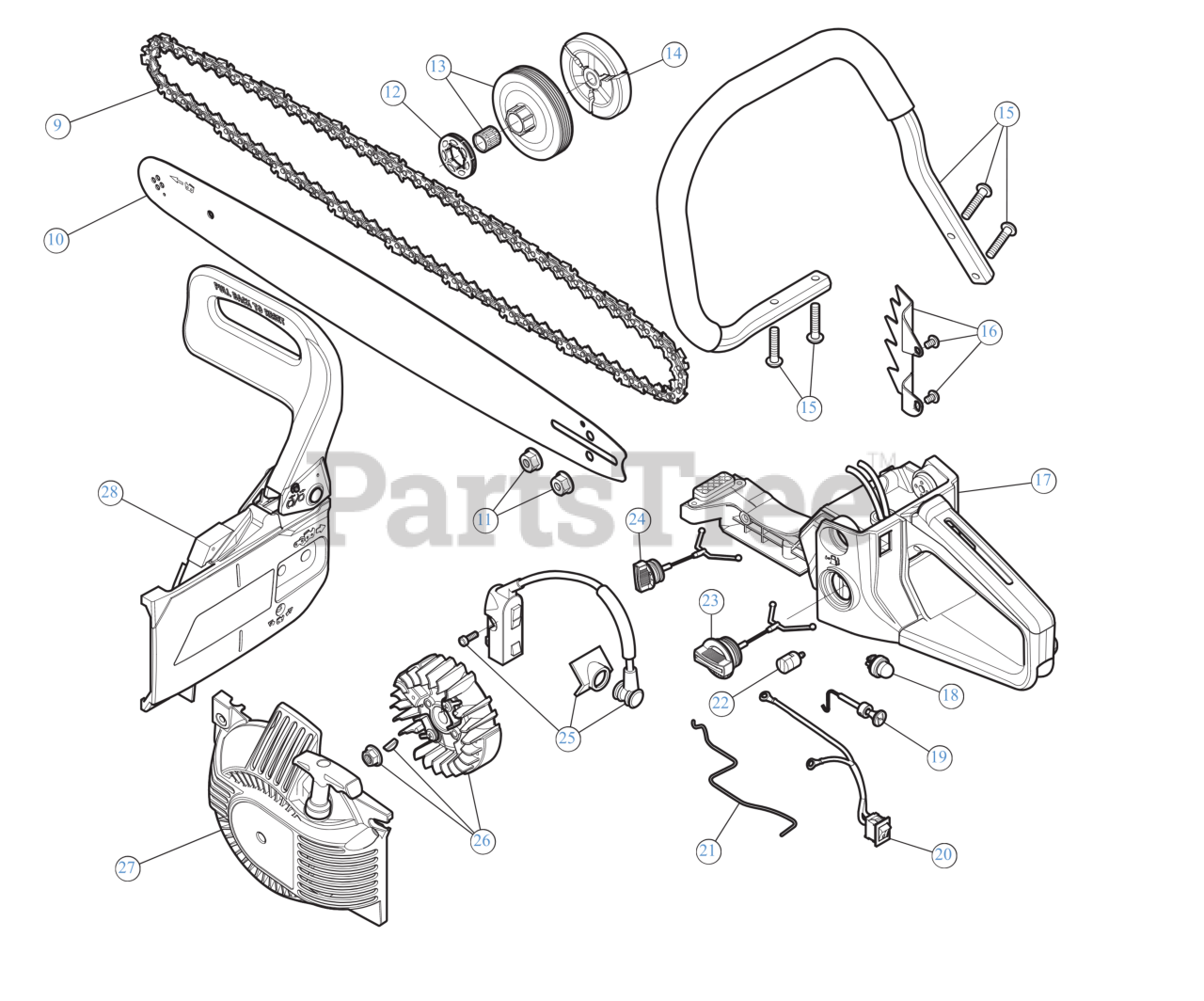

General Assembly Parts Diagram

  • Title

9

Troy-Bilt 913-05044

20" CHAINSAW CHAIN

$47.99

$

In Stock, Qty 12

0

10

Troy-Bilt 795-01026A

Guide Bar 20"

$

$

Currently unavailable

11

Troy-Bilt 953-08105

BAR NUT M8

Note: (x2)

$3.49

$

In Stock, Qty 20+

0

12

Troy-Bilt 953-08219

SPROCKET

$7.49

$

In Stock, Qty 5

0

13

Troy-Bilt 953-08220

CLUTCH DRUM ASSEMBLY

$20.99

$

In Stock, Qty 20+

0

14

Troy-Bilt 953-08145

CLUTCH ASSEMBLY

$15.99

$

In Stock, Qty 20+

0

15

Troy-Bilt 953-08130

HANDLE ASSEMBLY

Note: (with Screws (x4))

$18.99

$

Usually ships in 3-6 days

0

16

Troy-Bilt 953-08128

SPIKE PLATE W/HDW

Note: (with Screws (x2))

$5.49

$

Usually ships in 3-6 days

0

17

Troy-Bilt 953-08142

FUEL HOUSING ASSEMBLY

$40.99

$

In Stock, only 2 left!

0

18

Troy-Bilt 953-08127

PRIMER BULB YD2500-18410

$5.99

$

In Stock, Qty 20+

0

19

Troy-Bilt 753-11111

CHOKE LEVER

$2.99

$

Usually ships in 3-6 days

0

20

Troy-Bilt 953-08223

SWITCH ASSEMBLY

$3.49

$

In Stock, Qty 20+

0

21

Troy-Bilt 953-08132

THROTTLE ROD

$3.49

$

Usually ships in 3-6 days

0

22

Troy-Bilt 953-08123

FUEL FILTER YD4600-18034

$11.99

$

In Stock, only 1 left!

0

23

Troy-Bilt 753-08133

FUEL CAP ASSEMBLY

$5.49

$

In Stock, only 3 left!

0

24

Troy-Bilt 953-08222

OIL CAP ASSEMBLY

$5.49

$

In Stock, only 2 left!

0

25

Troy-Bilt 953-08138

MODULE

Note: (with Screws (x2))

$26.99

$

In Stock, only 1 left!

0

26

Troy-Bilt 953-08131

FLYWHEEL

$20.99

$

In Stock, Qty 7

0

27

Troy-Bilt 753-11108

STARTING HOUSING

$18.99

$

Usually ships in 3-6 days

0

28

Troy-Bilt 753-11110

BRAKE

$27.99

$

Usually ships in 3-6 days

0
