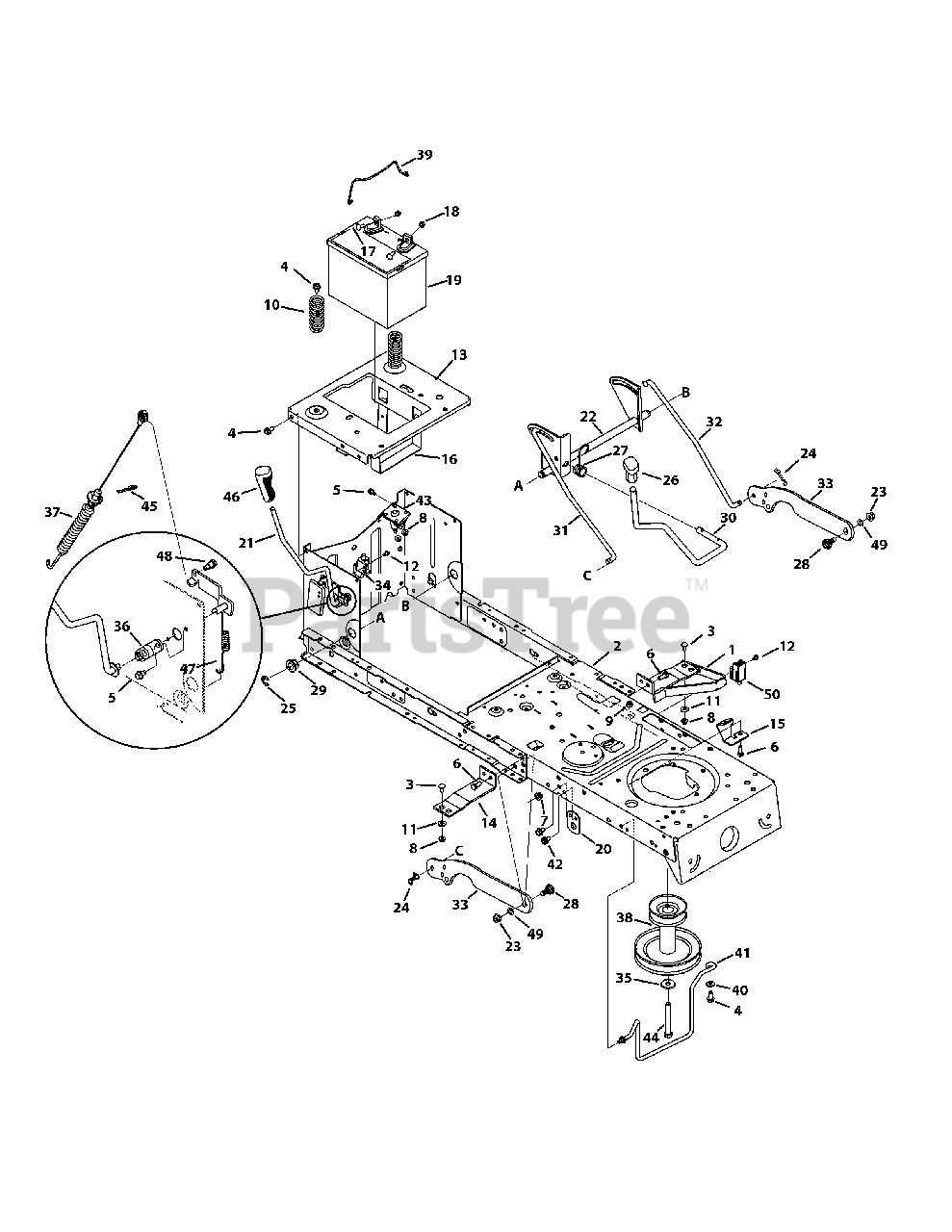

Troy-Bilt TB 46 (13AL78KT066) - Troy-Bilt 46" Lawn Tractor (2014) Frame & PTO Lift Parts Lookup with Diagrams

1

Troy-Bilt 683-04195-0637

Support Bracket

$42.99

$

Usually ships in 3-6 days

2

Troy-Bilt 683-05139-0637

Frame Assembly

(Superseded to 683-05139A-0637) 

$208.99

$

Usually ships in 3-6 days

3

Troy-Bilt 710-0703

Screw Carriage, 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

4

Troy-Bilt 710-04484

Screw 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

5

Troy-Bilt 710-0599

Screw, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

6

Troy-Bilt 710-3008

Hex Screw, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

7

Troy-Bilt 712-04063

Flangelock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

8

Troy-Bilt 712-04064

Flangelock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

9

Troy-Bilt 912-0429

Hexlock Nut, 5/16-18

(Superseded to 712-0429) 

$4.49

$

In Stock, Qty 20+

10

Troy-Bilt 732-0735A

Compression Spacer, 1.314 x 2.55

$29.99

$

In Stock, Qty 5

11

Troy-Bilt 736-0173

Flat Washer, .28 x .74 x .063

$4.49

$

In Stock, Qty 20+

12

Troy-Bilt 738-04237A

Shoulder Spacer, 10-32 x .500

$6.49

$

In Stock, Qty 7

13

Troy-Bilt 783-04548D-0637

Seat Frame Bracket

$58.99

$

Usually ships in 3-6 days

14

Troy-Bilt 783-04637-0637

Running Board Bracket

$16.99

$

Usually ships in 3-6 days

15

Troy-Bilt 783-04753-0637

Support Frame Bracket

$79.99

$

Usually ships in 3-6 days

16

Troy-Bilt 783-04869A-0637

Battery Bracket

$9.49

$

In Stock, Qty 20+

17

Troy-Bilt 710-04666

Hex Head Flange, 1/4-20 x .75

$6.99

$

In Stock, only 3 left!

18

Troy-Bilt 712-0271

Sems Nut, 1/4-20

$4.49

$

In Stock, Qty 20+

19

Troy-Bilt 925-1707D

230 CCA Battery Dry

$

Not available 

20

Troy-Bilt 783-04536B-0637

Support Bracket

$6.49

$

Usually ships in 3-6 days

21

Troy-Bilt 753-08235

PTO Handle & Deck Engage Cable Service Kit

Note: (replaces handles 647-05041 or 647-04096A used in this application) (Service Kit contains 647-05041 PTO handle, 738-04425 shoulder screw & 946-05140 deck engage cable)

$44.99

$

In Stock, only 4 left!

22

Troy-Bilt 683-04334-0637

Lift Assembly

$54.99

$

In Stock, only 2 left!

23

Troy-Bilt 712-04065

Flangelock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

24

Troy-Bilt 714-04040

Bow-tie Cotter Pin

$1.49

$

In Stock, Qty 20+

25

Troy-Bilt 716-0106A

E Ring

$5.49

$

In Stock, only 2 left!

26

Troy-Bilt 720-0298

Handle Grip, 5/8

$43.99

$

Usually ships in 3-6 days

27

Troy-Bilt 732-04438

Torsion Spring

$10.99

$

Usually ships in 3-6 days

28

Troy-Bilt 938-0380

Shoulder Bolt, 3/8-16 x .50 x .270

(Superseded to 738-0380) 

$7.99

$

In Stock, only 1 left!

29

Troy-Bilt 941-0225

Hex Flange Bearing

$7.49

$

In Stock, Qty 20+

30

Troy-Bilt 747-05296

Deck Handle, Lift, 46" Deck

Note: 5/19/2014 & Before

$26.99

$

Usually ships in 3-6 days

30

Troy-Bilt 747-04653A

Deck Handle, Lift, 46" Deck

Note: 5/19/2014 & After

$45.99

$

In Stock, only 4 left!

31

Troy-Bilt 747-06237

Lift Rod, RH

(Superseded to 747-06237A) 

$10.99

$

Usually ships in 3-6 days

32

Troy-Bilt 747-06253

Lift Rod, LH

$10.99

$

In Stock, only 1 left!

33

Troy-Bilt 783-0678C-0637

Lift Arm

$29.99

$

In Stock, only 1 left!

34

Troy-Bilt 725-04363

Switch Interlock

$15.99

$

In Stock, Qty 13

35

Troy-Bilt 736-0322

Flat Washer, .450 x 1.250 x .164

$9.49

$

In Stock, Qty 7

36

Troy-Bilt 741-04119A

PTO Bearing

$4.99

$

In Stock, Qty 10

37

Troy-Bilt 753-08235

Deck Engage Cable & PTO Handle Service Kit

Note: (replaces cables 946-05124 or 946-05140 or 946-04173E used in this application) (Service Kit contains 647-05041 PTO handle, 738-04425 shoulder screw & 946-05140 deck engage cable)

$44.99

$

In Stock, only 4 left!
