TB 4516 CC (41AZ456P766) - Troy-Bilt Chainsaw General Assembly Parts Diagram

Chainsaw

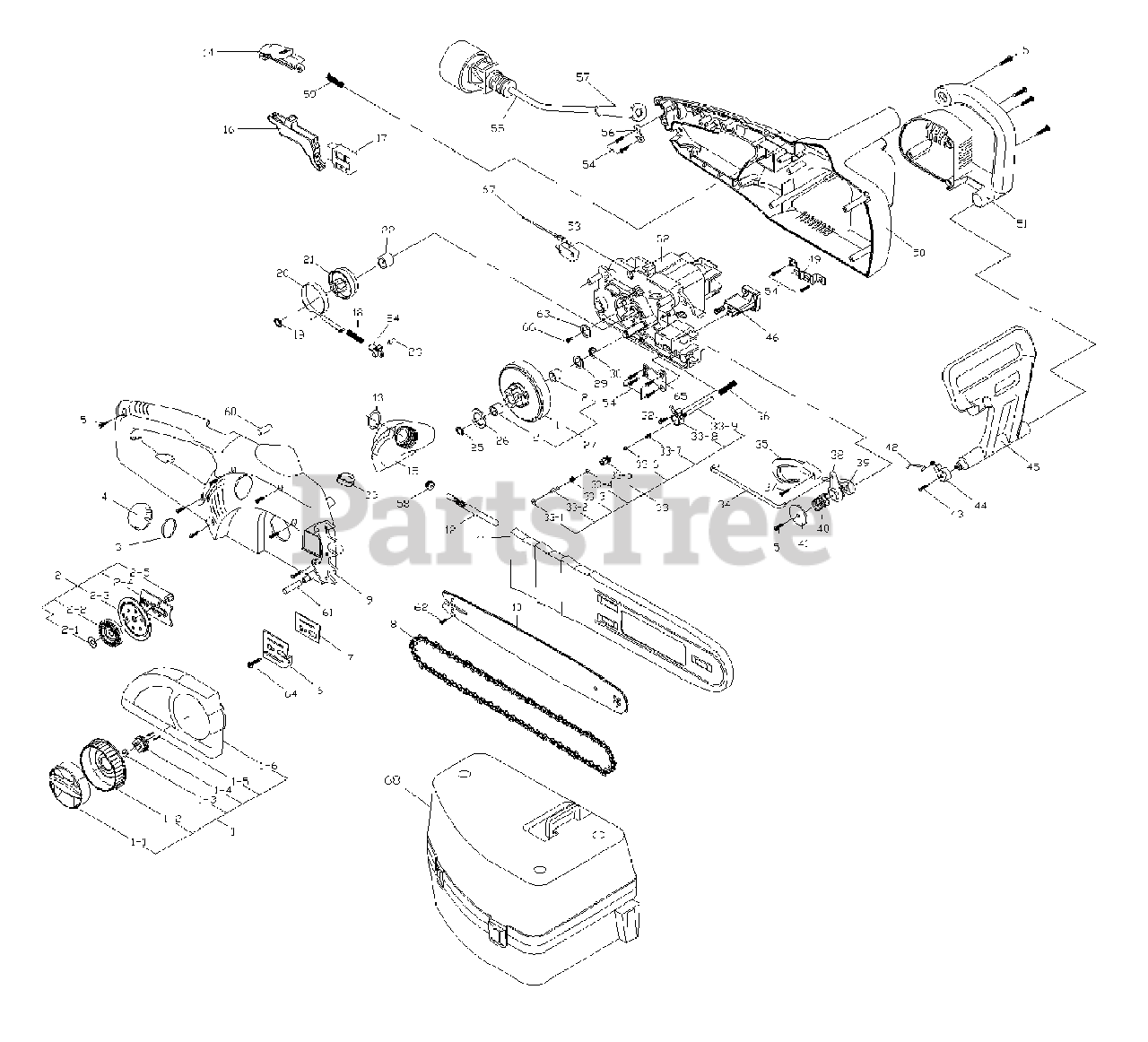

General Assembly Parts Diagram

  • Title
1

$

$

Not available

2

Troy-Bilt MC-6228-211504

CHAIN COVER ASS'Y

$33.99

$

In Stock, only 1 left!

0

$

$

Not available

4

MTD MC-6017-210103

OIL COVER

$

$

Not available

$

$

Not available

6

MTD MC-6043-211302

ADJUSTMENT PLATE

$

$

Not available

$

$

Not available

$

$

Not available

9

$

$

Not available

$

$

Not available

11

MTD MC-6101-210506

COVER

Note: (TB4516)

$

$

Not available

12

Troy-Bilt MC-6228-211506

OIL PIPE ASS'Y

$

$

Not available

$

$

Not available

14

MTD MC-6056-211502

SWITCH BUTTON

$

$

Not available

$

$

Not available

16

$

$

Not available

17

$

$

Not available

18

$

$

Not available

19

$

$

Not available

20

Troy-Bilt MC-6079-211501

SPRING, BRAKE

$

$

Not available

$

$

Not available

22

Troy-Bilt MC-6059-210201

ADJUSTMENT COVER

$

$

Not available

$

$

Not available

24

$

$

Not available

25

$

$

Not available

$

$

Not available

27

MTD MC-6228-210104

GEAR BEARING ASS'Y

$

$

Not available

$7.49

$

Usually ships in 3-6 days

0

$

$

Not available

30

MTD MC-6CC-10

C RING
(Superseded to MC-22237-00)

$

$

Not available

$

$

Not available

33

MTD MC-6228-210105

OIL PUMP ASS'Y

$

$

Not available

34

$

$

Not available

35

$

$

Not available

36

$

$

Not available

$

$

Not available

$

$

Not available

$

$

Not available

40

$

$

Not available

41

$

$

Not available

42

MTD MC-6154-211301

CONNECTING BAR

$

$

Not available

$

$

Not available

44

MTD MC-6154-211504

CONNECTOR

$

$

Not available

45

Troy-Bilt MC-6017-211503

FRONT-HAND GUARD

$

$

Not available

46

$

$

Not available

$

$

Not available

49

$

$

Not available

50

MTD MC-6038-211506

HOUSING (L)

$

$

Not available

51

MTD MC-6086-211501

REAL COVER

$

$

Not available

52

Troy-Bilt MC-6228-211301

MOTOR GEAR BOX ASS'Y
(Superseded to MC-6228-211301P)

Note: (TB3516)

$

$

Not available

52

Troy-Bilt MC-6228-211401

MOTOR GEAR BOX ASS'Y

Note: (TB4516CC)

$

$

Not available

52

Troy-Bilt MC-6SDABB04-14

SCREW

Note: (NOT SHOWN) (3)

$

$

Not available

53

$

$

Not available

$

$

Not available

55

MTD MC-6011-211502

POWERCORD

$

$

Not available

56

MTD MC-6043-840001

STRAIN RELIEF

$

$

Not available

57

MTD MC-6059-855001

CORD GUARD

$

$

Not available

58

$

$

Not available

59

$

$

Not available

$

$

Not available

$

$

Not available

$

$

Not available

63

$

$

Not available

$

$

Not available

$

$

Not available

$

$

Not available

$

$

Currently unavailable

68

MTD MC-6120-211401

CARRY CASE

Note: (TB4516CC)

$

$

Not available
