TB 430 (41AS99BS766) - Troy-Bilt Handheld Blower General Assembly Parts Diagram

Handheld Blower

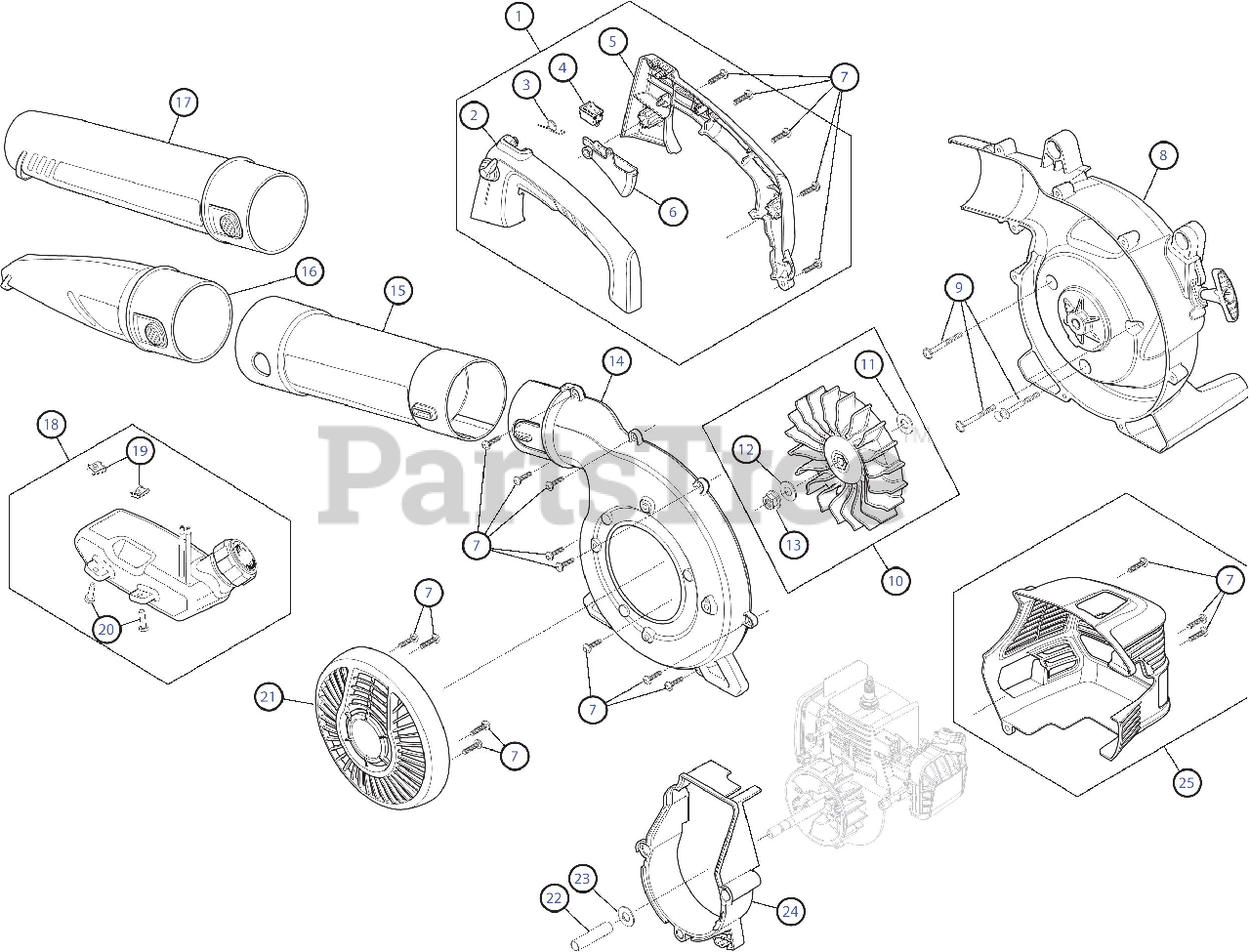

General Assembly Parts Diagram

  • Title

1

Troy-Bilt 753-08532

Handle Assembly

$12.99

$

In Stock, only 1 left!

0

2

Troy-Bilt 841-012313S

Handle (LH)

$5.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 753-05007

Trigger Spring

$5.49

$

In Stock, only 2 left!

0

4

Troy-Bilt 725-05280

On/Off Switch

$6.49

$

Usually ships in 3-6 days

0

5

Troy-Bilt 731-10776-10

Handle (RH)

$2.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 731-09987-1

Throttle Trigger

$3.49

$

Usually ships in 3-6 days

0

7

Troy-Bilt 710-04194

Screw

$4.49

$

In Stock, Qty 20+

0

8

Troy-Bilt 753-08534

Impeller Housing Assembly (RH) (Incl. 9)

$32.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 710-06341

Screw

$3.49

$

In Stock, Qty 20+

0

10

Troy-Bilt 753-08491

Impeller Assembly

$7.99

$

In Stock, Qty 20+

0

11

Troy-Bilt 736-05080

Washer

$3.49

$

Usually ships in 3-6 days

0

12

Troy-Bilt 736-04110A

Lock Washer

$5.49

$

In Stock, only 1 left!

0

13

Troy-Bilt 712-04137

Nut

$6.99

$

Usually ships in 3-6 days

0

14

Troy-Bilt 753-08533

Impeller Housing Assembly (LH) (Incl. 7)

$11.99

$

Usually ships in 3-6 days

0

15

Troy-Bilt 731-10598

Upper Blower Tube

$7.49

$

Usually ships in 3-6 days

0

16

Troy-Bilt 731-11154

Blower Nozzle

$5.49

$

Usually ships in 3-6 days

0

17

Troy-Bilt 731-10782

Lower Blower Tube

$7.49

$

In Stock, Qty 7

0

18

Troy-Bilt 753-08508

Fuel Tank Assembly

$21.99

$

In Stock, Qty 16

0

19

Troy-Bilt 791-182366

U-Shaped Nut

$5.99

$

In Stock, only 1 left!

0

20

Troy-Bilt 791-181930

Screw

$6.99

$

In Stock, only 1 left!

0

21

Troy-Bilt 753-08511

Intake Cover (Incl. 7)

$4.49

$

Usually ships in 3-6 days

0

22

Troy-Bilt 750-06367

Shaft Spacer

$3.49

$

Usually ships in 3-6 days

0

23

Troy-Bilt 736-05080

Washer

$3.49

$

Usually ships in 3-6 days

0

24

Troy-Bilt 753-08496

Engine Adapter (Incl. 9)

$7.49

$

Usually ships in 3-6 days

0

25

Troy-Bilt 753-08510

Engine Cover Housing (Incl. 7)

$22.99

$

Usually ships in 3-6 days

0
