TB 42 BC (41ADZ42C766) - Troy-Bilt Brush Cutter Engine Assembly Parts Diagram

Brush Cutter

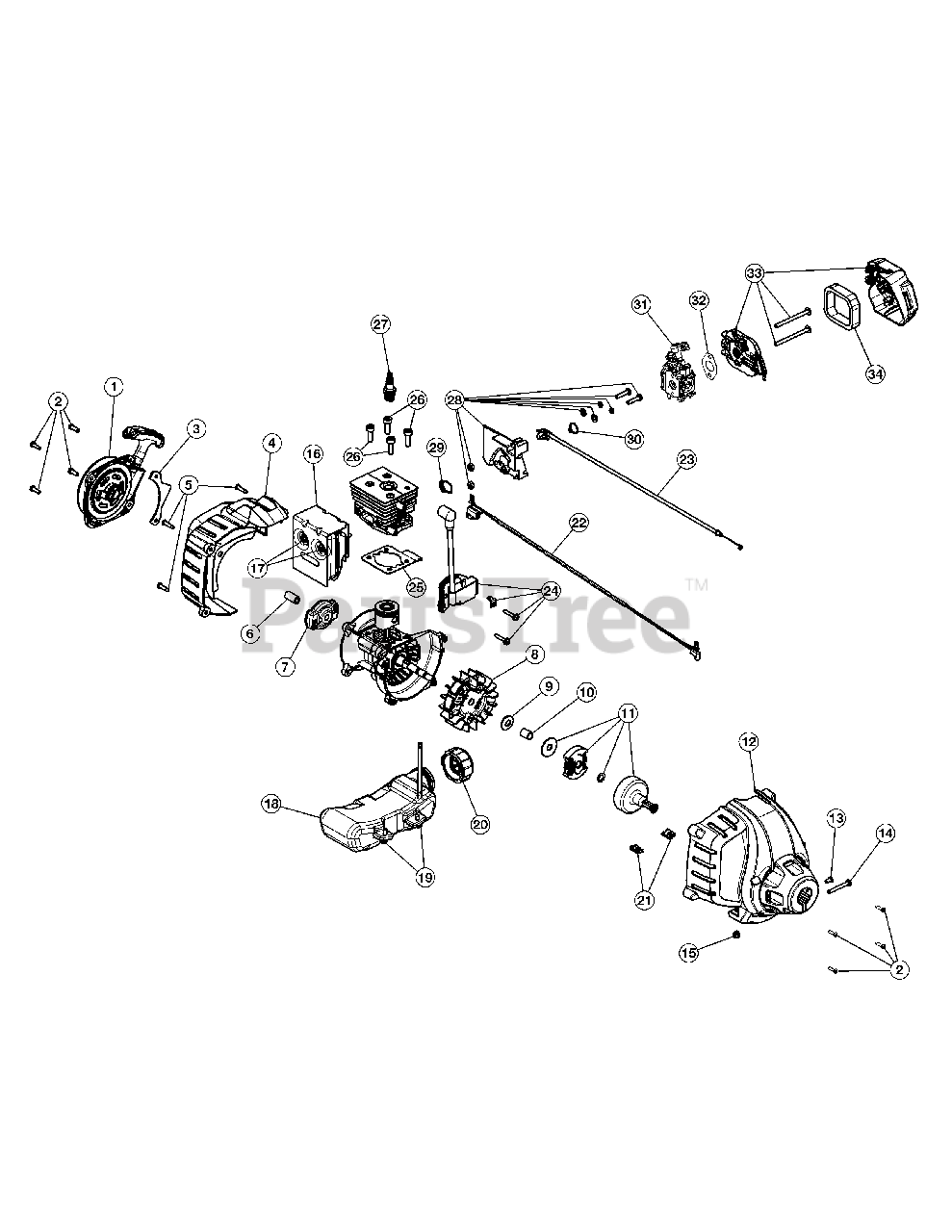

Engine Assembly Parts Diagram

  • Title

1

Troy-Bilt 753-06829

Starter Assembly

Note: (includes 2 and 3)

$20.99

$

In Stock, Qty 20+

0

2

Troy-Bilt 791-181862

Starter Screw
(Superseded to 1964)

$4.49

$

In Stock, Qty 15

0

3

Troy-Bilt 753-06244

Starter Assembly Guard

Note: (includes 2)

$3.99

$

In Stock, only 1 left!

0

4

Troy-Bilt 753-06245

Rear Engine Cover

Note: (includes 5)

$

$

Not available

5

Troy-Bilt 791-181345

Cover Screw

$4.49

$

In Stock, only 4 left!

0

6

Troy-Bilt 753-06104

Adapter

$4.49

$

In Stock, Qty 7

0

7

Troy-Bilt 753-06091

Pawl Assembly

$9.49

$

In Stock, Qty 5

0

8

Troy-Bilt 753-06246

Flywheel Assembly

$21.99

$

In Stock, only 1 left!

0

9

Troy-Bilt 753-06247

Washer

$3.49

$

In Stock, only 1 left!

0

10

Troy-Bilt 753-06248

Spacer

$3.49

$

Usually ships in 3-6 days

0

11

Troy-Bilt 753-05860

Clutch Assembly

$25.99

$

In Stock, Qty 10

0

12

Troy-Bilt 753-06249

Clutch Cover Assembly

Note: (includes 2, 13 - 15 and 21)

$

$

Not available

13

Troy-Bilt 791-182519

Anti-rotation Screw

$4.99

$

In Stock, Qty 5

0

14

Troy-Bilt 753-04003

Clamp Screw
(Superseded to 9689A)

$11.99

$

Usually ships in 3-6 days

0

15

Troy-Bilt 791-180217

Clamp Nut
(Superseded to 712-0161)

$4.49

$

In Stock, only 2 left!

0

16

Troy-Bilt 753-06418

Muffler Assembly
(Superseded to 753-08745)

Note: (includes 17)

$26.99

$

Usually ships in 3-6 days

0

17

Troy-Bilt 753-06294

Muffler Screw

$2.99

$

Usually ships in 3-6 days

0

18

Troy-Bilt 753-06856

Fuel Tank Assembly
(Superseded to 753-06250)

Note: (includes 19 and 20)

$21.99

$

In Stock, Qty 12

0

19

Troy-Bilt 791-181930

Tank Screw

$6.99

$

In Stock, only 1 left!

0

20

Troy-Bilt 753-06857

Fuel Cap

$7.99

$

In Stock, Qty 5

0

21

Troy-Bilt 791-182366

U-shaped Nut

$5.99

$

In Stock, only 1 left!

0

22

Troy-Bilt 753-05877

Lead Wires

$9.99

$

Usually ships in 3-6 days

0

23

Troy-Bilt 753-06251

Throttle Cable

$7.99

$

In Stock, only 1 left!

0

24

Troy-Bilt 753-06912

Module Assembly

$30.99

$

In Stock, only 1 left!

0

25

Troy-Bilt 753-06827

Cylinder Gasket

$3.49

$

In Stock, only 1 left!

0

26

Troy-Bilt 753-05703

Cylinder Bolt
(Superseded to 710-04715)

$6.99

$

Usually ships in 3-6 days

0

27

Troy-Bilt 753-06193

Spark Plug
(Superseded to 753-06847)

$7.49

$

In Stock, Qty 20+

0

28

Troy-Bilt 753-06189

Insulator Assembly

Note: (includes 29 and 30)

$7.99

$

In Stock, only 1 left!

0

29

Troy-Bilt 753-06184

Insulator O-Ring

$3.49

$

In Stock, only 1 left!

0

30

Troy-Bilt 753-06185

Carburetor O-Ring

$3.49

$

In Stock, Qty 20+

0

31

Troy-Bilt 753-06190

Carburetor

$35.99

$

In Stock, Qty 20+

0

32

Troy-Bilt 753-06253

Carburetor Gasket

$3.49

$

In Stock, Qty 20+

0

33

Troy-Bilt 753-06913

Air Cleaner Assembly

Note: (includes 34)

$11.99

$

In Stock, Qty 5

0

34

Troy-Bilt 753-06914

Air Cleaner Filter
(Superseded to 753-06954)

$2.99

$

In Stock, Qty 20+

0

Troy-Bilt 753-04619

Muffler Gasket

Note: (not shown)

$9.49

$

In Stock, only 1 left!

0

Troy-Bilt 753-06762

Short Block Assembly

Note: (not shown) (includes Crankcase, Cylinder, Piston, 8 - 11, 25 - 28)

$96.99

$

Usually ships in 3-6 days

0

Troy-Bilt 625-04120

Electric Start

Note: (not shown - optional)

$77.99

$

Usually ships in 3-6 days

0

Troy-Bilt 49MESCBP953

Start Bit
(Superseded to 49MASCBP953)

Note: (not shown - optional)

$20.99

$

In Stock, only 3 left!

0
