TB 42 (13AM77KS066) - Troy-Bilt 42" Lawn Tractor (2014) Seat & Fender Parts Diagram

42" Lawn Tractor

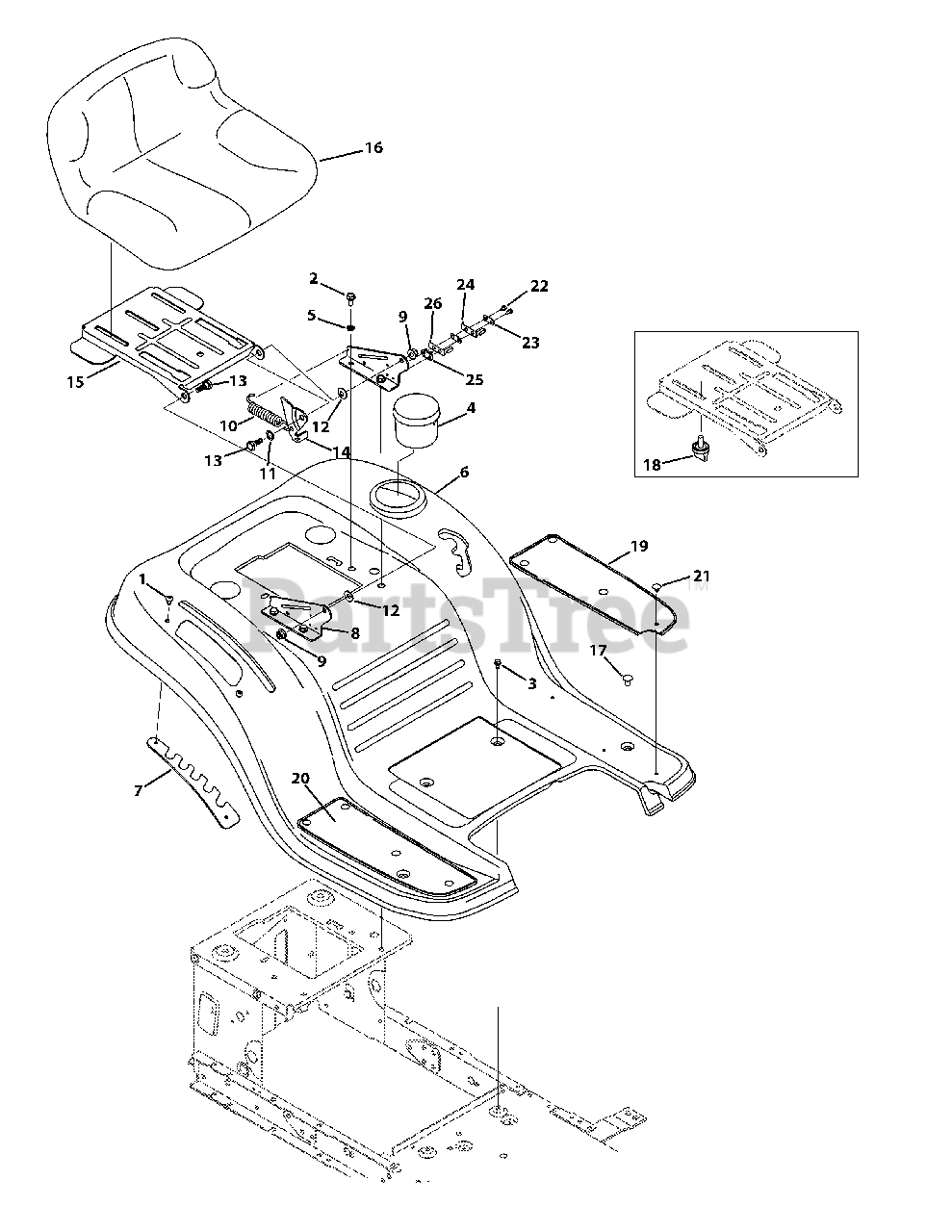

Seat & Fender Parts Diagram

  • Title
1

Troy-Bilt 710-05070

Screw, 1/4-20 x .500
(Superseded to 710-05070A)

$6.99

$

In Stock, Qty 7

0

2

Troy-Bilt 710-04484

Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

3

Troy-Bilt 710-0599

Screw Pan Torx Head, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

4

$15.99

$

In Stock, only 1 left!

0

5

Troy-Bilt 736-0607

Loack Washer, 5/16

$3.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 783-04587D-0638

Fender
(Superseded to 783-04587E-0638)

$421.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt 783-04843-0638

Lift Adjuster Bracket

$37.99

$

Usually ships in 3-6 days

0

8

Troy-Bilt 783-1489D-0638

Seat Mount Bracket
(Superseded to 783-1489D-0637)

$23.99

$

In Stock, only 1 left!

0

9

Troy-Bilt 712-04063

Flangelock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 732-1184

Extension Spring

$11.99

$

In Stock, only 1 left!

0

11

Troy-Bilt 936-0108

Flat Washer, .510x .750 x .033

$6.99

$

In Stock, only 4 left!

0

12

Troy-Bilt 736-0242

Bell Washer, .340 x .872 x .060

$4.49

$

In Stock, Qty 20+

0

13

Troy-Bilt 938-0296

Shoulder Screw, 5/16-18 x .437 x .268
(Superseded to 738-0296)

$4.49

$

In Stock, Qty 20+

0

14

Troy-Bilt 783-0209D

Lift Seat Bracket

$16.99

$

In Stock, only 1 left!

0

15

Troy-Bilt 783-04081D-0638

Pivot Seat Manual Adjust Bracket
(Superseded to 783-04081D-0637)

$41.99

$

In Stock, only 1 left!

0

16

Troy-Bilt 757-04099

Low Back Seat, Black
(Superseded to 757-05230)

$194.99

$

In Stock, only 1 left!

0

17

Troy-Bilt 710-0134

Screw Carriage, 1/4-20 x .62

$4.49

$

In Stock, Qty 20+

0

18

Troy-Bilt 720-04061

Knob, 3/8-16 x .875

$5.49

$

In Stock, Qty 20+

0

19

Troy-Bilt 723-04026

Foot Pad, Abrasive, LH

$33.99

$

Usually ships in 3-6 days

0

20

Troy-Bilt 723-04025

Foot Pad, Abrasive, RH

$33.99

$

In Stock, only 1 left!

0

21

Troy-Bilt 726-3046

Ratchet Clip, .250 x .500

$3.99

$

In Stock, Qty 6

0

22

Troy-Bilt 710-0227

Screw, 8-18 x .500

$4.49

$

In Stock, Qty 20+

0

23

Troy-Bilt 726-0279

Insulator Plate

$3.99

$

In Stock, Qty 8

0

24

Troy-Bilt 925-1303

Outer Seat SPring

$6.49

$

In Stock, Qty 7

0

25

Troy-Bilt 726-0278

Insulator Boss Plate

$6.99

$

In Stock, Qty 10

0

26

Troy-Bilt 725-1439

Inner Seat Spring

$8.49

$

In Stock, Qty 10
