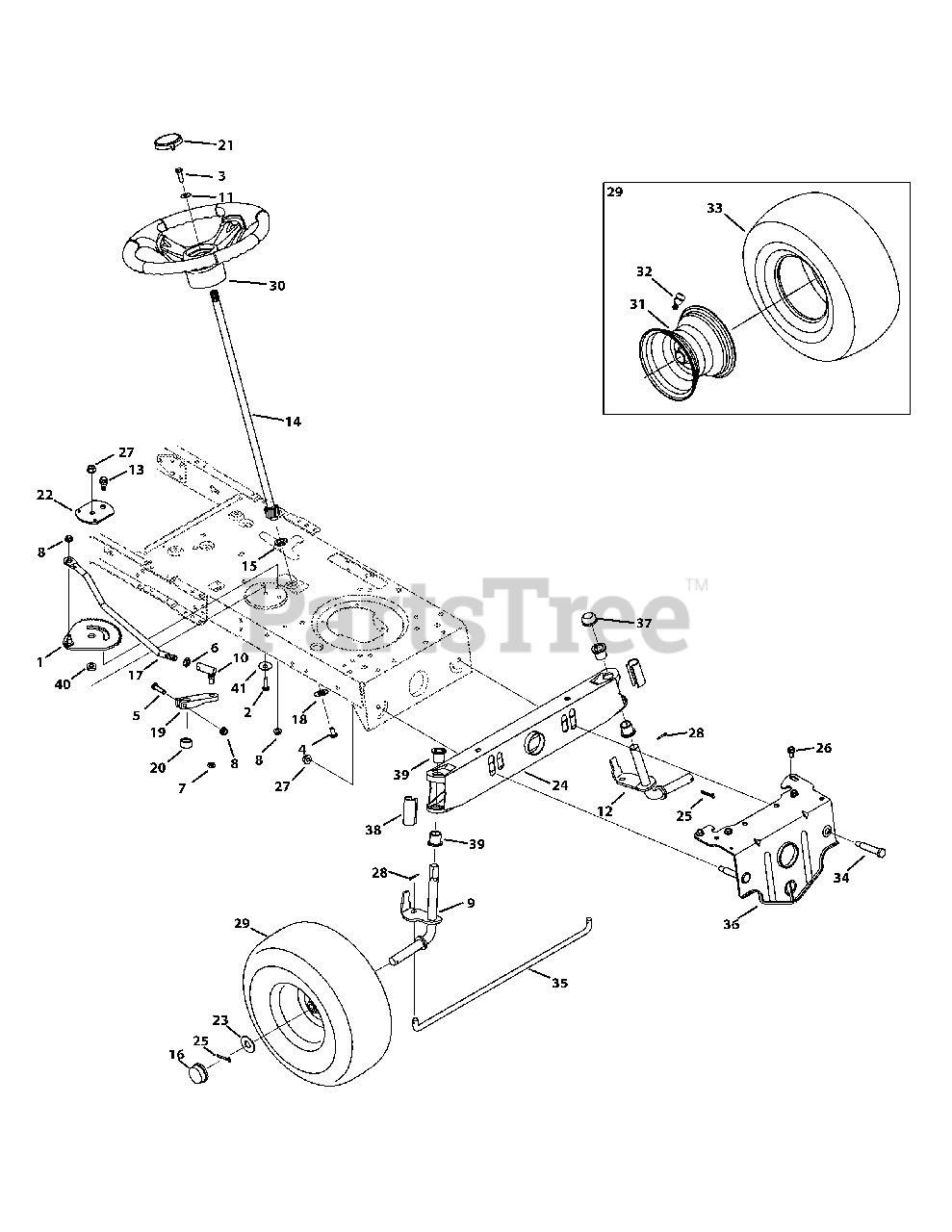

TB 42 (13AM77KS066) - Troy-Bilt 42" Lawn Tractor (2014) Front End Steering Parts Diagram

42" Lawn Tractor

Front End Steering Parts Diagram

  • Title

1

Troy-Bilt 617-04094

Front Steering Gear Assembly

$29.99

$

In Stock, Qty 20+

0

2

Troy-Bilt 710-0514

Hex Screw, 3/8-16 x 1.00

$4.49

$

In Stock, Qty 20+

0

3

Troy-Bilt 710-0643

Hex Screw, 5/16-18 x 1.00, Lock

$6.99

$

In Stock, Qty 5

0

4

Troy-Bilt 710-1309

Machine Screw, 5/16-18 x .750

$4.49

$

In Stock, Qty 20+

0

5

Troy-Bilt 710-3180

Hex Screw, 5/16-18 x 1.75

$5.49

$

In Stock, Qty 15

0

6

Troy-Bilt 912-0240

Jam Nut, 7/16-20

$4.49

$

In Stock, Qty 20+

0

7

Troy-Bilt 912-0214

Jamlock Nut, 3/8-24
(Superseded to 712-0214)

$6.49

$

In Stock, only 3 left!

0

8

Troy-Bilt 712-04063

Flangelock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

9

Troy-Bilt 938-04013

Front RH Axle

$56.99

$

In Stock, only 1 left!

0

10

Troy-Bilt 923-0448A

Ball Joint, 7/16-20

$24.99

$

In Stock, Qty 20+

0

11

Troy-Bilt 736-0242

Bell Washer, .340 x .872 x .060

$4.49

$

In Stock, Qty 20+

0

12

Troy-Bilt 938-04014A-0637

Front LH Axle

$56.99

$

In Stock, only 1 left!

0

13

Troy-Bilt 738-04141

Shoulder Bolt, 5/16-18 x .435 x .350

$5.49

$

In Stock, Qty 20+

0

14

Troy-Bilt 938-05078

Steering Shaft, 5/8
(Superseded to 738P07154)

$56.99

$

In Stock, Qty 20+

0

15

Troy-Bilt 941-04124

Flange Bearing, 5/8
(Superseded to 741-04124)

$5.49

$

In Stock, Qty 20+

0

16

Troy-Bilt 931-0484A

Hub Cap

$6.49

$

In Stock, Qty 20+

0

17

Troy-Bilt 747-05385

Steering Link
(Superseded to 747-05385A)

$20.99

$

Usually ships in 3-6 days

0

18

Troy-Bilt 948-0389

Cap, 1.25 x .16

$5.49

$

In Stock, Qty 20+

0

19

Troy-Bilt 748-04278-0637

Steering Block
(Superseded to 748-04278)

$21.99

$

In Stock, only 3 left!

0

20

Troy-Bilt 748-04068

Spacer, .71 x .125 x .56

$4.49

$

In Stock, Qty 20+

0

21

Troy-Bilt 731-04681

Cap, Troy-Bilt

$14.99

$

In Stock, only 3 left!

0

22

Troy-Bilt 783-08577

Stabilizer Plate
(Superseded to 783P08577A)

$7.49

$

In Stock, only 3 left!

0

23

Troy-Bilt 736-04228A

Flat Washer, .781 x 1.590
(Superseded to 736-04228B)

$5.49

$

In Stock, Qty 20+

0

24

Troy-Bilt 683-0128B-0638

Pivot Axle
(Superseded to 683-0128B-0637)

$97.99

$

In Stock, only 3 left!

0

25

Troy-Bilt 714-04039A

Cotter Pin, 5/32 x 1.25
(Superseded to 714-0162)

$4.99

$

In Stock, Qty 20+

0

26

Troy-Bilt 710-04484

Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

27

Troy-Bilt 912-0431

Flangelock Nut, 3/8-16

$4.99

$

In Stock, Qty 20+

0

28

Troy-Bilt 914-0474

Cotter Pin, .125 x .75
(Superseded to 714-0474)

$

$

Not available

29

Troy-Bilt 634-05053-0911

Wheel Assembly

$91.99

$

In Stock, only 1 left!

0

30

Troy-Bilt 631-04028

Steering Wheel

$69.99

$

In Stock, only 1 left!

0

31

Troy-Bilt 634-05066-0662

Rim, 6.0 x 4.5

$105.99

$

Usually ships in 3-6 days

0

31

Troy-Bilt 741-0990B

Bearing, Flange, .76 ID w/ Lube Fitting

Note: (not shown)

$10.99

$

In Stock, Qty 20+

0

31

Troy-Bilt 741-0516B

Bearing, Flange, .76 x 1.0 x 1.2

Note: (not shown)

$6.49

$

In Stock, Qty 20+

0

32

Troy-Bilt 934-0255

Valve, tubeless Air

$4.49

$

In Stock, Qty 20+

0

33

Troy-Bilt 734-04240A-0901

Tire, 15 X 6 X 6 Rd Shldr

$31.99

$

Usually ships in 3-6 days

0

34

Troy-Bilt 738-04128

Shoulder Bolt, 3/8-16 x .500 x 2.38

$7.99

$

Usually ships in 3-6 days

0

35

Troy-Bilt 747-04299A

Fixed Rod

$30.99

$

In Stock, only 1 left!

0

36

Troy-Bilt 783-05326B-0637

Pivot Bar Bracket
(Superseded to 783-05326D-0637)

$33.99

$

In Stock, only 1 left!

0

37

Troy-Bilt 726-0341

Push Cap, 3/4

$4.99

$

In Stock, Qty 20+

0

38

Troy-Bilt 731-04057A

Standard Axle Cap

$5.49

$

In Stock, Qty 8

0

39

Troy-Bilt 741-0660A

Flange Bearing, .760 x .941 x 1.0

$3.49

$

In Stock, Qty 10

0

40

Troy-Bilt 750-06192

Spacer, .38 ID x .854 OD x .20
(Superseded to 750-06192A)

$4.49

$

In Stock, Qty 20+

0

41

Troy-Bilt 736-0331

Bell Washer, .390 x 1.13 x .062

$3.99

$

In Stock, Qty 16
