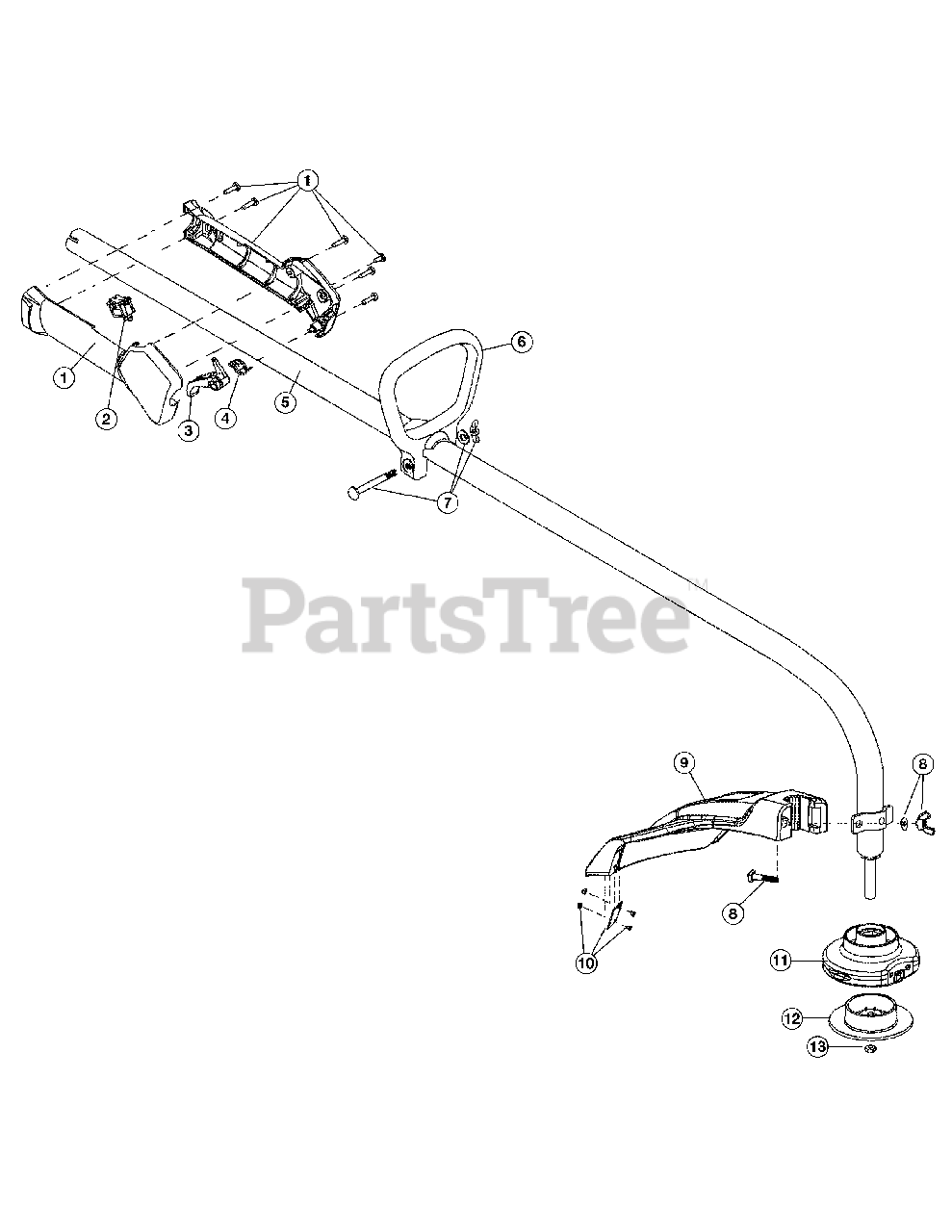

  • Title

1

Troy-Bilt 753-04234

Throttle Housing Assembly

Note: (includes 2-4)

$21.99

$

In Stock, Qty 7

0

2

Troy-Bilt 791-182405

Switch

$10.99

$

In Stock, Qty 12

0

3

Troy-Bilt 753-04119

Throttle Trigger

$7.49

$

In Stock, Qty 18

0

4

Troy-Bilt 791-182690

Throttle Trigger Spring

$7.99

$

In Stock, only 2 left!

0

5

Troy-Bilt 753-05748

Drive Shaft Housing Assembly

$48.99

$

In Stock, only 4 left!

0

6

Troy-Bilt 753-05461

D-Handle

Note: (includes 7)

$22.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt 791-181587

Handle Hardware

$19.99

$

In Stock, only 1 left!

0

8

Troy-Bilt 753-04282

Guard Mounting Hardware

$25.99

$

In Stock, only 1 left!

0

9

Troy-Bilt 753-04283

Guard

Note: (includes 10)

$50.99

$

In Stock, only 1 left!

0

10

Troy-Bilt 791-682061

Blade Assembly

$14.99

$

In Stock, only 1 left!

0

11

Troy-Bilt 753-05749

Fixed Line Head Assembly

Note: (includes 12 & 13)

$

$

Not available

12

Troy-Bilt 753-05428

Glide Cap
(Superseded to 731-05714)

$17.99

$

In Stock, Qty 8

0

13

Troy-Bilt 753-05429

Locknut
(Superseded to 712-04018A)

$4.49

$

In Stock, Qty 5

0

Troy-Bilt 753-05493

Replacement Line
(Superseded to 796-00029)

Note: (not shown)

$19.99

$

Usually ships in 3-6 days

0
