TB 400 (41BR25BL766) - Troy-Bilt Handheld Blower General Assembly Parts Diagram

Handheld Blower

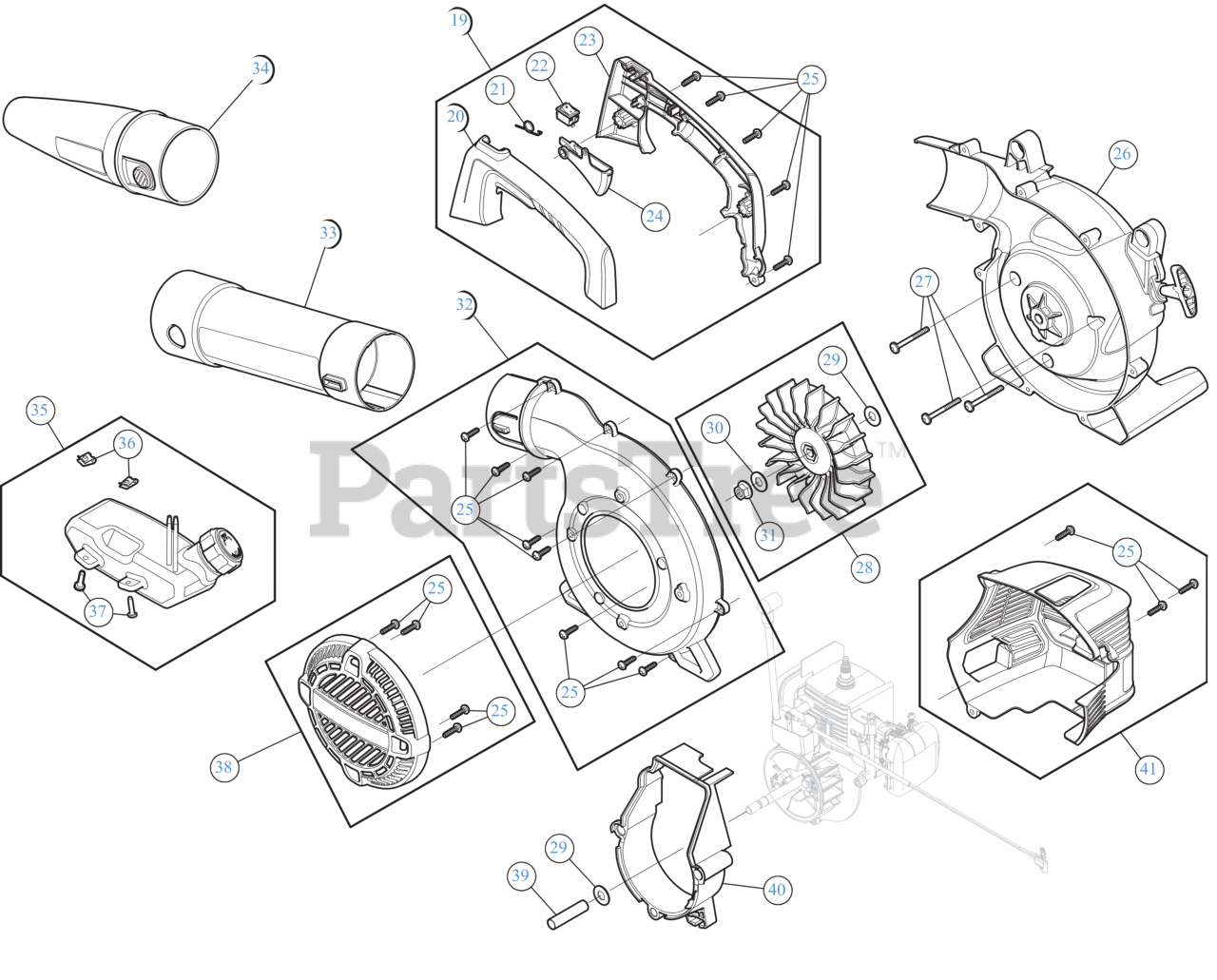

General Assembly Parts Diagram

  • Title

19

Troy-Bilt 753-08523

HANDLE ASSEMBLY

Note: (Incl. 20-25)

$11.99

$

Usually ships in 3-6 days

0

20

Troy-Bilt 731-11027-1

HANDLE (LH)

$6.99

$

Usually ships in 3-6 days

0

21

Troy-Bilt 753-05007

TRIGGER SPRING

$5.49

$

In Stock, only 2 left!

0

22

Troy-Bilt 791-182405

SW, MOMENTARY ON/O

$10.99

$

In Stock, Qty 12

0

23

Troy-Bilt 731-10776A-1

HANDLE ASSEMBLY (RH)

$3.99

$

Usually ships in 3-6 days

0

24

Troy-Bilt 731-09987-10

TRIGGER

$3.49

$

Usually ships in 3-6 days

0

25

Troy-Bilt 710-04194

SCREW 8-16 x 3/4

$4.49

$

In Stock, Qty 20+

0

26

Troy-Bilt 841-014061S

IMPELLER HOUSING (RH)

$30.99

$

Usually ships in 3-6 days

0

27

Troy-Bilt 710-06341

SCREW 10/32

$3.49

$

In Stock, only 2 left!

0

28

Troy-Bilt 753-08491

IMPELLER ASSEMBLY

$7.99

$

In Stock, Qty 20+

0

29

Troy-Bilt 736-05080

FLAT WASHER

$3.49

$

Usually ships in 3-6 days

0

30

Troy-Bilt 736-04110A

LOCK WASHER

$5.49

$

Usually ships in 3-6 days

0

31

Troy-Bilt 712-04137

NUT 3/8-24

$6.99

$

In Stock, only 1 left!

0

32

Troy-Bilt 753-08533

IMPELLER HOUSING ASSEMBLY (LH)

Note: (Incl. 25)

$11.99

$

Usually ships in 3-6 days

0

33

Troy-Bilt 731-10598

TUBE UPPER

$7.49

$

Usually ships in 3-6 days

0

34

Troy-Bilt 731-10604

NOZZLE

$5.49

$

In Stock, only 2 left!

0

35

Troy-Bilt 753-08500

FUEL TANK ASSEMBLY

Note: (Incl. 36 & 37)

$21.99

$

Usually ships in 3-6 days

0

36

Troy-Bilt 791-182366

NUT, TINNERMAN U-T

$5.99

$

In Stock, only 1 left!

0

37

Troy-Bilt 791-181930

SCREW:10-6 x .75

$6.99

$

In Stock, only 1 left!

0

38

Troy-Bilt 753-08494

INTAKE COVER

Note: (Incl. 25)

$4.99

$

In Stock, only 1 left!

0

39

Troy-Bilt 750-06367

SPACER

$3.49

$

Usually ships in 3-6 days

0

40

Troy-Bilt 753-08496

ENGINE ADAPTER

Note: (Incl. 27)

$7.49

$

Usually ships in 3-6 days

0

41

Troy-Bilt 753-08510

ENGINE COVER

Note: (Incl. 25)

$22.99

$

Usually ships in 3-6 days

0
