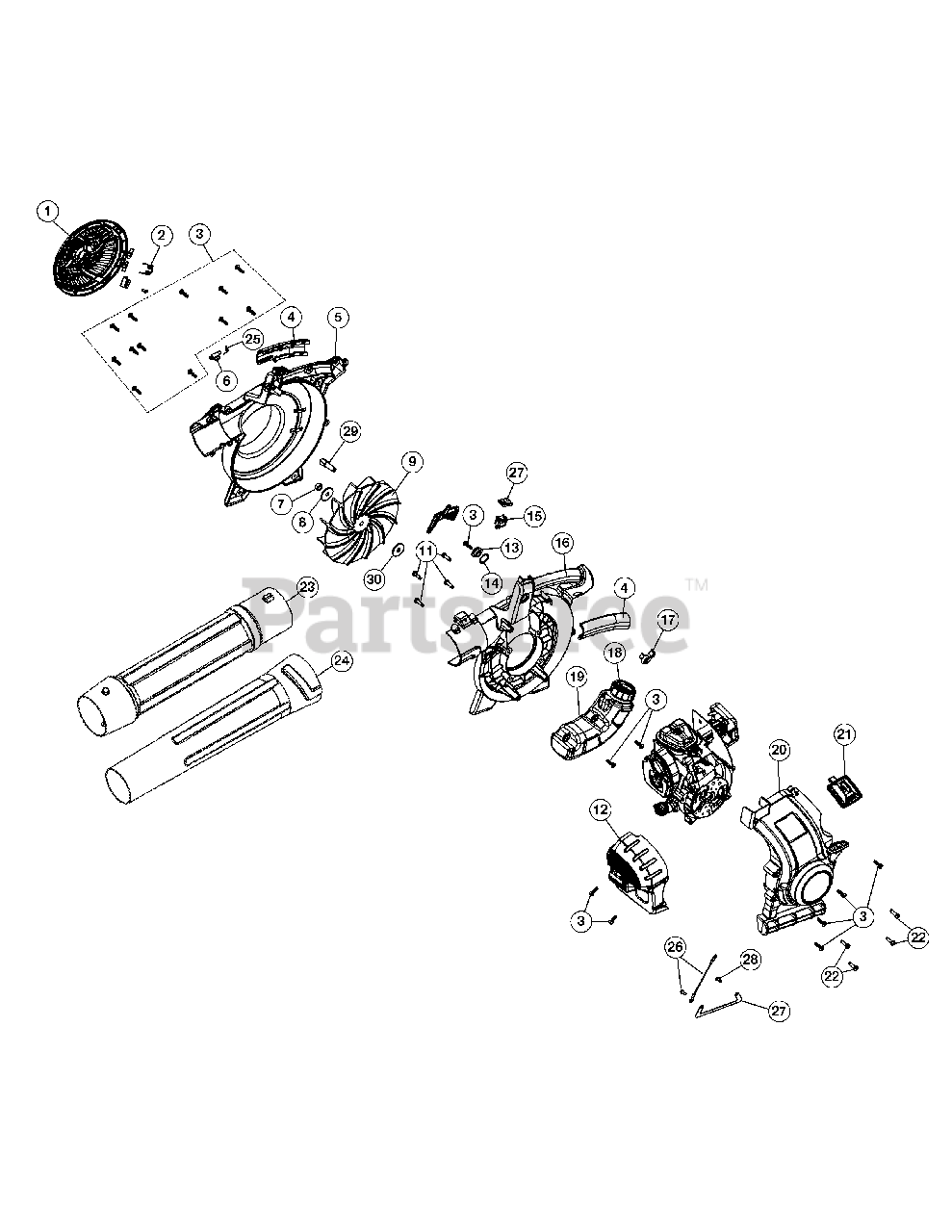

TB 4 HB EC (41BS4ESG066) - Troy-Bilt Handheld Blower General Assembly Parts Diagram

Handheld Blower

General Assembly Parts Diagram

  • Title

1

Troy-Bilt 753-06719

Intake Cover Assembly

$

$

Not available

2

Troy-Bilt 753-05918

Spring

$2.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 710-04194

Screw

$4.49

$

In Stock, Qty 20+

0

4

Troy-Bilt 753-05919

Handle Grips

$6.49

$

Usually ships in 3-6 days

0

5

Troy-Bilt 753-06679

Impeller Housing (Incl. 4)

$20.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 753-05926

Latch Tube

$2.99

$

In Stock, only 1 left!

0

7

Troy-Bilt 753-05927

Nut

$3.49

$

In Stock, only 3 left!

0

8

Troy-Bilt 753-06444

Washer

$2.99

$

In Stock, Qty 5

0

9

Troy-Bilt 753-05929

Impeller

$13.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 753-05930

Throttle Trigger

$

$

Not available

11

Troy-Bilt 791-181003

Screw
(Superseded to 9052-1)

$

$

Not available

12

Troy-Bilt 753-05931

Muffler Cover (Incl. 3)

$5.99

$

Usually ships in 3-6 days

0

13

Troy-Bilt 753-05924

Inner Trigger Lock

$2.99

$

Usually ships in 3-6 days

0

14

Troy-Bilt 753-05925

Wavey Washer
(Superseded to 736-04353)

$6.49

$

Usually ships in 3-6 days

0

15

Troy-Bilt 791-182405

Switch

$10.99

$

In Stock, Qty 12

0

16

Troy-Bilt 753-05921

Impeller Housing (Incl. 4)
(Superseded to 753-06693)

$17.99

$

In Stock, only 1 left!

0

17

Troy-Bilt 753-05932

Outer Trigger Lock

$2.99

$

Usually ships in 3-6 days

0

18

Troy-Bilt 753-05289

Fuel Cap

$22.99

$

In Stock, Qty 8

0

19

Troy-Bilt 753-05933

Fuel Tank Assembly (Incl. 18)

$25.99

$

In Stock, Qty 8

0

20

Troy-Bilt 753-05941

Engine Cover Assembly (Incl. 3, 21 & 22)

$

$

Not available

21

Troy-Bilt 753-05935

Spark Plug Cover

$2.99

$

In Stock, only 1 left!

0

22

Troy-Bilt 710-04604

Screw

$4.49

$

In Stock, Qty 20+

0

23

Troy-Bilt 753-05936

Upper Tube

$19.99

$

In Stock, only 1 left!

0

24

Troy-Bilt 753-05937

Lower Tube

$18.99

$

Usually ships in 3-6 days

0

25

Troy-Bilt 753-05939

Latch Spring

$2.99

$

In Stock, Qty 9

0

26

Troy-Bilt 753-05964

Wire Ground

$3.49

$

Usually ships in 3-6 days

0

27

Troy-Bilt 753-05965

Strap Ground

$3.49

$

Usually ships in 3-6 days

0

28

Troy-Bilt 753-1202

Screw
(Superseded to 1755)

$3.99

$

Usually ships in 3-6 days

0

29

Troy-Bilt 753-06700

Adapter

$5.49

$

In Stock, Qty 6

0

30

Troy-Bilt 753-06806

Spacer

$3.49

$

In Stock, Qty 6

0
