TB 370 XP (12AKP6BC711) - Troy-Bilt Walk-Behind Mower (2018) Deck Assembly Parts Diagram

Walk-Behind Mower

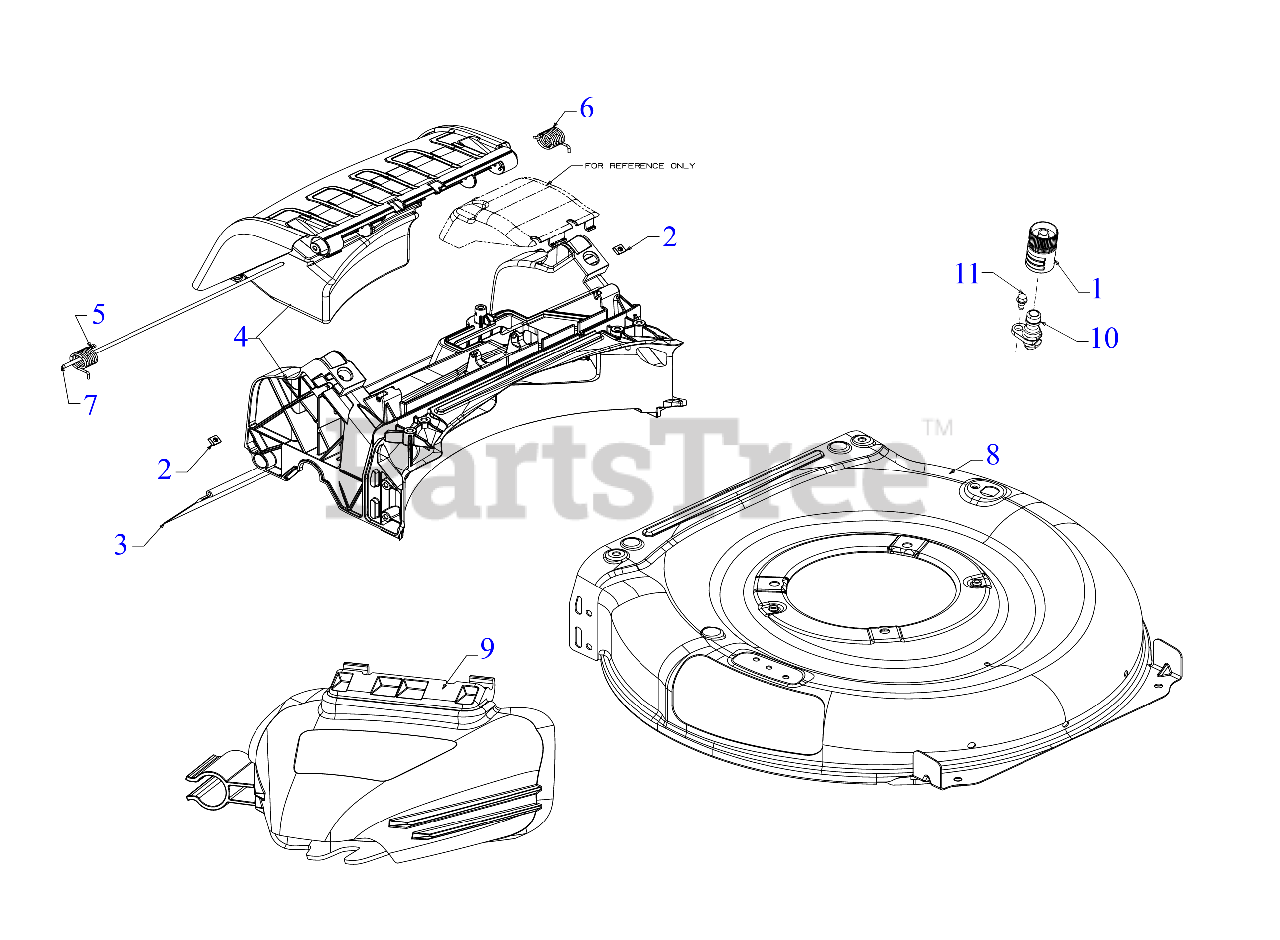

Deck Assembly Parts Diagram

  • Title

1

Troy-Bilt 921-04041

WATER NOZZLE ADAPTER

$23.99

$

In Stock, Qty 20+

0

2

Troy-Bilt 712-05020

SQUARE LOCK NUT 1/4X20

$9.49

$

Usually ships in 3-6 days

0

3

Troy-Bilt 731-07203

TRAILSHIELD

$10.99

$

In Stock, only 2 left!

0

4

Troy-Bilt 631-05643

REAR BAFFLE ASSEMBLY

$94.99

$

In Stock, only 1 left!

0

5

Troy-Bilt 732-05061A

TORSION SPRING (RH)
(Superseded to 732-05061B)

$5.49

$

In Stock, only 1 left!

0

6

Troy-Bilt 732-05062A

TORSION SPRING (LH)

$5.49

$

In Stock, only 1 left!

0

7

Troy-Bilt 747-07046

REAR DOOR PIVOT ROD

$

$

Not available

8

Troy-Bilt 687-05069B

21" DECK ASSEMBLY

Note: (Choose Color When Ordering)

Variations

Troy-Bilt 687-05069B-4021

Deck Caster, 21" Yellow - CUB YELLOW 2 (4021)

$137.99

$

Usually ships in 3-6 days

0

Troy-Bilt 687-05069B-0638

Deck Caster, 21" Red - MTD/TROY-BILT RED (0638)

$137.99

$

Usually ships in 3-6 days

0

Troy-Bilt 687-05069B-0691

DECK-CASTER 21" 3 - BLACK JACK (0691)

$137.99

$

Usually ships in 3-6 days

0

$111.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 731-08945

MOWER BLOWER CHUTE

$25.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt 731-07487

DECK WASH NOZZLE

$4.49

$

In Stock, only 1 left!

0

11

Troy-Bilt 738-04502

SHOULDER SCREW 1/4-20 x .50

$4.49

$

In Stock, Qty 20+

0

Troy-Bilt 731-09208

MULCH PLUG

Note: (Not Shown)

$15.99

$

In Stock, only 1 left!

0
