TB 370 XP (12AKD6BZ711) - Troy-Bilt Walk-Behind Mower (2017) Deck Assembly Parts Diagram

Walk-Behind Mower

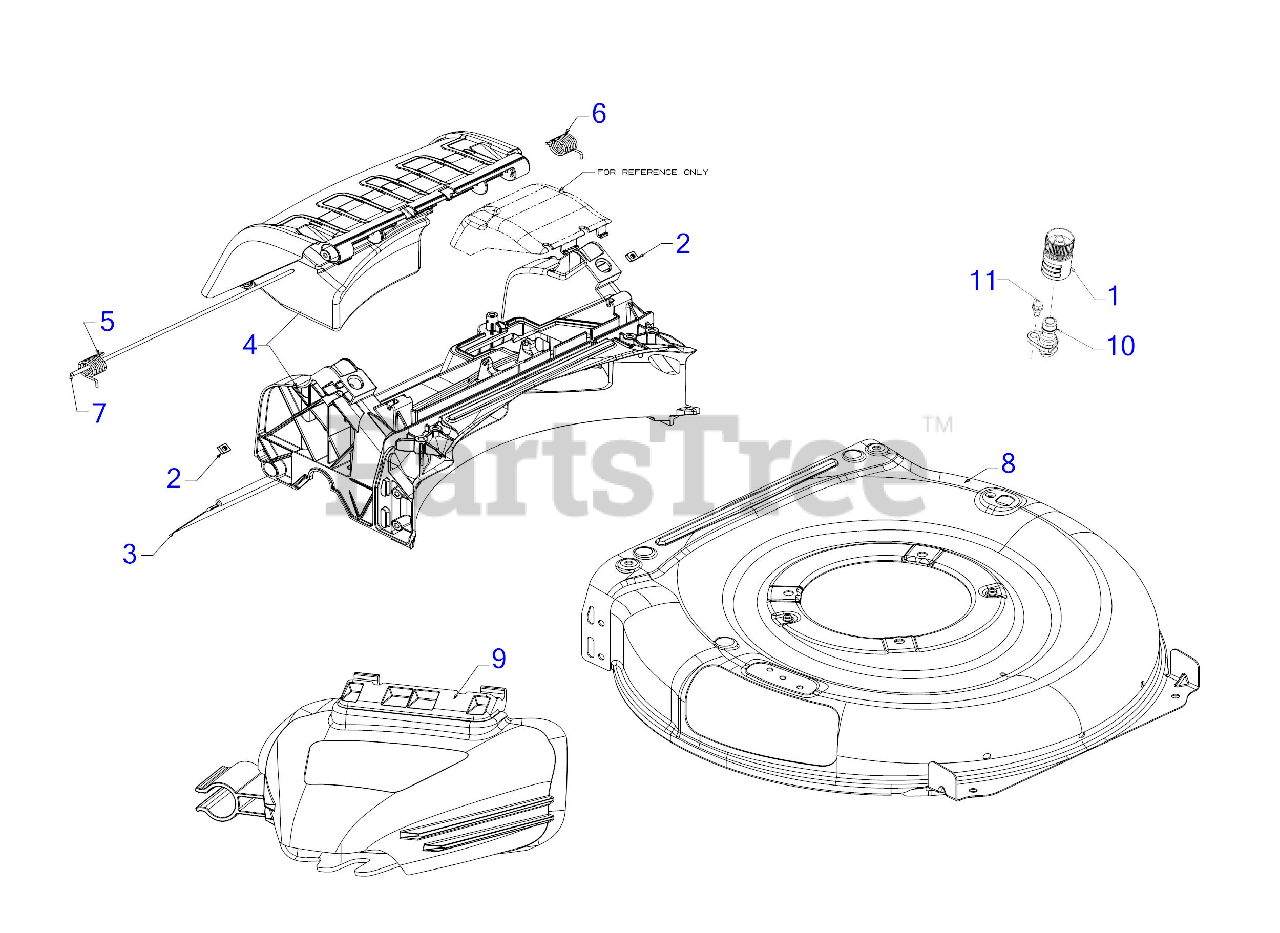

Deck Assembly Parts Diagram

  • Title
1

Troy-Bilt 921-04041

WATER NOZZLE

$23.99

$

In Stock, Qty 20+

0

2

Troy-Bilt 712-04222

SQUARE NUT 1/4-20

$5.49

$

In Stock, only 2 left!

0

3

Troy-Bilt 731-07203

TRAILSHIELD

$10.99

$

In Stock, Qty 6

0

4

Troy-Bilt 631-04514A

REAR BAG BAFFLE ASSEMBLY

$83.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 732-05061A

TORSION SPRING (RH)
(Superseded to 732-05061B)

$5.49

$

In Stock, only 1 left!

0

6

Troy-Bilt 732-05062A

TORSION SPRING (LH)

$5.49

$

In Stock, only 1 left!

0

7

Troy-Bilt 747-05183

REAR DOOR PIVOT ROD

$3.99

$

In Stock, Qty 11

0

8

Troy-Bilt 687-05069B-4033

21" DECK ASSEMBLY

$

$

Currently unavailable

9

Troy-Bilt 731-08945

MOWER BLOWER CHUTE

$25.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt 731-07487

DECK WASH NOZZLE

$4.49

$

In Stock, only 1 left!

0

11

Troy-Bilt 738-04502

SHOULDER SCREW 1/4-20 x .50

$4.49

$

In Stock, Qty 20+

0
