TB 370 XP (12AKD6BZ711) - Troy-Bilt Walk-Behind Mower (2016) Deck Assembly Parts Diagram

Walk-Behind Mower

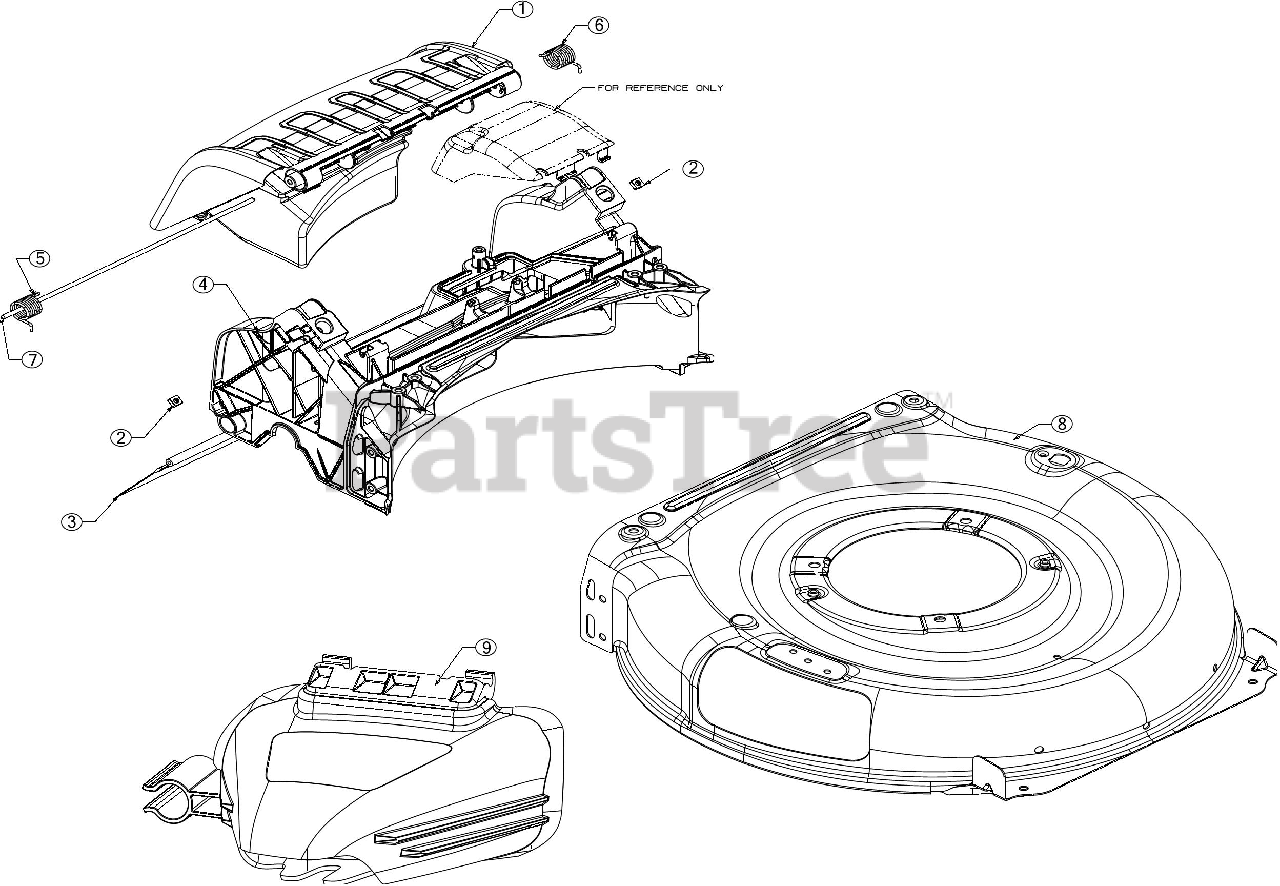

Deck Assembly Parts Diagram

  • Title
1

N/A

N/A

Note: (Not Serviceable; Order Part Number 631-04514A)

$

$

Not available

2

Troy-Bilt 712-04222

SQUARE NUT 1/4-20

$5.49

$

In Stock, only 2 left!

0

3

Troy-Bilt 731-07203

TRAILSHIELD

$10.99

$

In Stock, Qty 6

0

4

N/A

N/A

Note: (Not Serviceable; Order Part Number 631-04514A)

$

$

Not available

5

Troy-Bilt 732-05061A

TORSION SPRING (RH)
(Superseded to 732-05061B)

$5.49

$

In Stock, only 1 left!

0

6

Troy-Bilt 732-05062A

TORSION SPRING (LH)

$5.49

$

In Stock, only 1 left!

0

7

Troy-Bilt 747-05183

REAR DOOR PIVOT ROD

$3.99

$

In Stock, Qty 11

0

8

Troy-Bilt 687-05069B-4033

21" DECK ASSEMBLY

$

$

Currently unavailable

8

Troy-Bilt 787-02002B-4033

21" DECK (3N1)

$143.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 731-08945

MOWER BLOWER CHUTE

$25.99

$

Usually ships in 3-6 days

0
