TB 370 XP (12AKD6BZ711) - Troy-Bilt Walk-Behind Mower (2016) Axle Assembly Parts Diagram

Walk-Behind Mower

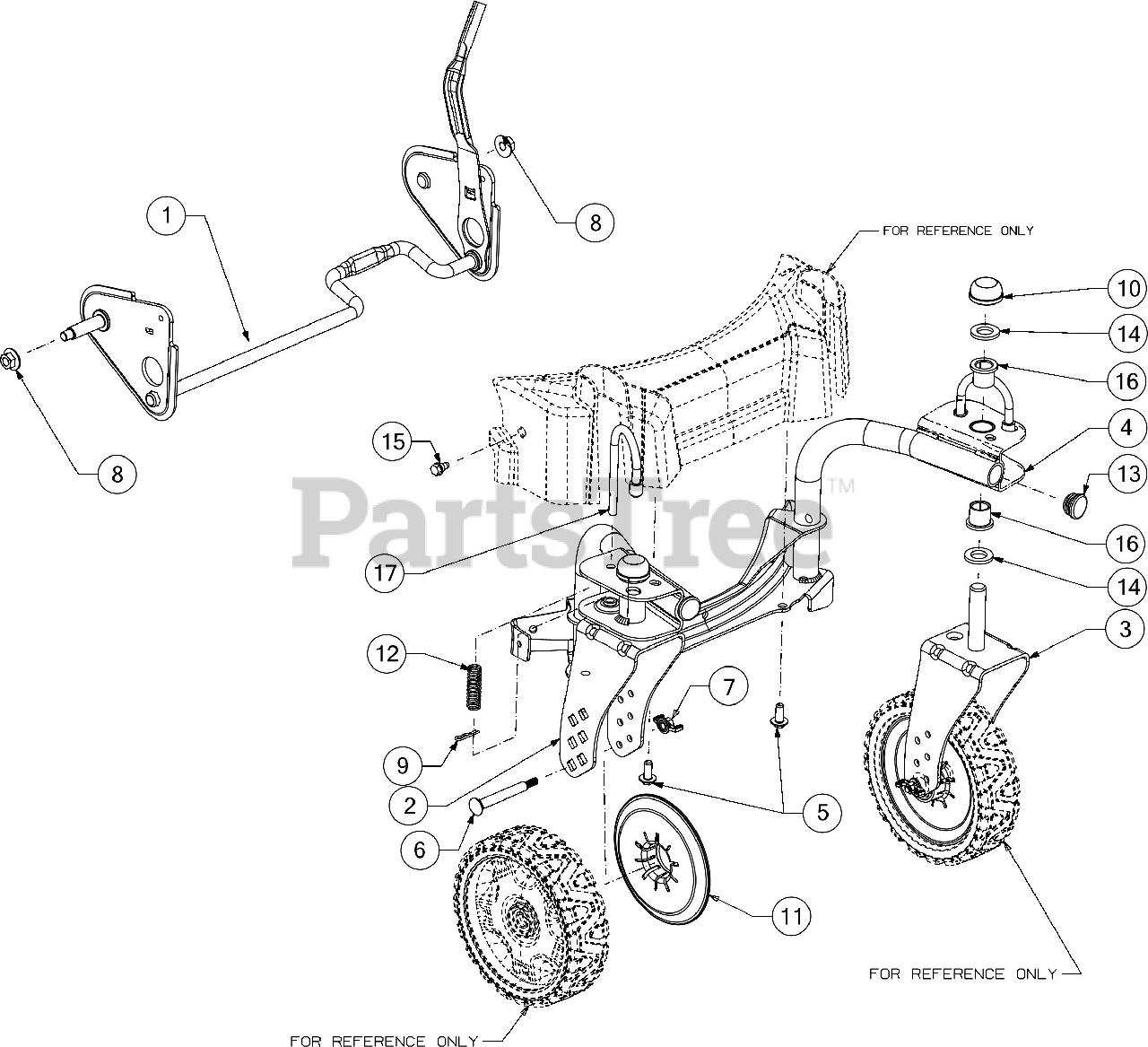

Axle Assembly Parts Diagram

  • Title

1

Troy-Bilt 911-04192

HEIGHT AXLE ASSEMBLY
(Superseded to 611-04192A)

$57.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 682-9024-4033

CASTER BRACKET ASSEMBLY (RH)
(Superseded to 682-9024A-4033)

$76.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 682-9026-4033

WHEEL BRACKET ASSEMBLY (LH)
(Superseded to 682-9026A-4033)

$79.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 687-05033-4033

CASTER BRACKET ASSEMBLY

$138.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 710-04995A

SCREW 5/16-14 x .750

$4.49

$

In Stock, Qty 20+

0

6

Troy-Bilt 911-1146

CASTER AXLE

$13.99

$

In Stock, Qty 11

0

7

Troy-Bilt 712-0397A

WING NUT

$3.99

$

In Stock, Qty 20+

0

8

Troy-Bilt 712-04217

FLANGE LOCK NUT

$4.49

$

In Stock, Qty 20+

0

9

Troy-Bilt 914-0104

COTTER PIN .072 DIA
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

10

Troy-Bilt 726-0214

PUSH CAP

$10.99

$

In Stock, Qty 5

0

11

Troy-Bilt 731-09479

DUST COVER 7"

$4.49

$

In Stock, only 4 left!

0

12

Troy-Bilt 932-0306A

COMPRESSION SPRING

$8.49

$

In Stock, only 2 left!

0

13

Troy-Bilt 735-0246A

END PLUG

$5.99

$

In Stock, only 2 left!

0

14

Troy-Bilt 736-0366

FLAT WASHER

$4.49

$

In Stock, Qty 20+

0

15

Troy-Bilt 738-04502

SHOULDER SCREW 1/4-20 x .50

$4.49

$

In Stock, Qty 20+

0

16

Troy-Bilt 741-0685

BEARING:FLANGE .631 ID

$4.49

$

In Stock, Qty 20+

0

17

Troy-Bilt 747-0924

LOCK PIN

$20.99

$

Usually ships in 3-6 days

0
